61 31 104 Removing and installing/replacing shifters for SMG transmission (both)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove steering wheel retaining plate (sports steering wheel), refer to 61 31 220 REMOVING AND INSTALLING/REPLACING MULTIFUNCTION STEERING WHEEL SWITCH (SPORTS STEERING WHEEL) .
NOTE:

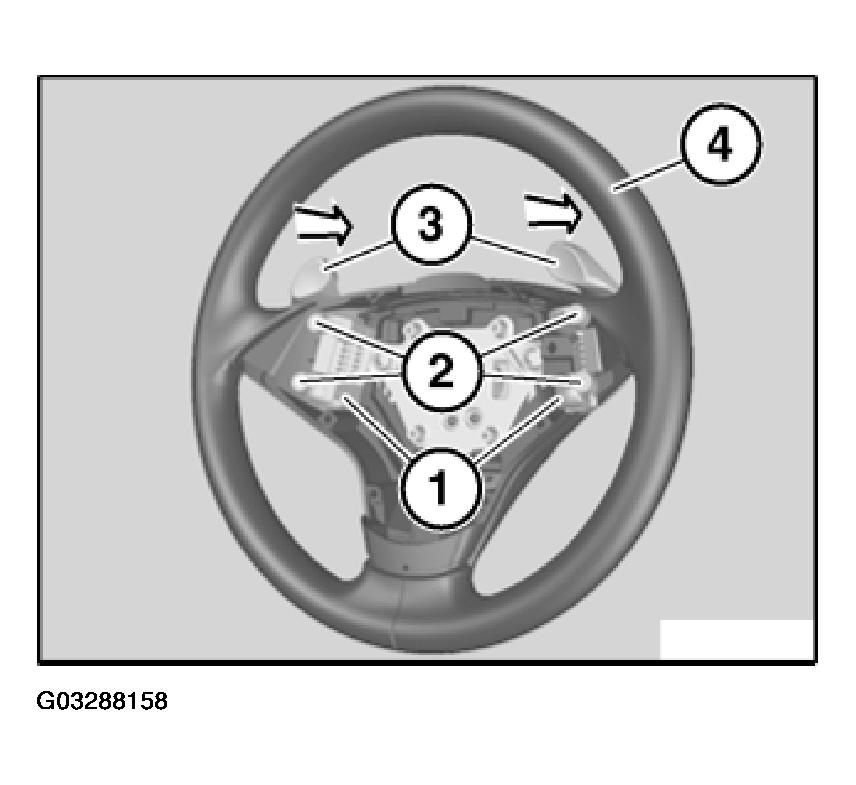

Illustrations show sports steering wheel (4) removed.
Disconnect plug connections (1).
Loosen screws (2).
Remove both shifters for SMG transmission (3) in direction of arrow from sports steering wheel (4).
Installation:
Make sure electrical leads are correctly routed.
