61 31 103 Removing and installing/replacing left or right shift paddle for SMG transmission

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove decorative trim for multifunction steering wheel switch .

Disconnect plug connection (1). Release screws (2). Remove shift paddle for SMG transmission (3) from steering wheel (4).

Installation: Make sure wiring harness is routed exactly. Make sure shift paddle for SMG transmission (3) is correctly seated on steering wheel (4).

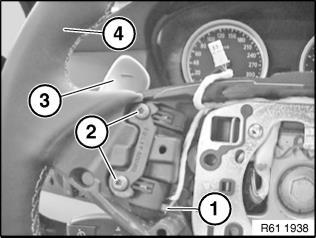

Fig 1: Removing Shift Paddle For SMG Transmission

Courtesy of BMW OF NORTH AMERICA, INC.
