61 31 052 Removing and installing/replacing center console switch cluster

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove trim for storage tray, refer to 51 16 212 REMOVING AND INSTALLING TRIM FOR CENTER CONSOLE .

Release screws (1).

Unclip center console switch cluster (2) in direction of arrow from trim for storage tray (3) and remove.

Installation:

Make sure center console switch cluster (2) engages correctly in trim for storage tray (3).

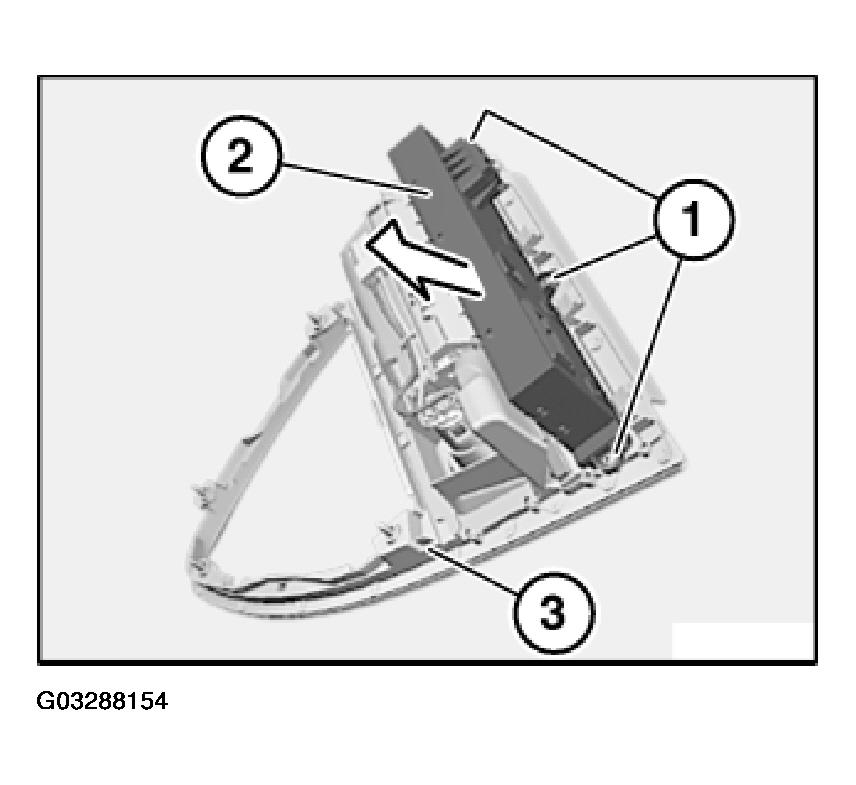

Fig 1: Removing Center Console Switch Cluster From Trim For Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding, refer to DIAGNOSIS PROGRAMMING/CODING .
