61 31 011 Removing and installing/replacing volute spring cassette

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove fixture for steering column stalk

Unlock catches (1) and remove volute spring cassette (2) in direction of arrow from fixture for steering column switch (3).

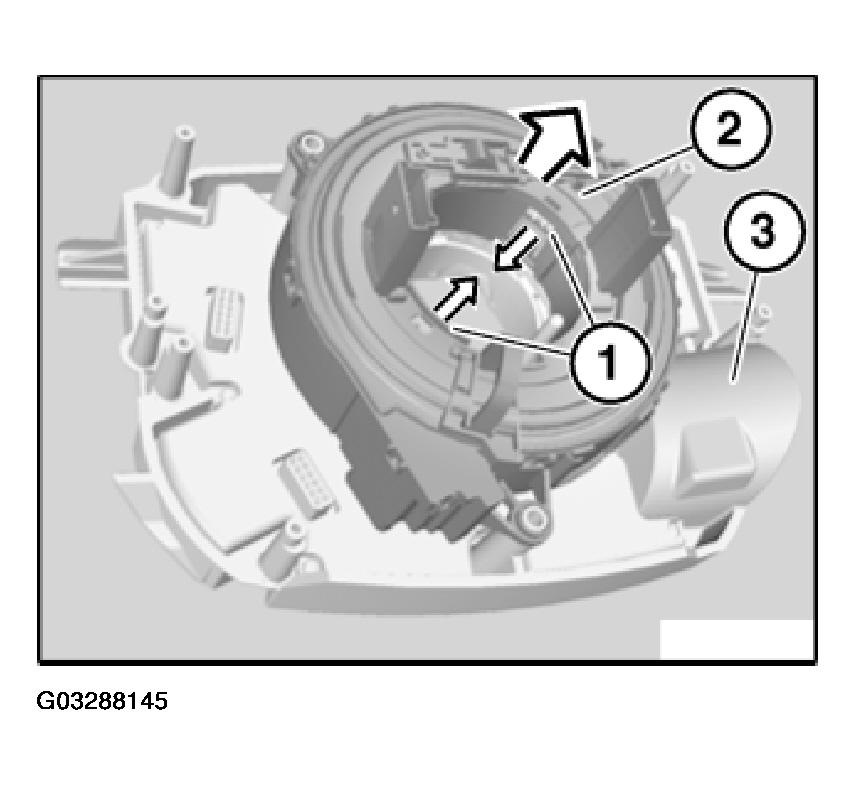

Fig 1: Unlocking Catches And Removing Volute Spring Cassette From Fixture For Steering Column Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seat volute spring cassette exactly on plug connections (1), guide (2) and mounts (3).

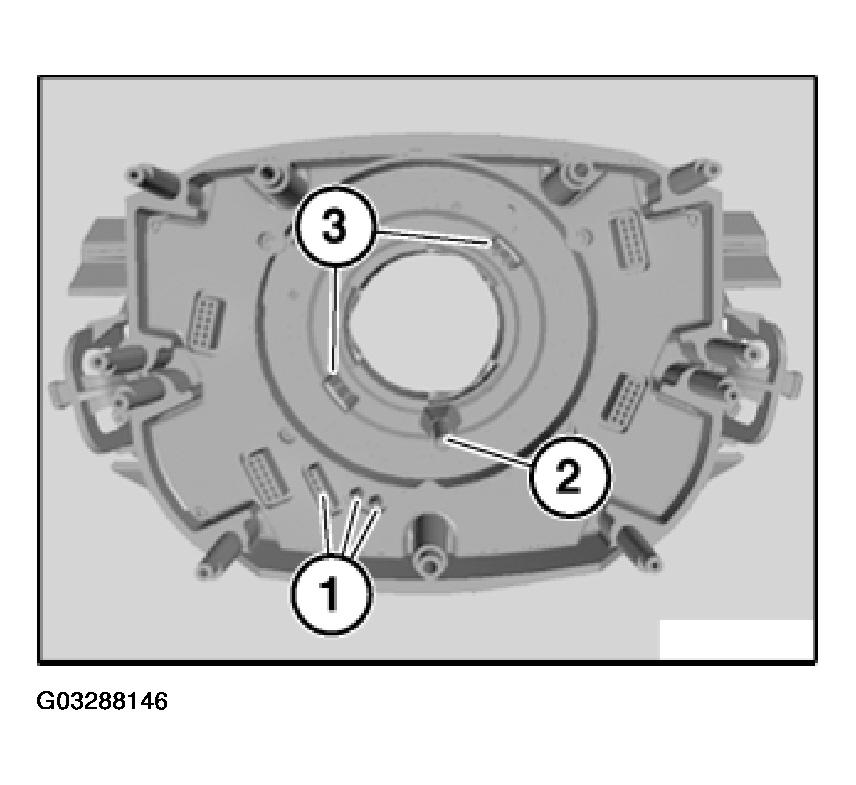

Fig 2: Seating Volute Spring Cassette Exactly On Plug Connections, Guide And Mounts

Courtesy of BMW OF NORTH AMERICA, INC.
