Cutting optical fibre to length

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The cutting blade must be replaced prior to each cutting of the optical fibre.

Pull pin (1) in direction of arrow.

Fold up blade retaining link (2) in direction of arrow.

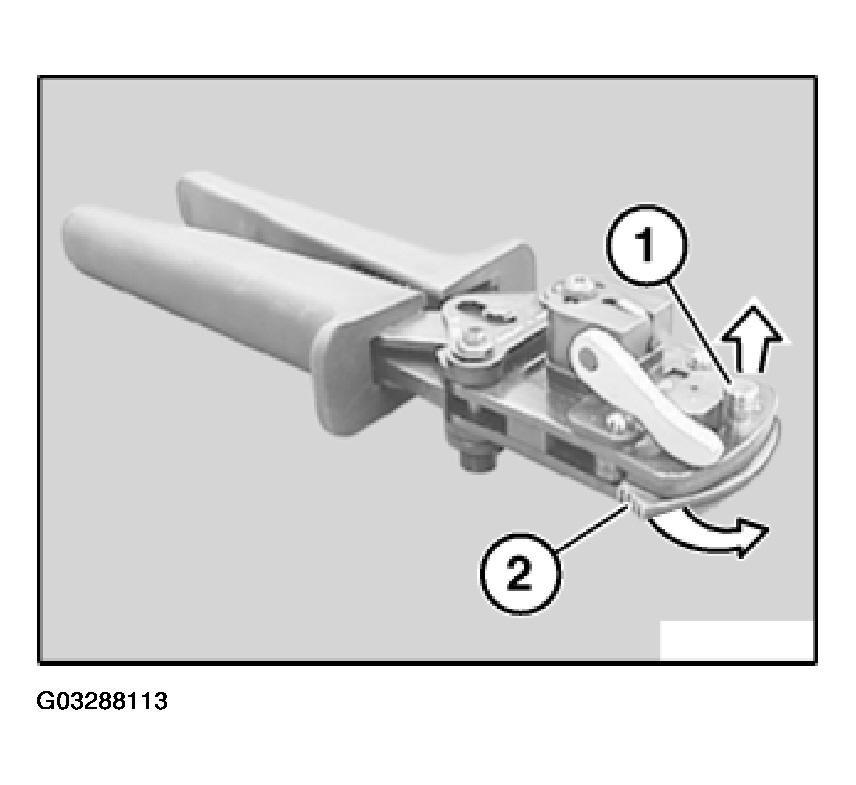

Fig 1: Folding Up Blade Retaining Link
G03288113Courtesy of BMW OF NORTH AMERICA, INC.
WARNING: Risk of injury when changing the blade.

Remove blade (1) and replace.

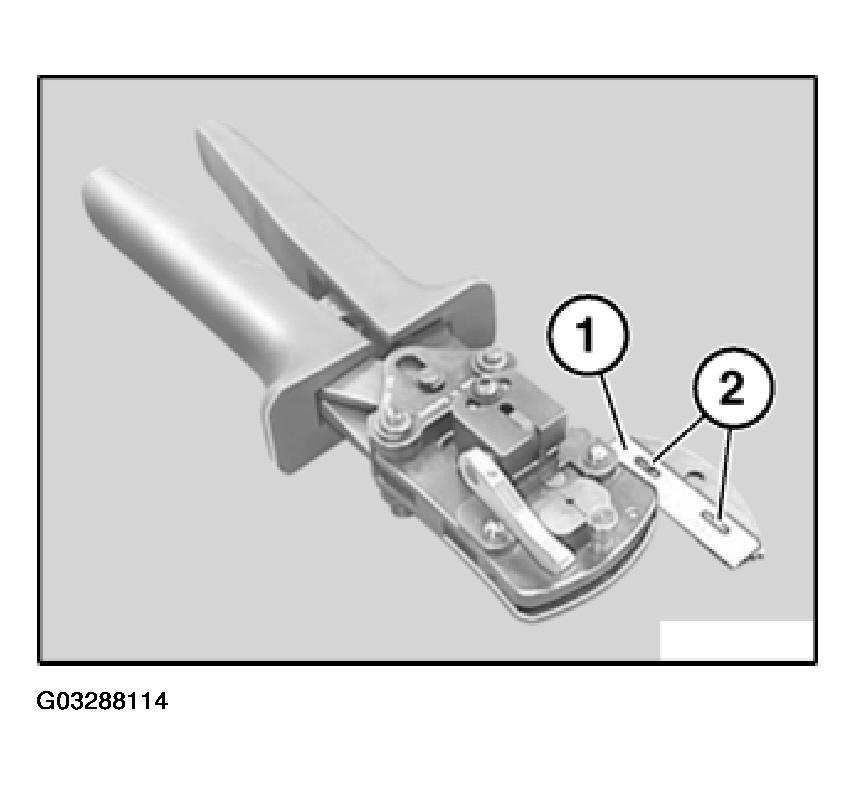

Fig 2: Removing Blade And Replacing
G03288114Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure blade (1) is correctly seated on locating points (2).

Open pliers (3).

Slide optical fibre (1) into cutting device (2) until insulation of optical fibre (1) butts against clamping device.

Close pliers (3) fully and keep closed.

Remove optical fibre (1).

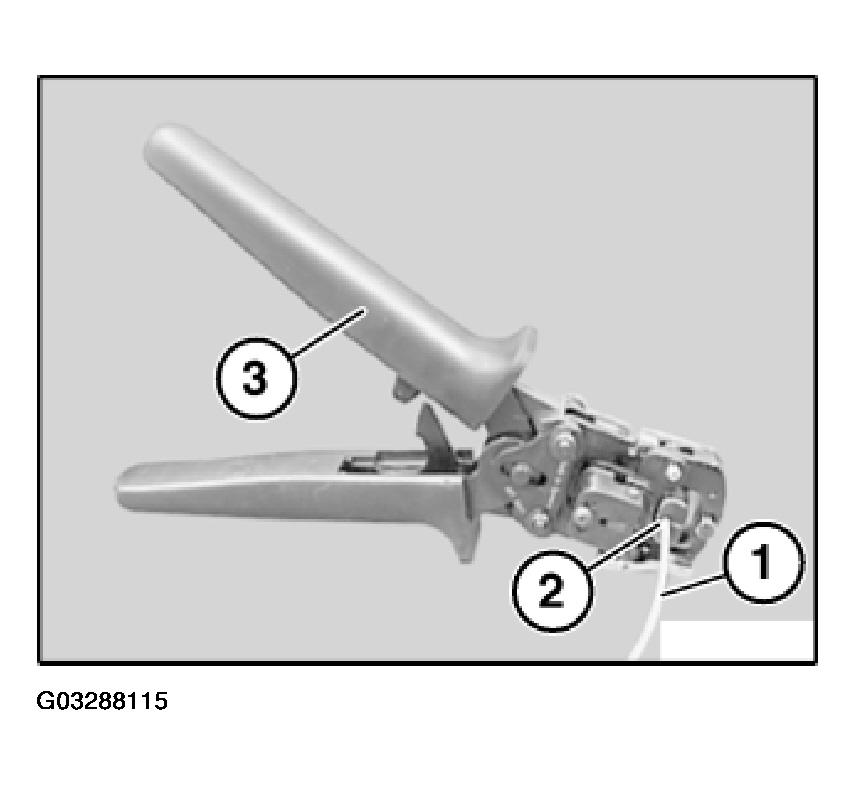

Fig 3: Removing Optical Fibre
G03288115Courtesy of BMW OF NORTH AMERICA, INC.
