61 67 045 Removing and installing/replacing spray nozzles for left or right headlight cleaning system

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim, refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

Press lock (2) and detach hose connection (1).

Press catch together in direction of arrow and remove spray nozzle for headlight cleaning system (3) towards bottom.

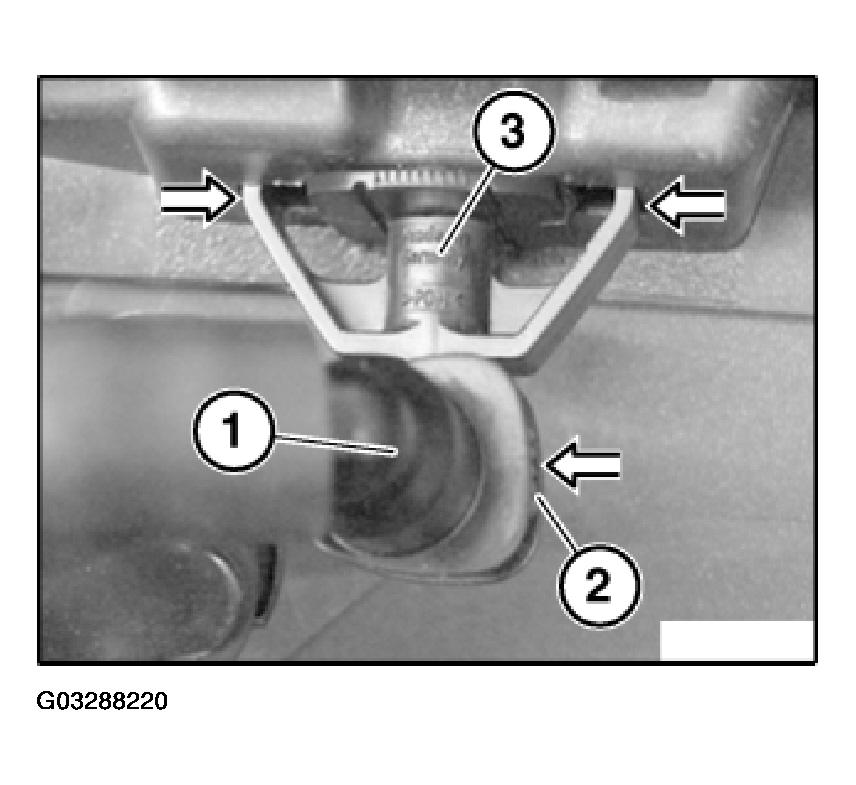

Fig 1: Pressing Lock And Detaching Hose Connection

G03288220

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catches (1) of trim (3) through punched holes (2).

Remove trim (3) from above.

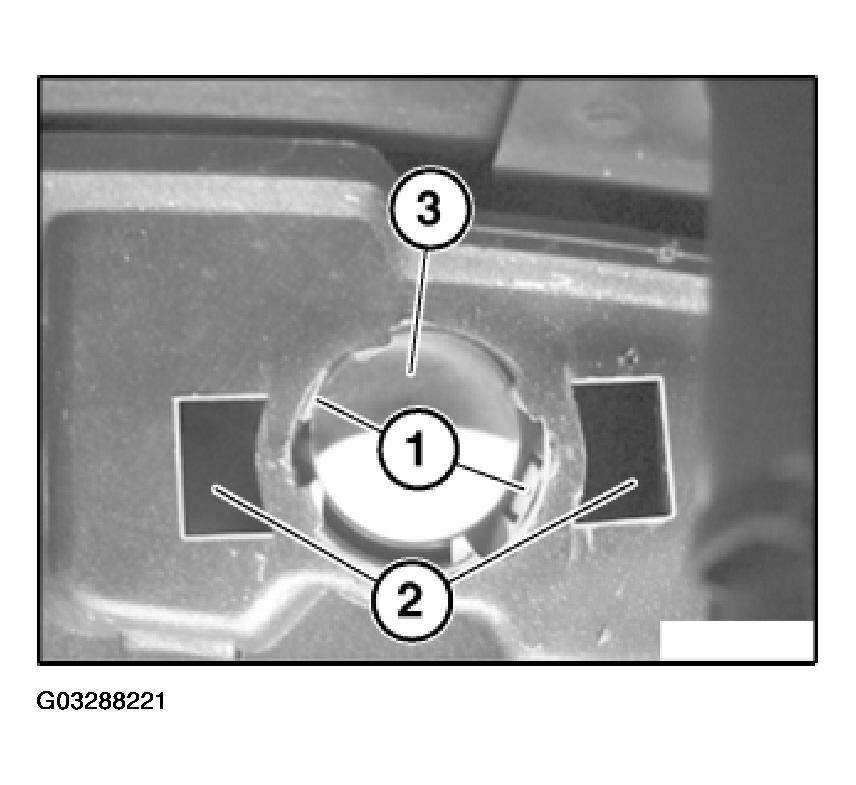

Fig 2: Unlocking Catches Of Trim Through Punched Holes

G03288221

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of spray nozzle (1) must not be damaged or missing:

2 Sealing ring

3 Catch

Catches (3) of trim (4) must not be damaged or missing.

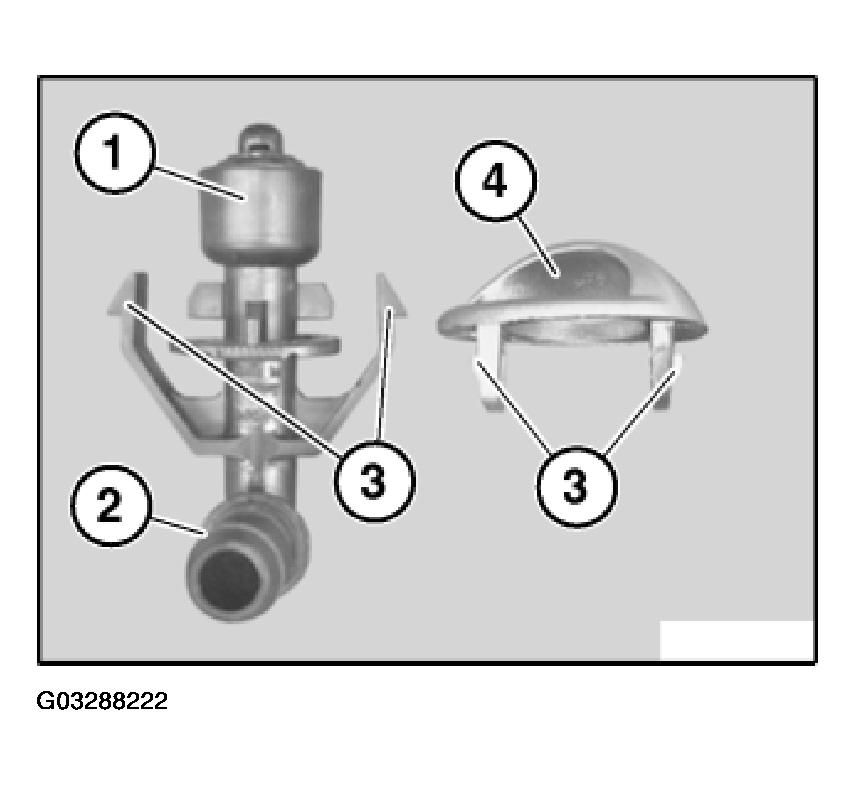

Fig 3: Identifying Sealing ring And Catch

G03288222

Courtesy of BMW OF NORTH AMERICA, INC.
