61 35 900 Removing and installing/replacing ring antenna of electronic immobilizer
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
NOTE:
For special tools, refer to BODY ELECTRICAL - SPECIAL TOOLS - 645CI (E63)
.
- 61 3 300
Necessary preliminary tasks:
- Remove top section of steering column casing, refer to 32 31 004 REMOVING AND INSTALLING / REPLACING UPPER SECTION OF STEERING COLUMN TRIM .

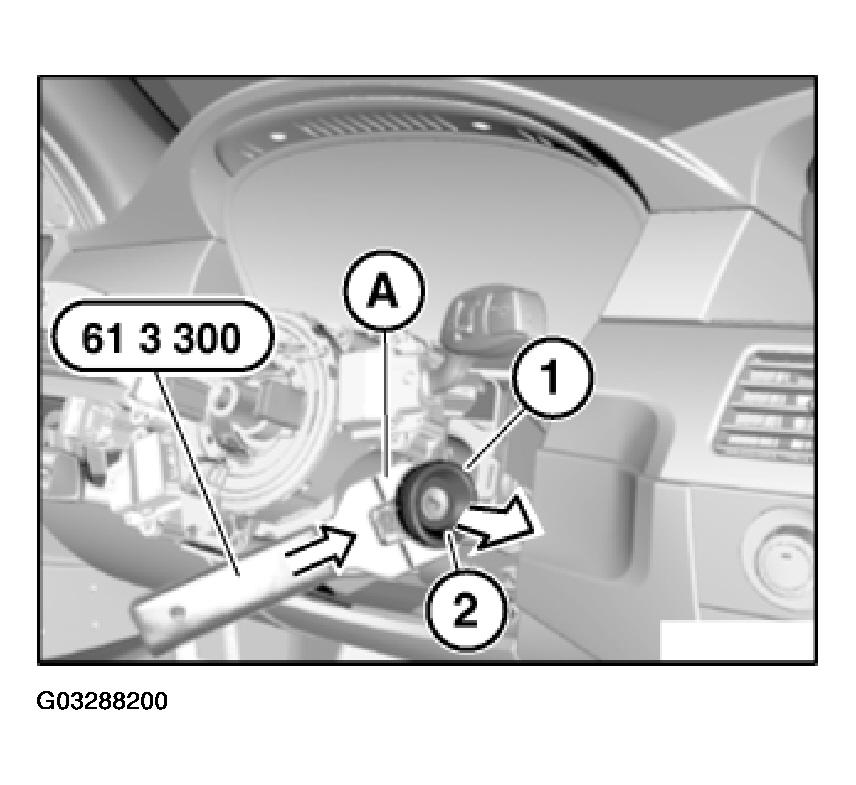

Disconnect plug connection (1).
Position special tool 61 3 300 as illustrated with flattened side (A) to ring antenna of electronic immobilizer (2).
Lever out ring antenna of electronic immobilizer (2) in direction of arrow and remove.
