61 35 714 Removing and installing/replacing electronic control unit for slide/tilt sunroof (panoramic glass sunroof)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
Necessary preliminary tasks:
- Remove trim for instrument panel at bottom right, refer to 51 45 181 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT TRIM FOR INSTRUMENT PANEL .

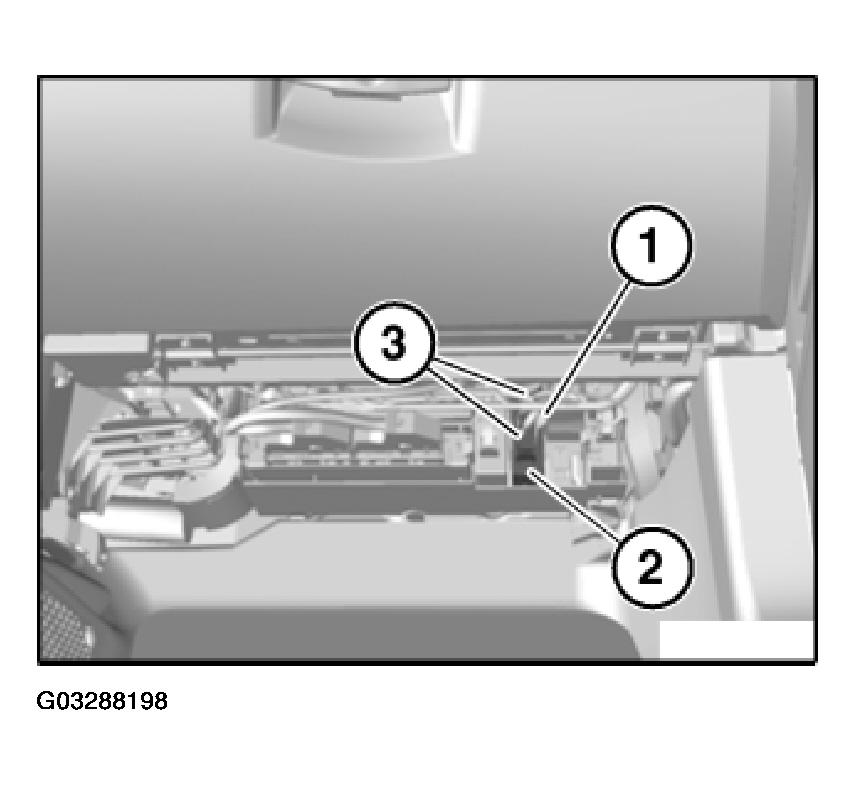

Open lock (1) and pull back control unit for slide/tilt sunroof (2).
Unlock and disconnect plug connections (3) and remove control unit for slide/tilt sunroof (2).
Installation:
- Initialize slide/tilt sunroof, refer to 54 0 ... NOTES ON PANORAMA GLASS ROOF (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
Replacement:
Carry out programming/coding, refer to DIAGNOSIS PROGRAMMING/CODING .
IMPORTANT:
There is a risk of permanent battery discharge if programming/coding is not carried out!
