61 12 067 Replacing Wiring Harness For Rear Bumper

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove luggage compartment wheel arch trim on left, refer to 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .
Remove rear bumper trim, refer to 51 12 156 REMOVING AND INSTALLING REAR BUMPER TRIM .

Unlock and disconnect plug connections (1) from ultrasonic converter.

Unlock and disconnect plug connections (2) on number/licence plate lights. Unlock and disconnect plug connections (3) from rear lights.

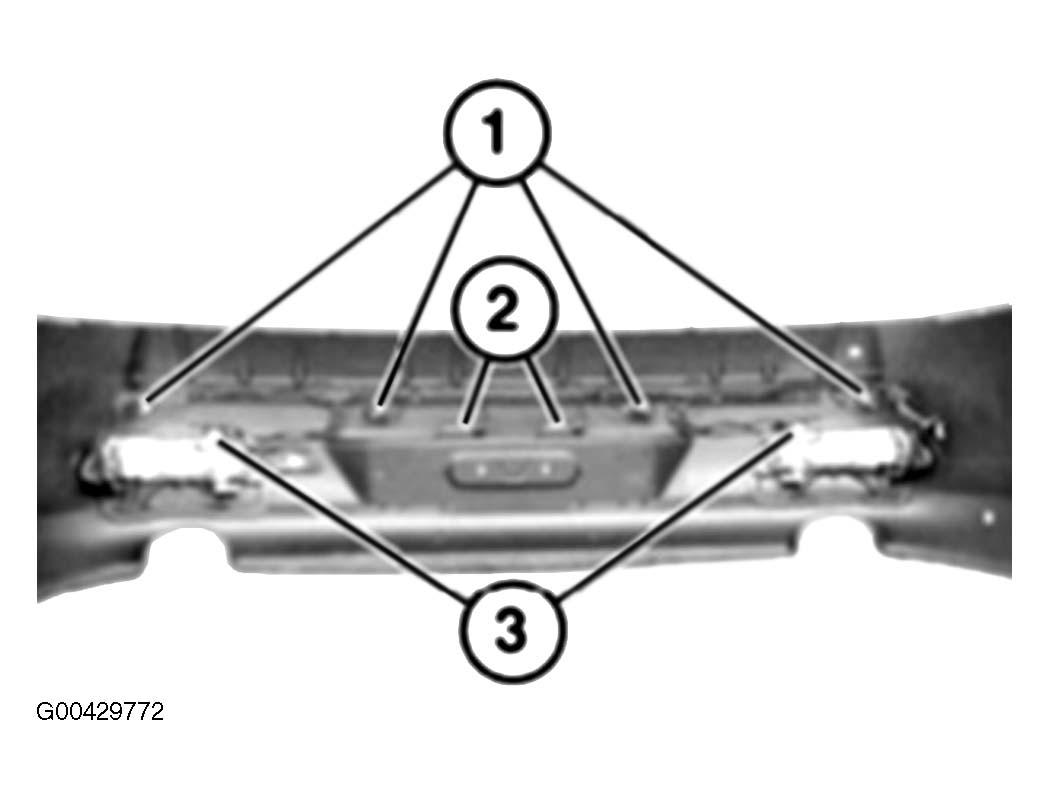

Fig 1: Replacing Wiring Harness For Rear Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure wiring harness is correctly laid.
