61 12 065 Replacing wiring harness for front bumper

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect plug connections (1) on ultrasonic transducer.

Unclip wiring harness (2) from bumper trim.

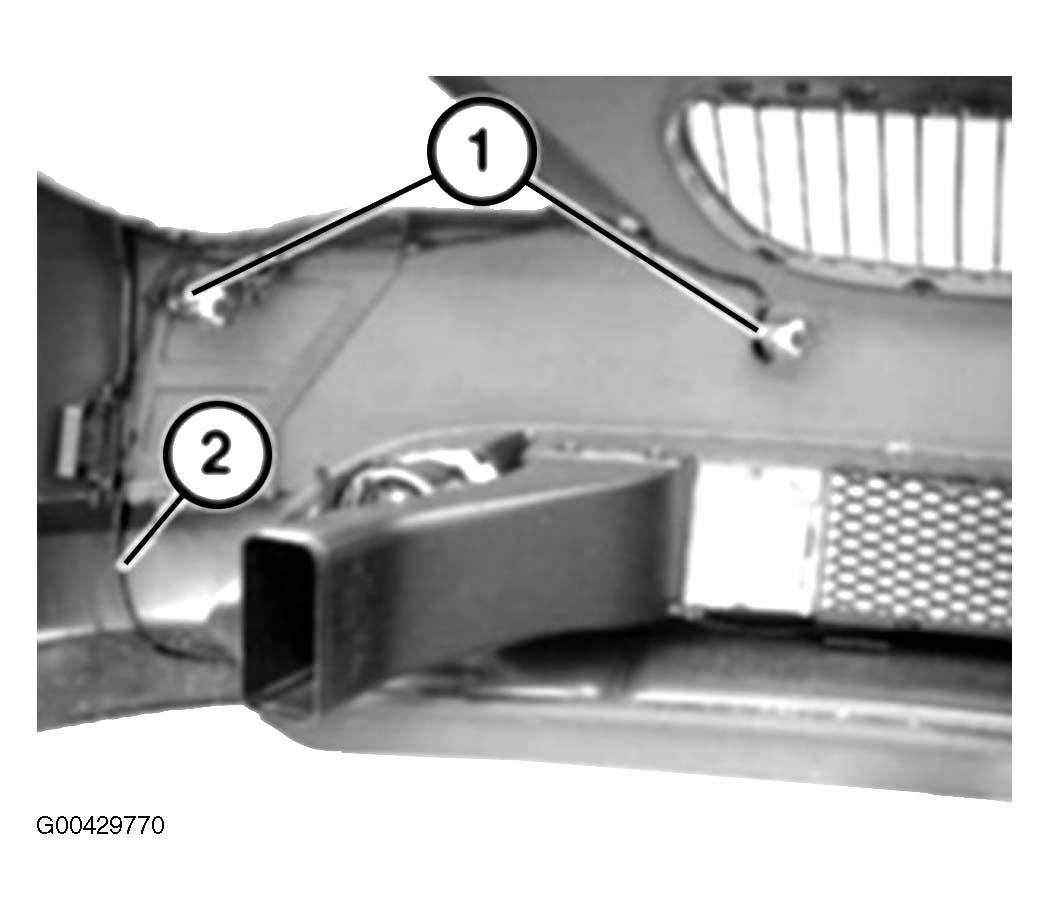

Fig 1: Disconnecting Plug Connections (1) On Ultrasonic Transducer

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) in direction of arrow from bumper trim.

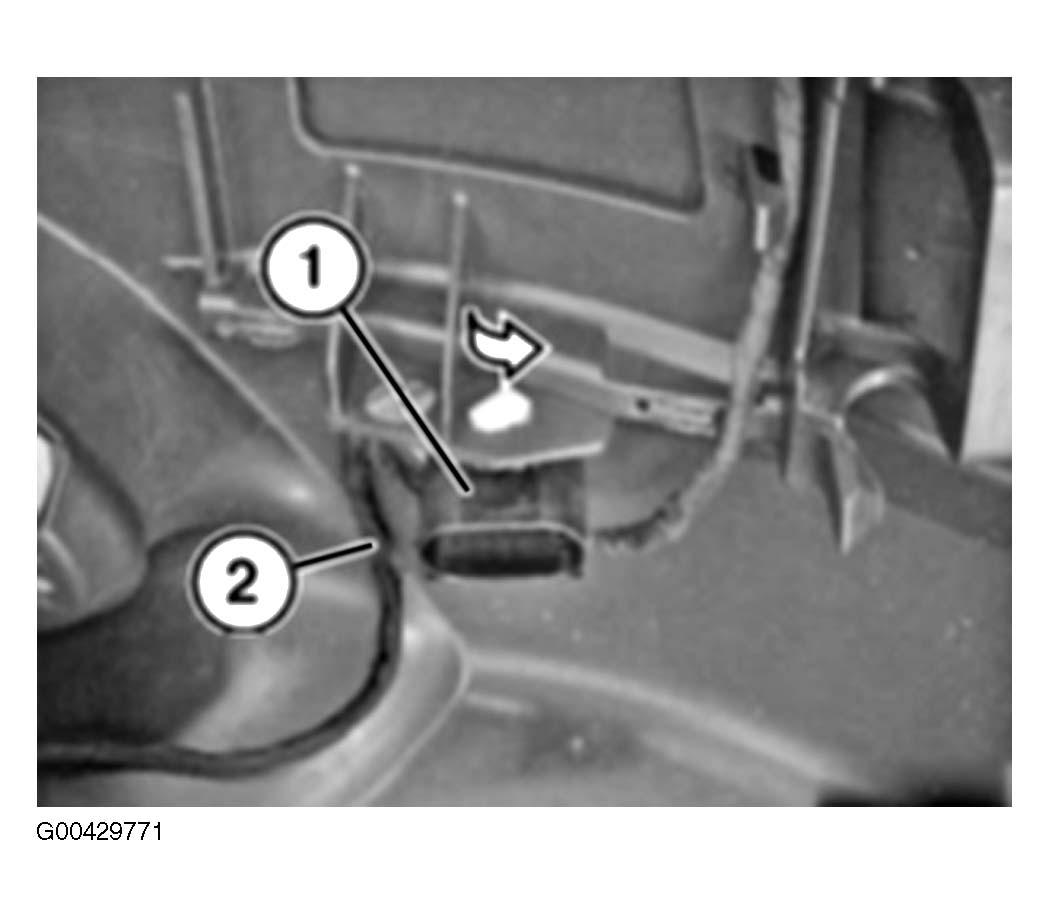

Fig 2: Unlock Plug (1) In Direction Of Arrow From Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure wiring harness (2) is correctly laid.
