54 10 155 Removing and installing/replacing rear floating roofliner

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front roofliner

IMPORTANT: Make sure that grease on the rails does not come into contact with the floating roofliner.

Move rear floating roofliner (1) towards front (close).

Loosen screws (2).

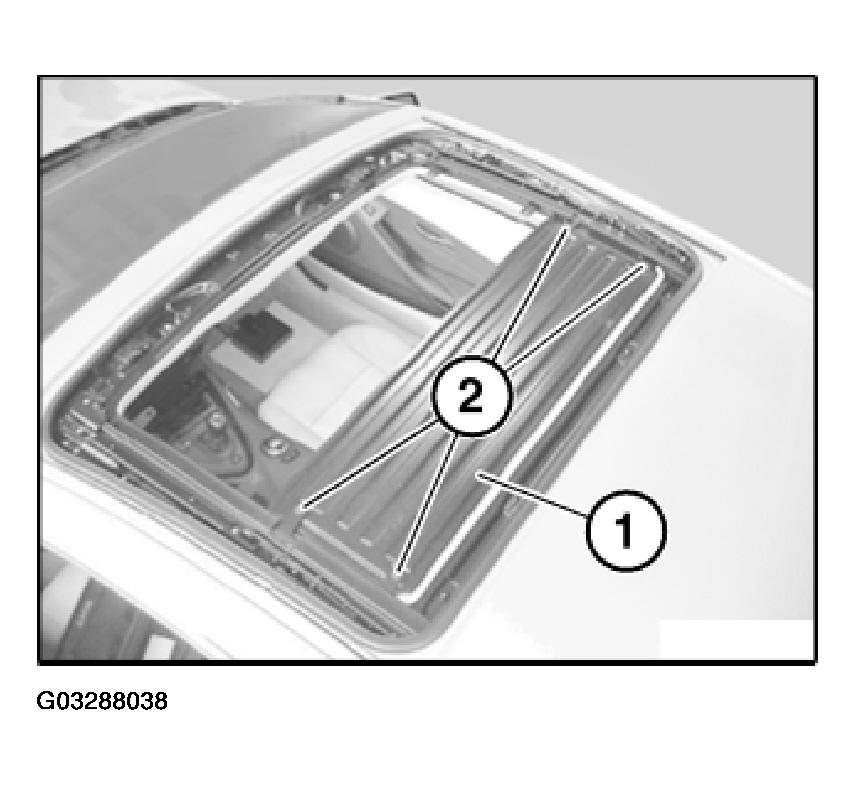

Fig 1: Moving Rear Floating Roofliner Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 54 10 7AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES - E63 .

Slide roofliner (1) uniformly towards front.

If necessary, raise slider (2) for front and rear floating roofliners.

Move slider (2) back until there is no longer any contact with the roofliner (1).

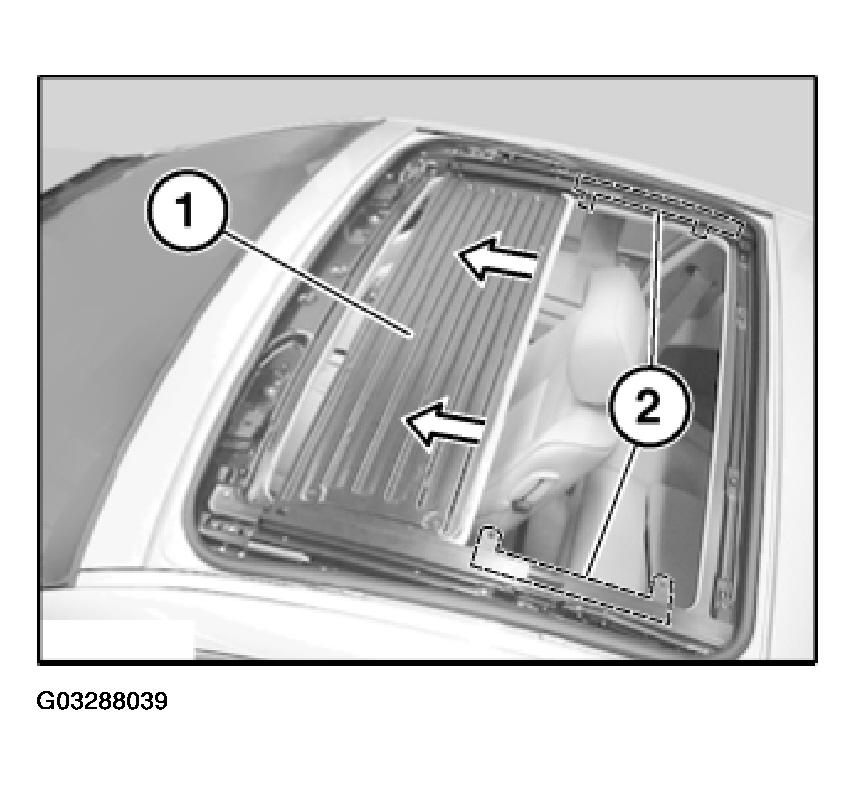

Fig 2: Sliding Roofliner Uniformly Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

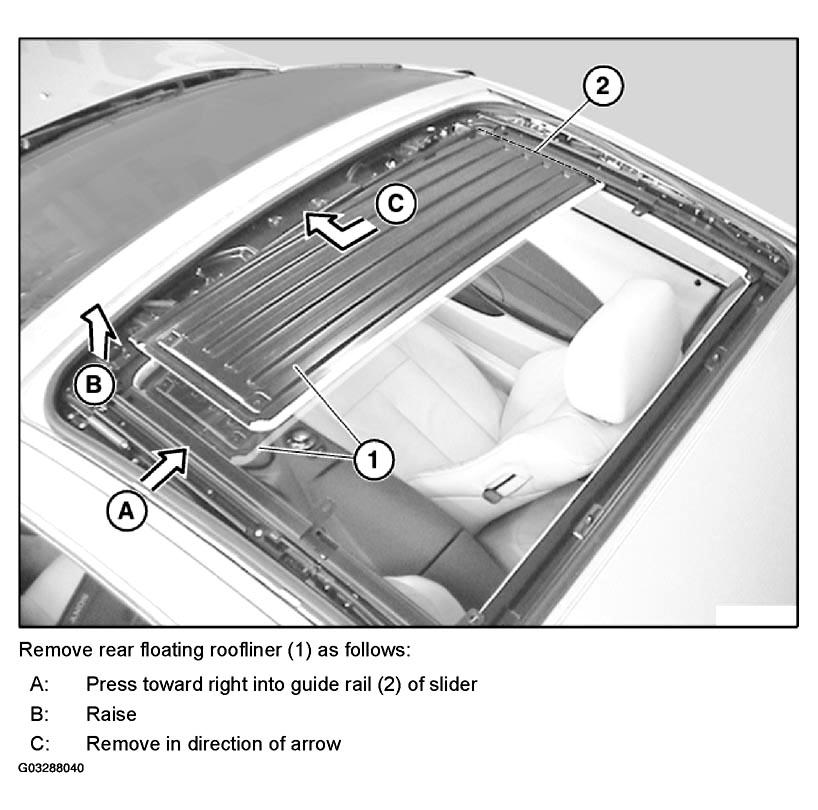

Fig 3: Removing Rear Floating Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.
