54 10 130 Removing and installing/replacing front trim

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove gaiter on left and right, refer to 54 10 1140 REMOVING AND INSTALLING/REPLACING GAITER FOR GLASS TILT SUNROOF .

Unclip trim (1).

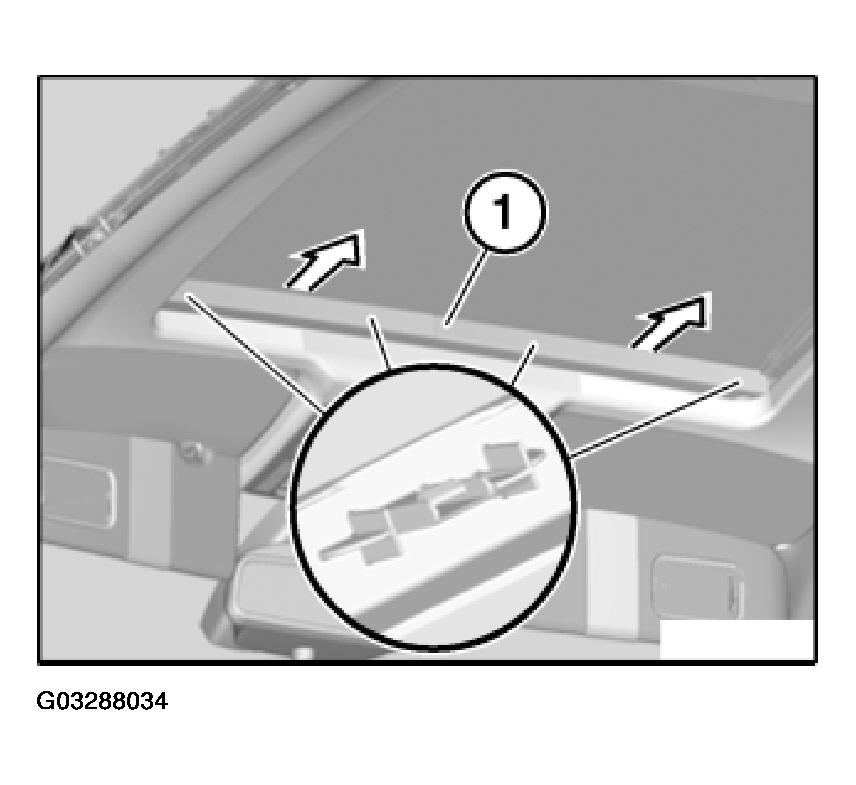

Fig 1: Unclipping Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace trim (1) if clips are faulty.

Locator prevents incorrect installation of trim (1).
