54 10 1.. Removing and installing/replacing outer gaiter for glass tilt sunroof

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Handle the gaiter with extreme care throughout the work procedure. This soft component is highly susceptible to tearing.

Necessary preliminary tasks:

Remove trim strip from roof frame
Remove glass tilt sunroof lid, refer to 54 10 100 REMOVING AND INSTALLING GLASS TILT SUNROOF LID .

Unlock clips (1) and remove.

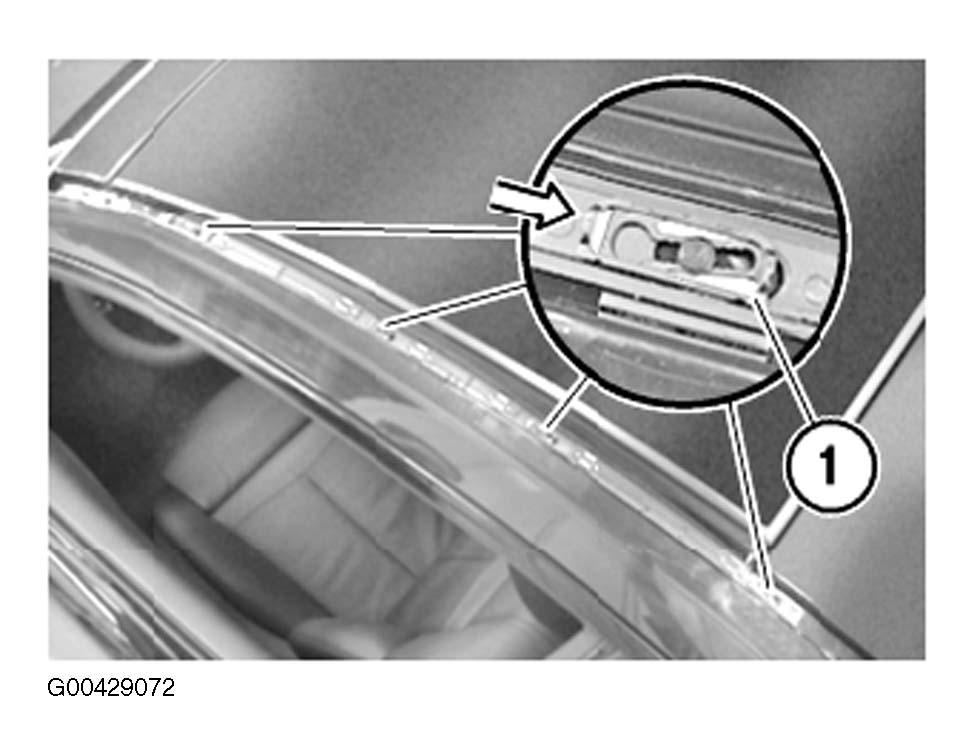

Fig 1: Identifying Clips (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gaiter.

Installation:

If necessary, replace faulty gaiter.

Mount gaiter first on glass sunroof lid.
