52 16 ... Removing and installing/replacing seat pan and flex mat on front left or right seat (sports/electric)

Remove seat cover with padding,

refer to 52 16 400 REPLACING SEAT COVER FOR LEFT OR RIGHT FRONT SEAT (SPORTS/ELECTRIC)  .

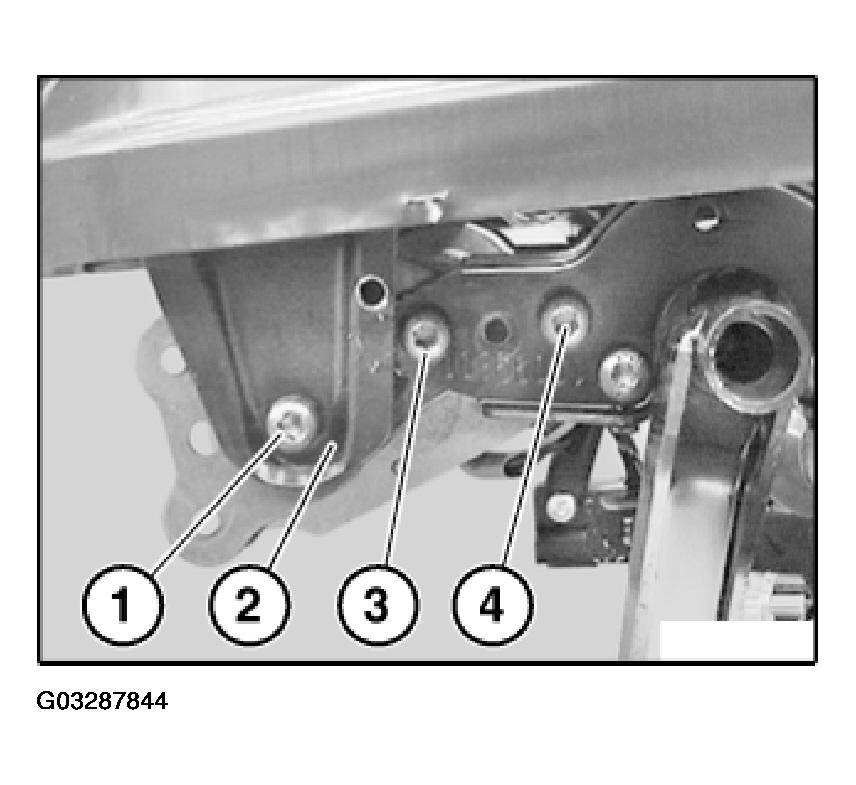

Release left screw (1) and slacken right screw only.

Release left/right screws (3).

Slacken left/right screws (4) only.

Lever out retaining plate (2) on left.

Fig 1: Removing Retaining Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Tightening Torque, refer to 52 10 9AZ in SEATS - TIGHTENING TORQUES - 645CI .

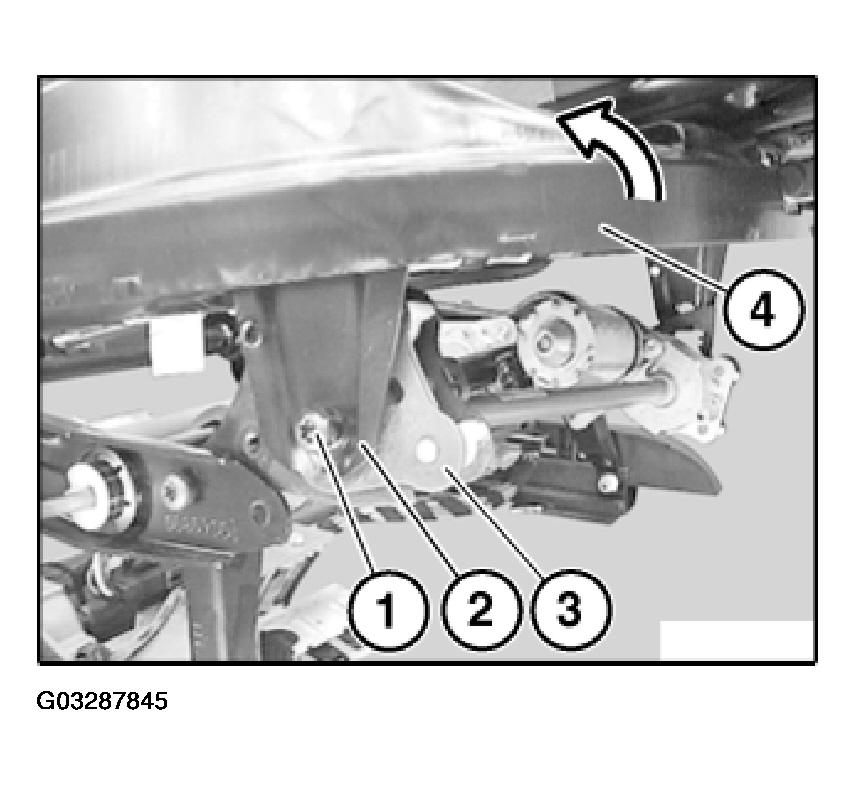

Press seat pan (4) upwards, thereby relieving tension on flex mat.

Release screw (1) and remove support (2) from gear (3).

Fig 2: Pressing Seat Pan Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Tightening Torque, refer to 52 10 9AZ in SEATS - TIGHTENING TORQUES - 645CI .

Installation:

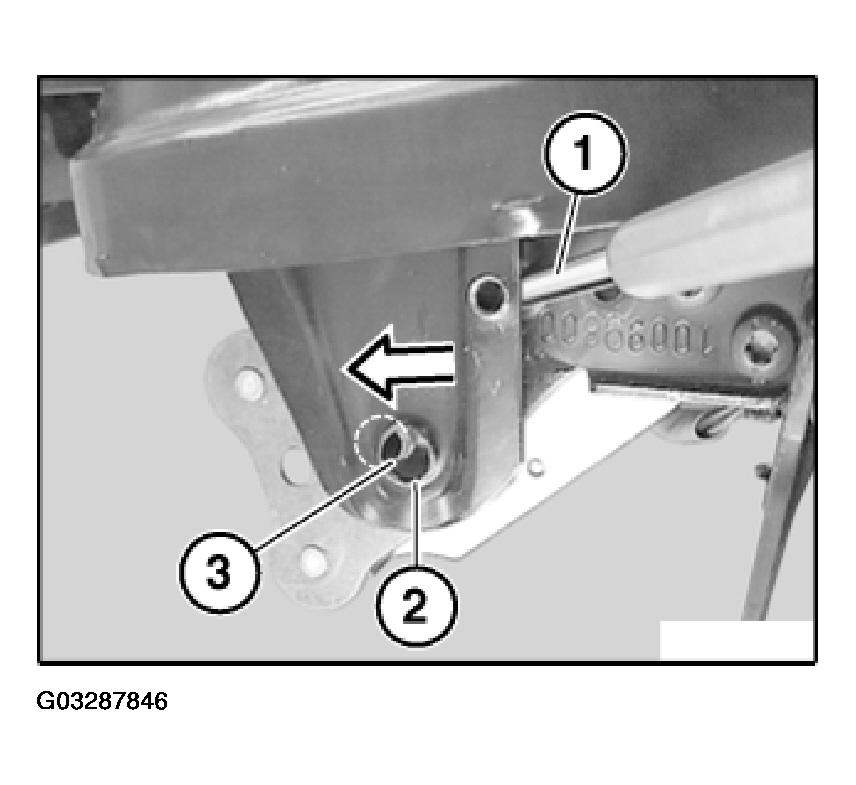

1. Using split-pin drift (1), lift support (2) onto guide (3).

Fig 3: Lifting Support Onto Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat occupancy detector:

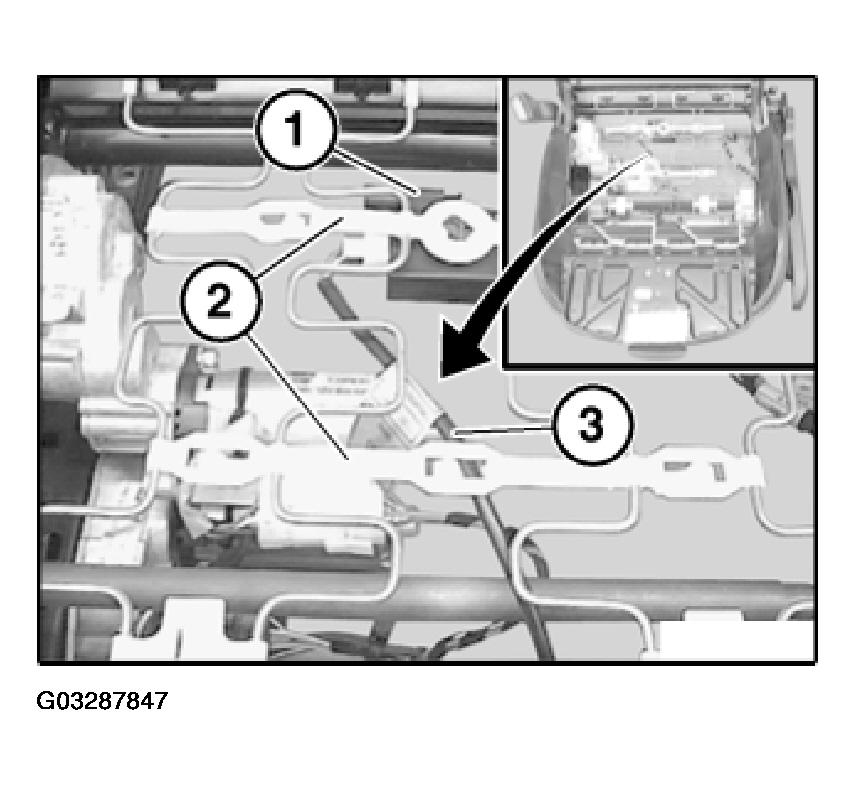

If necessary, unhook control unit (1) and cable (3) from holders (2).

Fig 4: Unhooking Control Unit And Cable From Holders

Courtesy of BMW OF NORTH AMERICA, INC.

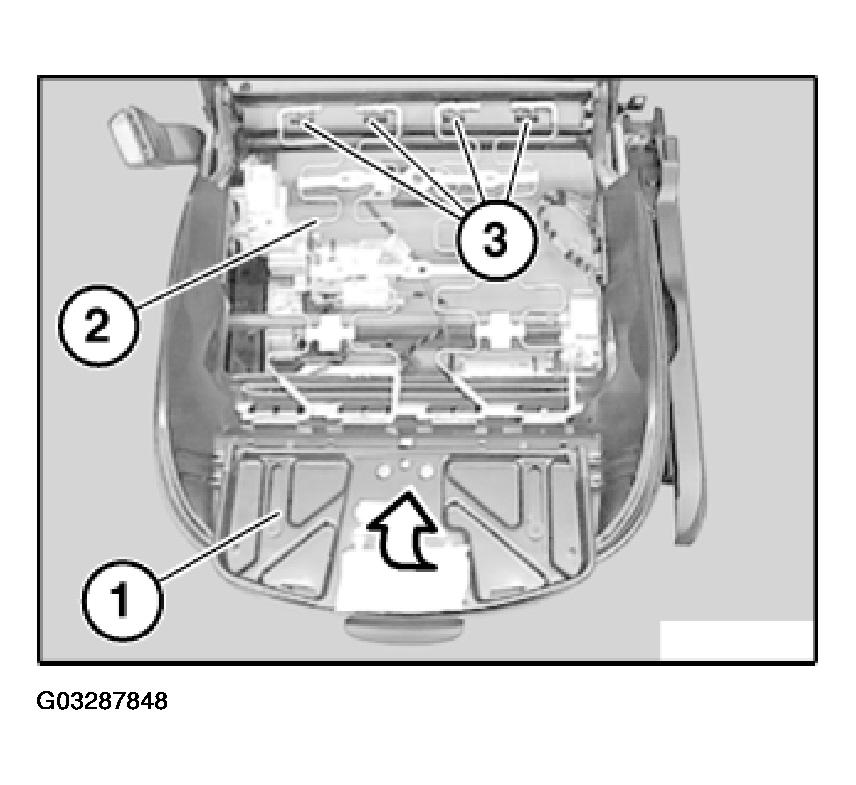

Turn seat pan (1) upwards.

Detach flexmat (2) at rear from mounts (3).

Fig 5: Detaching Flexmat

Courtesy of BMW OF NORTH AMERICA, INC.

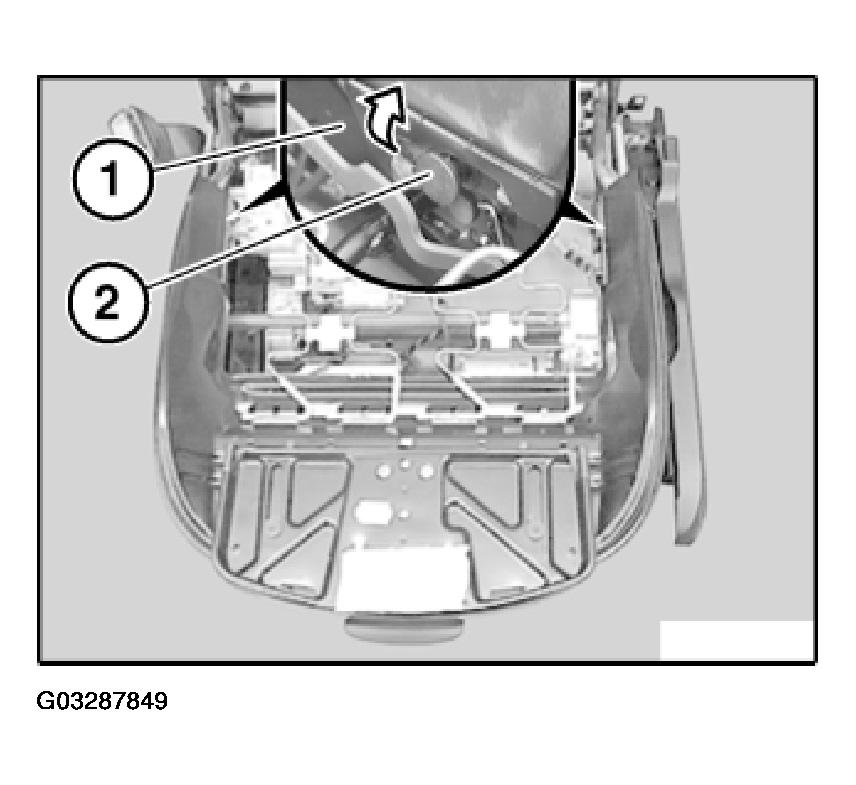

Detach seat pan (1) on left/right backwards/top from mount (2) and remove.

Fig 6: Detaching Seat Pan

Courtesy of BMW OF NORTH AMERICA, INC.

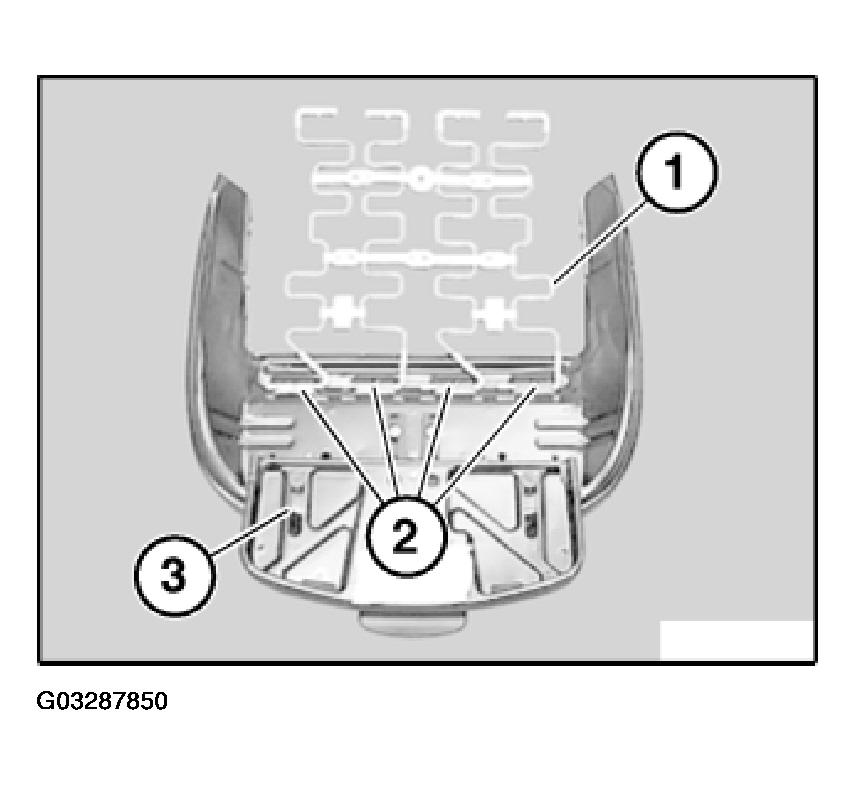

Detach flexmat (1) from mounts (2) on seat pan (3).

Fig 7: Detaching Flexmat From Mounts On Seat Pan

Courtesy of BMW OF NORTH AMERICA, INC.

Removing thigh support from seat pan:

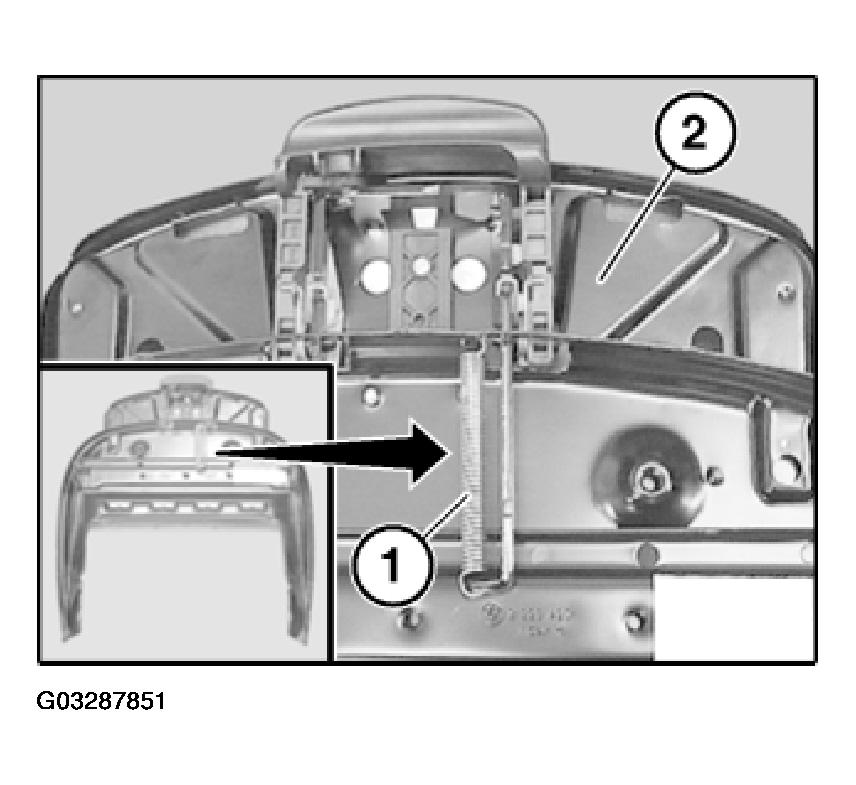

Unhook spring (1) from thigh support (2).

Fig 8: Unhooking Spring From Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

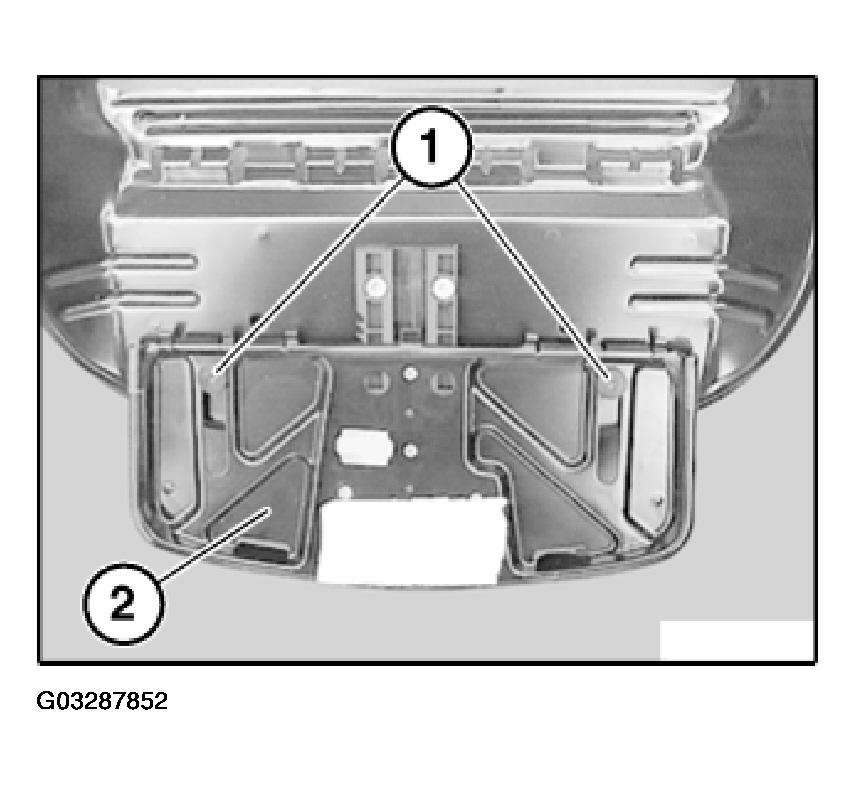

Release screws (1) and remove thigh support (2).

Fig 9: Removing Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

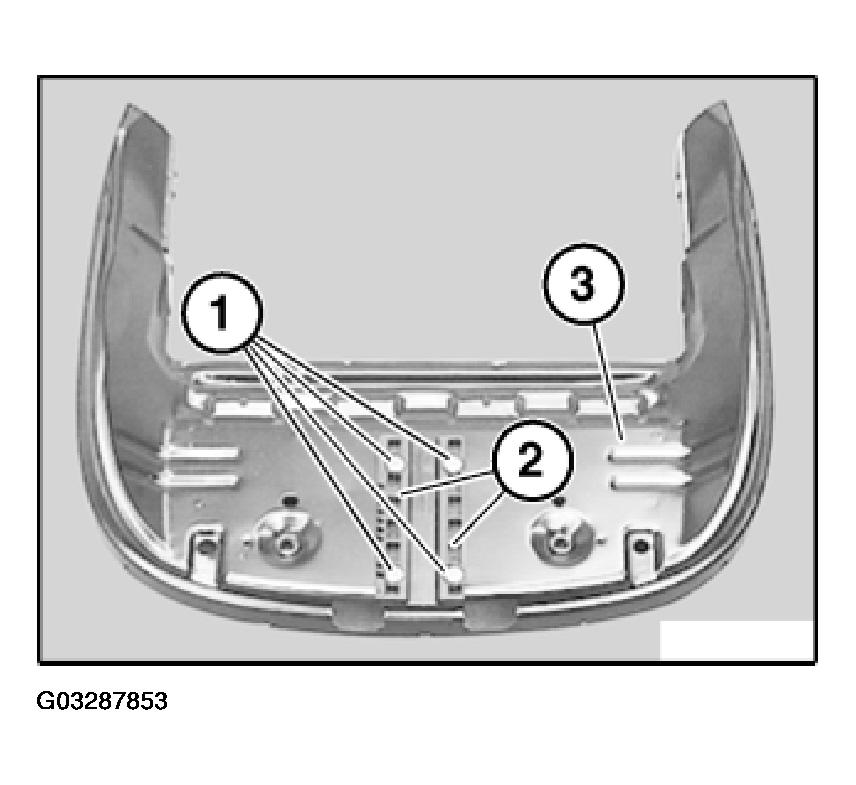

If necessary, release screws (1) and remove guide rails (2) from seat pan (3).

Fig 10: Removing Guide Rails From Seat Pan

Courtesy of BMW OF NORTH AMERICA, INC.
