52 13 ... Removing and installing/replacing seat pan and flexmat (normal/manual), left or right

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove seat cover with support, refer to 52 13 400 REPLACING SEAT COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .

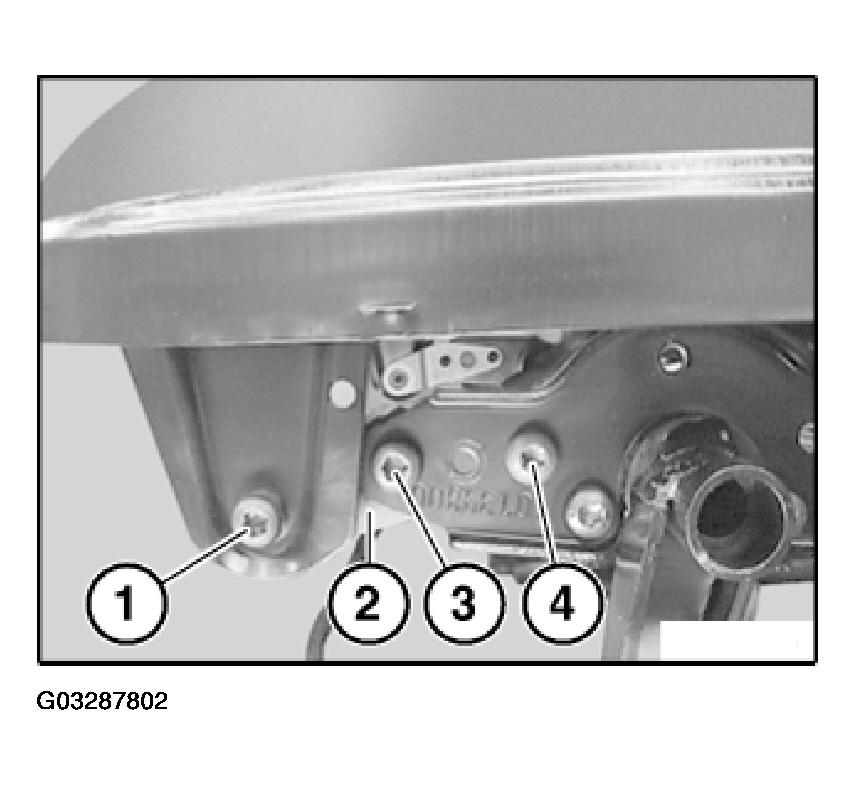

Release left screw (1) and slacken right screw only.

Release left/right screws (3).

Slacken left/right screws (4) only.

Remove left retaining plate (2) downwards.

Fig 1: Removing Left Retaining Plate

G03287802

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 52 10 9AZ in SEATS - TIGHTENING TORQUES - 645CI .

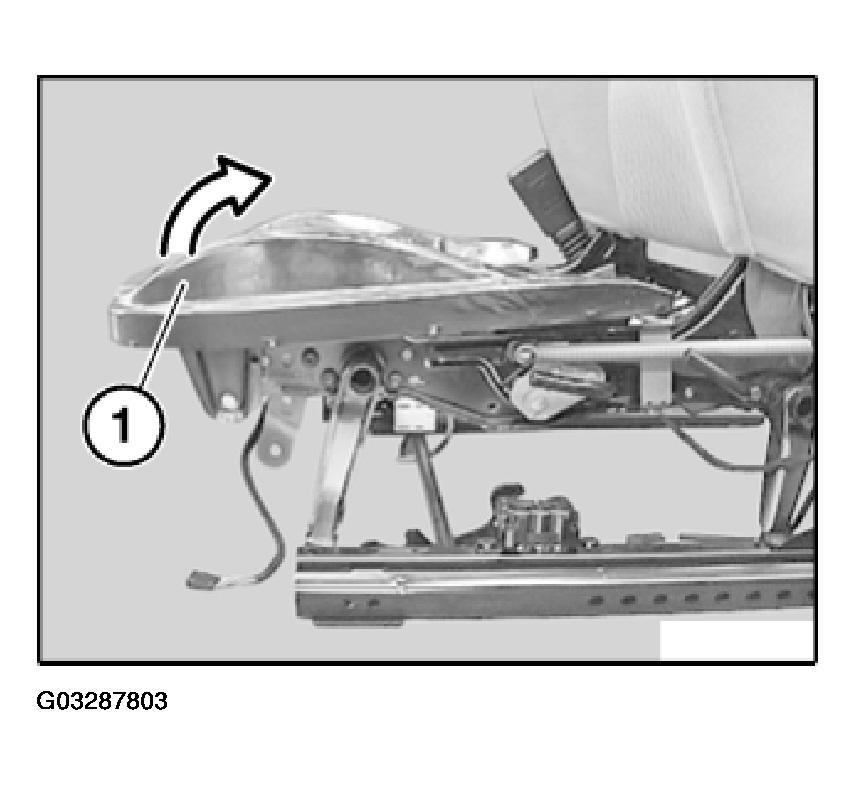

Press seat pan (1) upwards, thereby relieving tension on flexmat.

Fig 2: Pressing Seat Pan Upwards

G03287803

Courtesy of BMW OF NORTH AMERICA, INC.

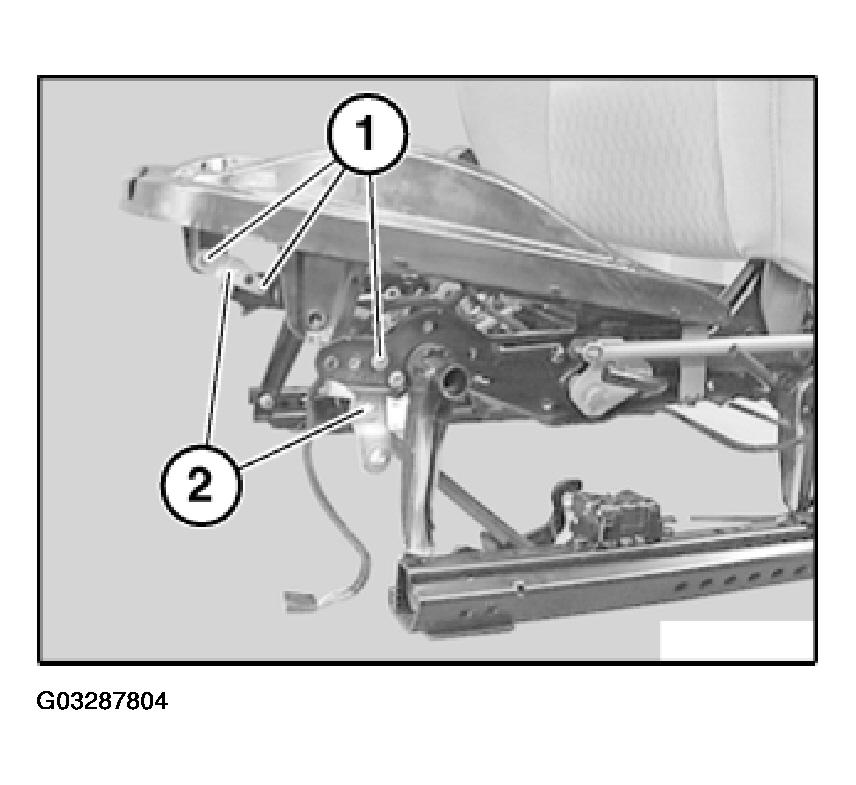

Release screws (1) and remove retaining plates (2).

Fig 3: Removing Retaining Plates

G03287804

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 52 10 9AZ in SEATS - TIGHTENING TORQUES - 645CI .

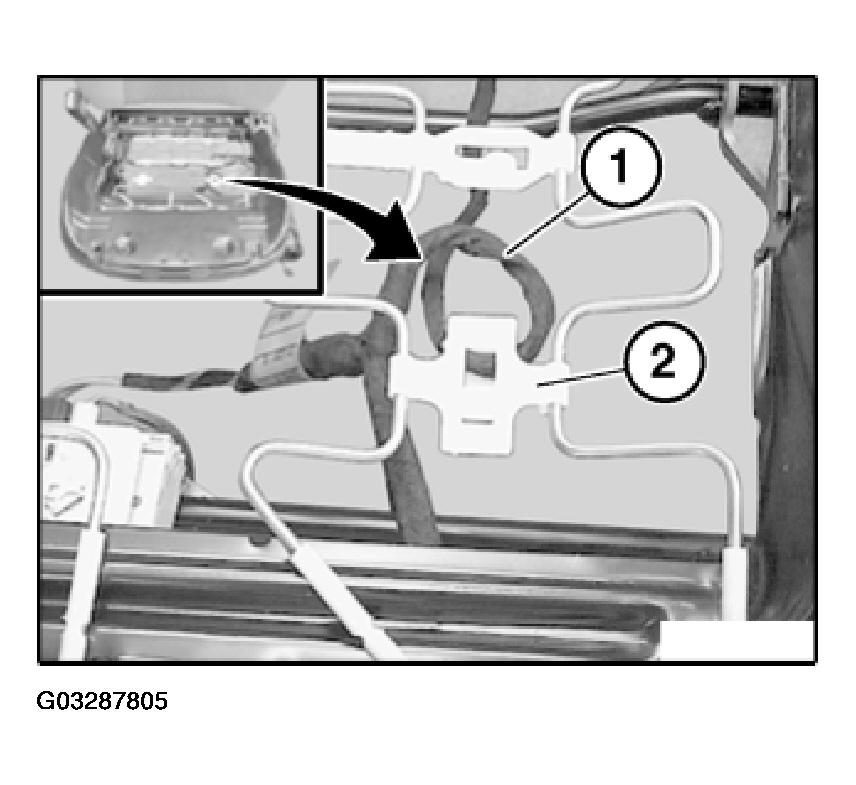

Unhook cable (1) from holder (2).

Fig 4: Unhooking Cable From Holder

G03287805

Courtesy of BMW OF NORTH AMERICA, INC.

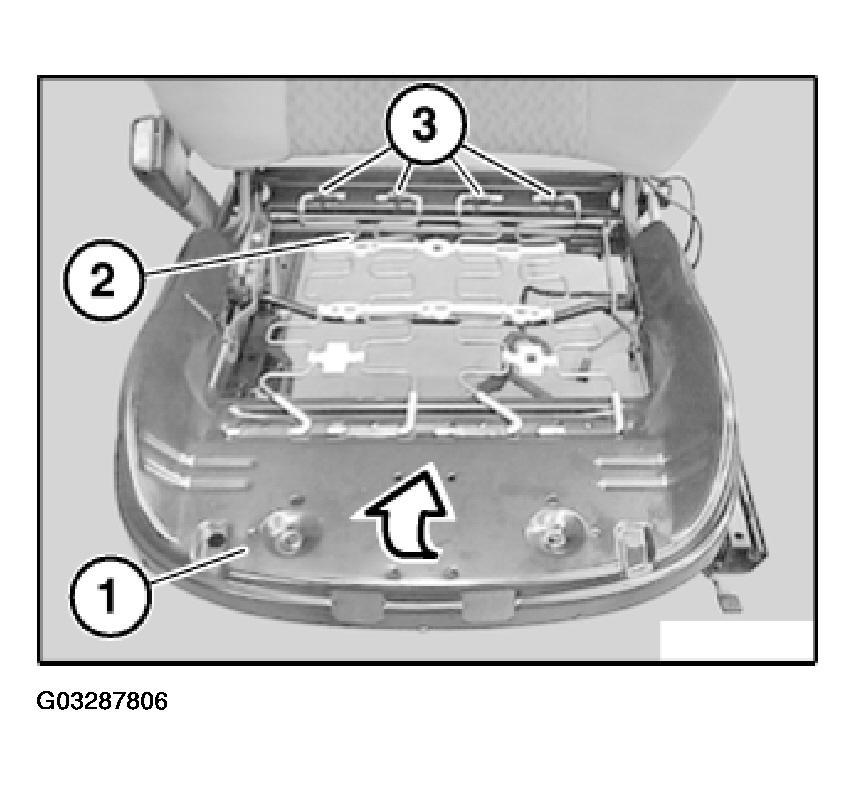

Turn seat pan (1) upwards.

Detach flexmat (2) at rear from mounts (3).

Fig 5: Turning Seat Pan Upwards And Detaching Flexmat (2) At Rear From Mounts (3)

G03287806

Courtesy of BMW OF NORTH AMERICA, INC.

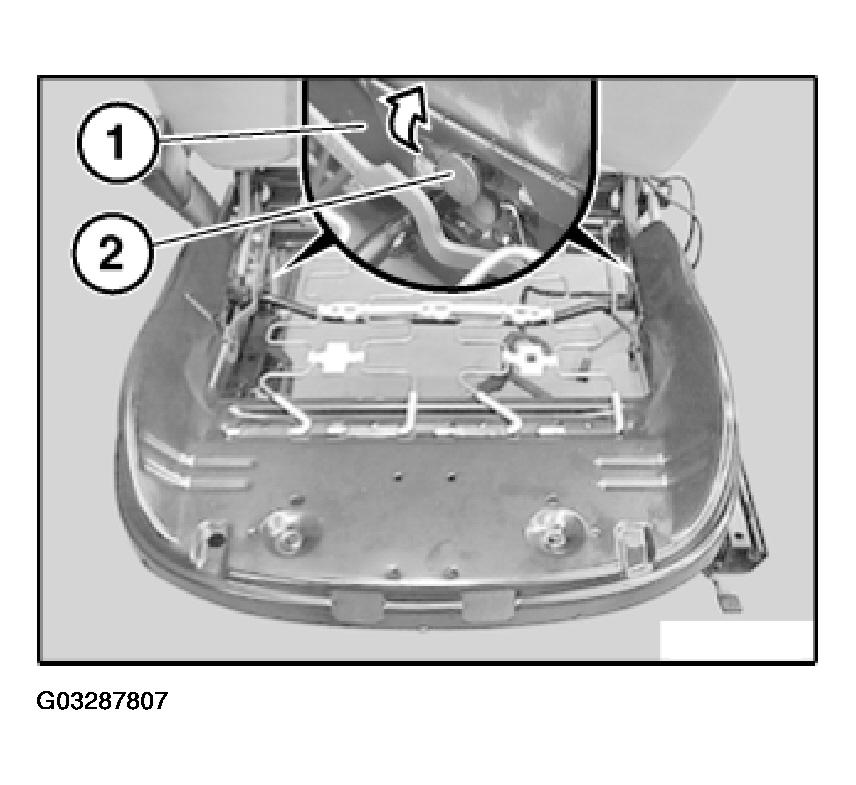

Detach seat pan (1) on left/right backwards/top from mount (2) and remove.

Fig 6: Removing Seat Pan On Left/Right Backwards/Top From Mount

G03287807

Courtesy of BMW OF NORTH AMERICA, INC.

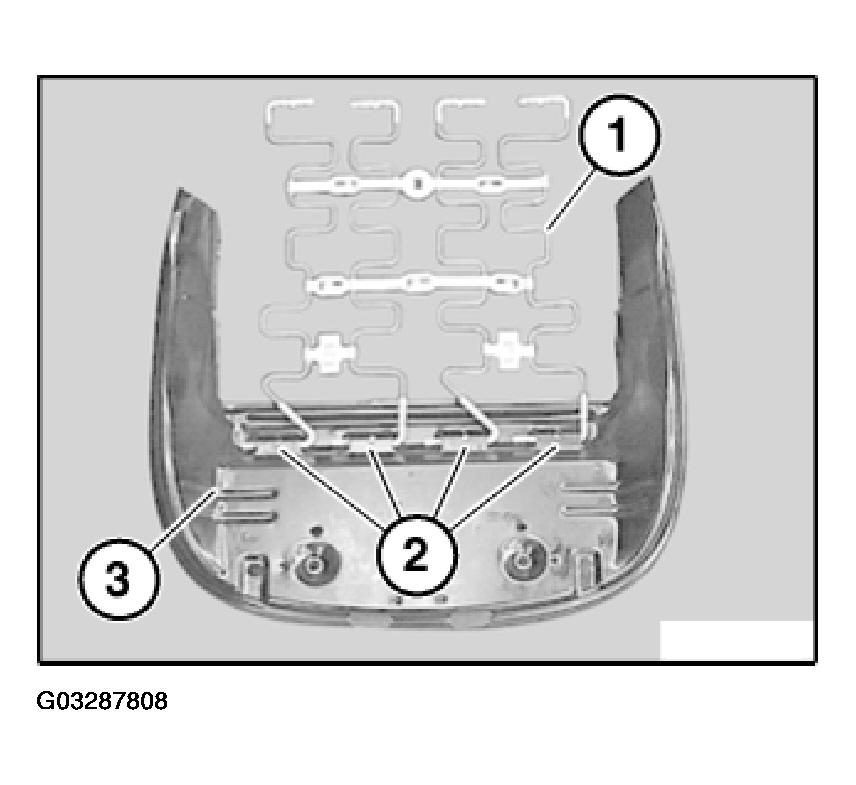

Detach flexmat (1) from mounts (2) on seat pan (3).

Fig 7: Detaching Flexmat From Mounts On Seat Pan

G03287808

Courtesy of BMW OF NORTH AMERICA, INC.
