52 13 ... Removing and installing/replacing guide for front left or right head restraint

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear panel on front seat backrest:

Guide for head restraint with pushbutton:

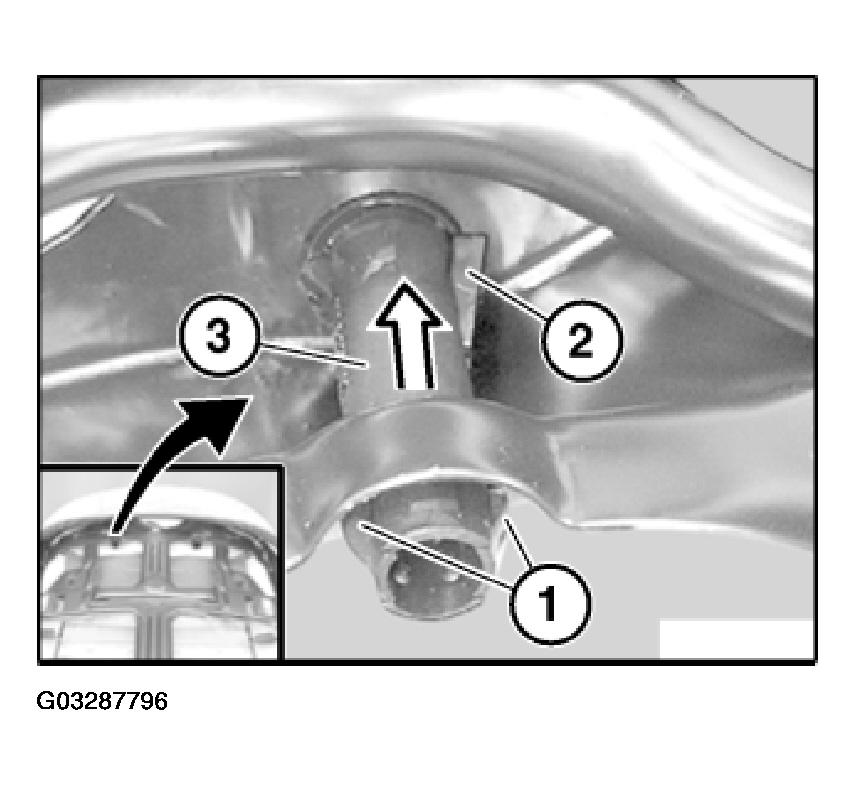

Release catches (1) and (2) and slide guide (3) upwards.

Fig 1: Releasing Catches And Sliding Guide Upwards

G03287796

Courtesy of BMW OF NORTH AMERICA, INC.

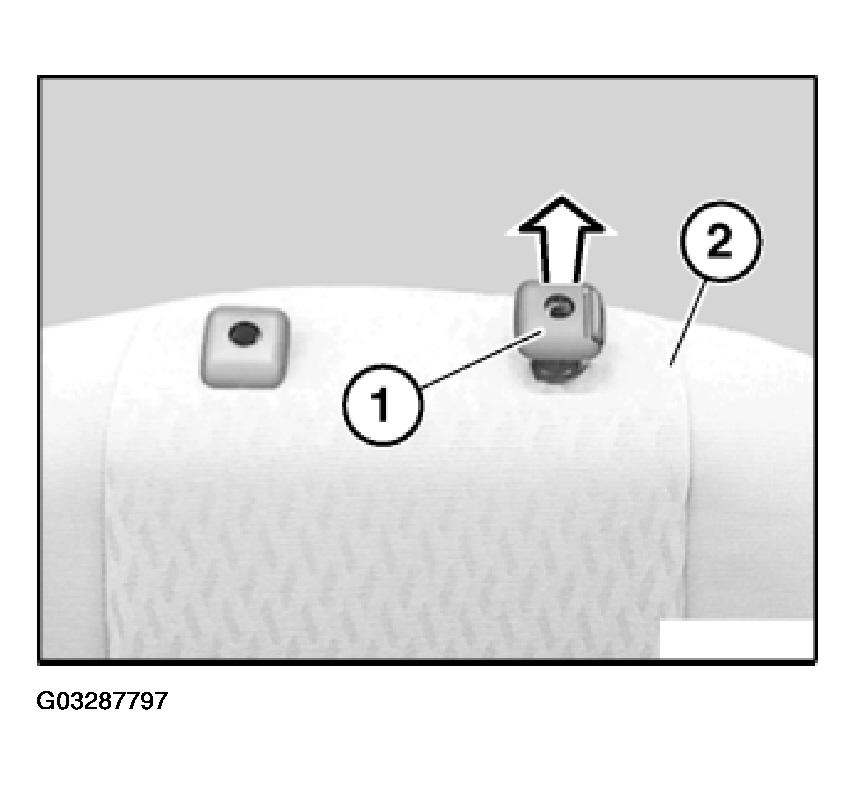

Pull guide (1) out of backrest (2).

Fig 2: Removing Guide Out Of Backrest

G03287797

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

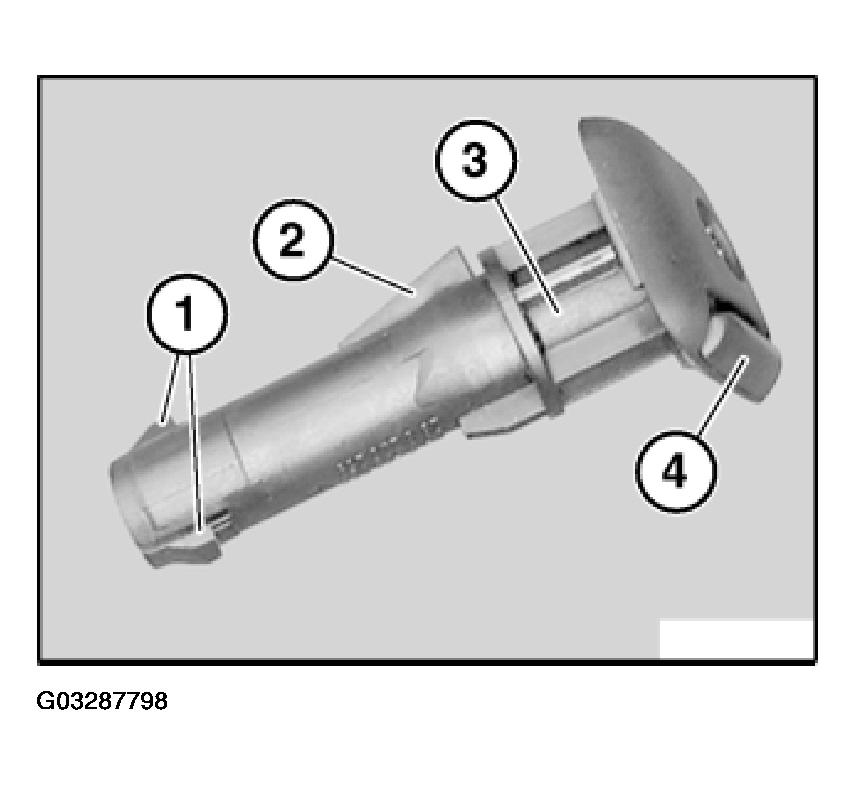

Catches (1) and (2) on guide (3) must not be damaged.
Check that pushbutton (4) works properly.
After installing guide (3), make sure it is properly seated.

Fig 3: Installing Front Left Or Right Head Restraint Guide

G03287798

Courtesy of BMW OF NORTH AMERICA, INC.

Guide for head restraint without pushbutton:

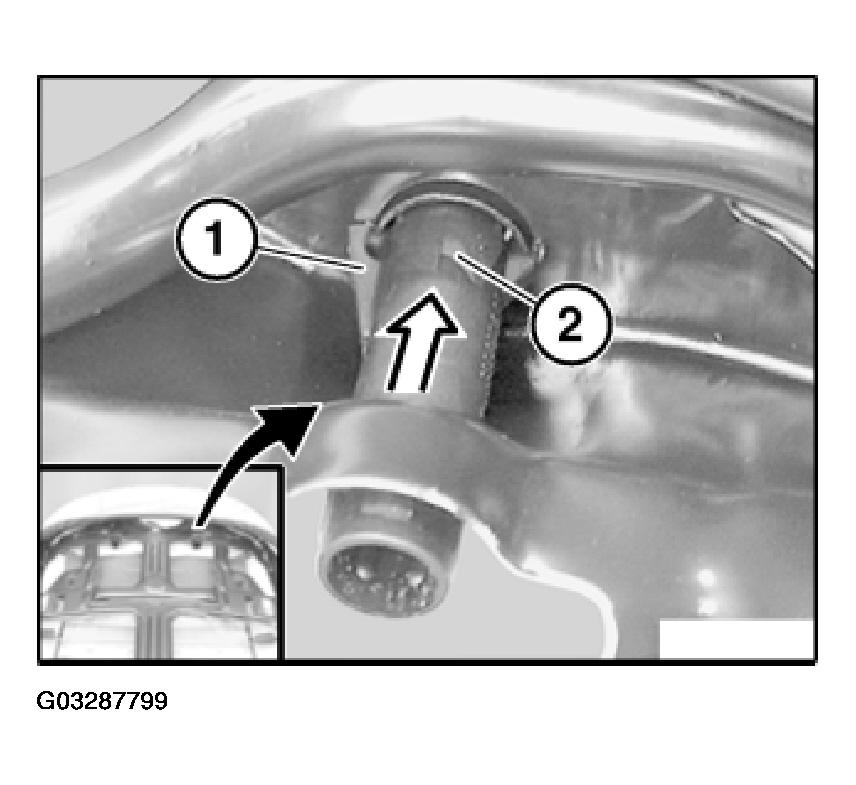

Release catches (1) and slide guide (2) upwards.

Fig 4: Releasing Catches And Sliding Guide Upwards

G03287799

Courtesy of BMW OF NORTH AMERICA, INC.

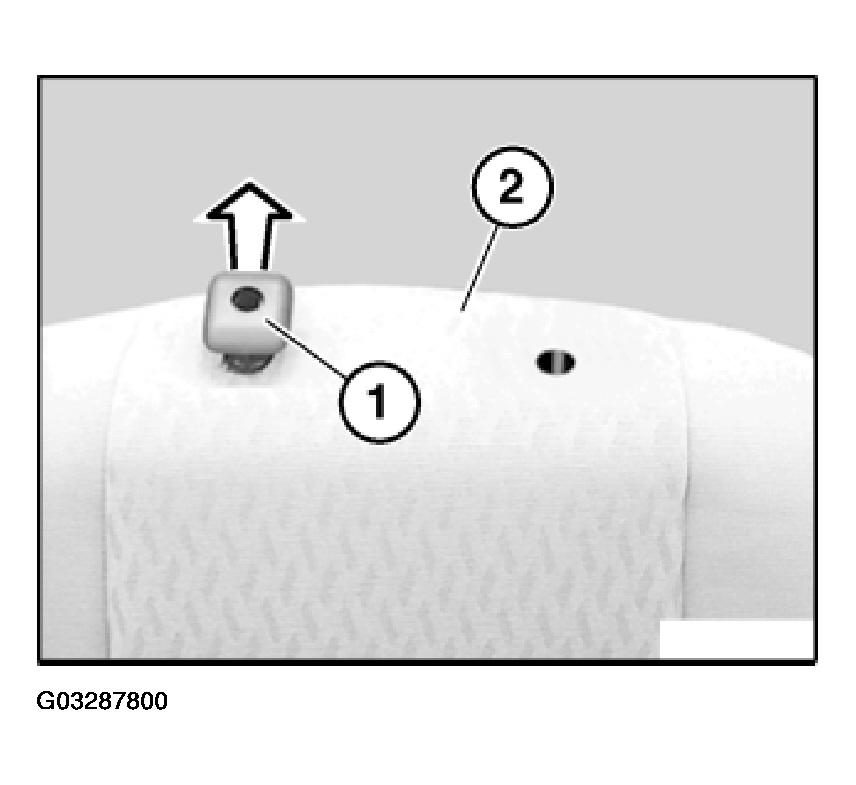

Pull guide (1) out of backrest (2).

Fig 5: Removing Guide Out Of Backrest

G03287800

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

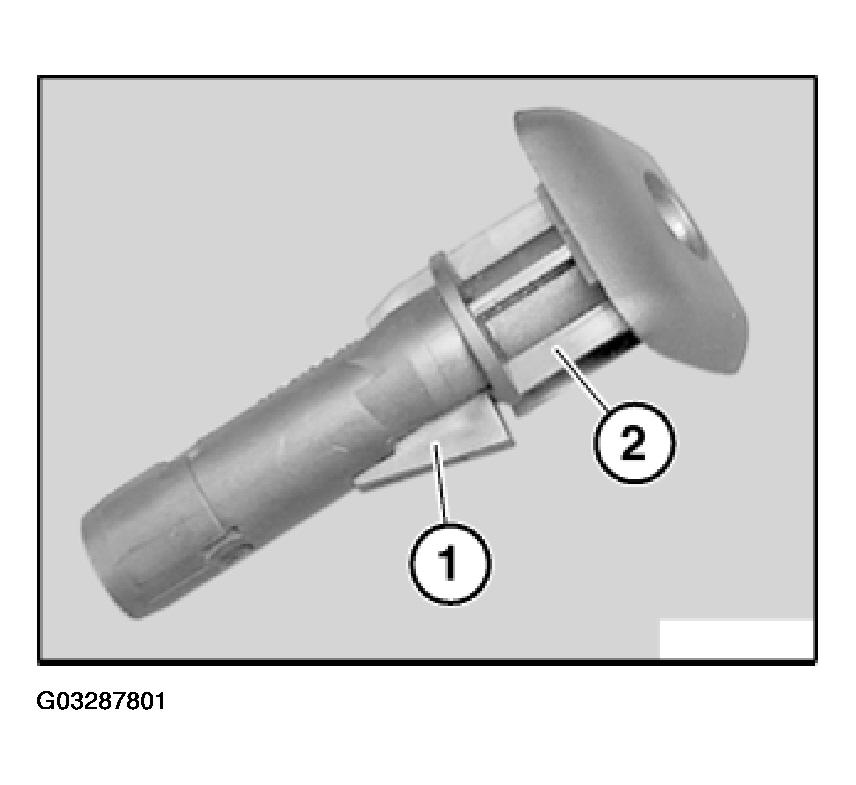

Catch (1) on guide (2) must not be damaged.
After installing guide (2), make sure it is properly seated.

Fig 6: Identifying Catch (1) On Guide (2)

G03287801

Courtesy of BMW OF NORTH AMERICA, INC.
