52 14 405 Replacing backrest cover for front left or right seat (normal/electric)

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: For special tools, refer to SEATS - SPECIAL TOOLS - 645CI (E63) .

52 0 050
64 1 020

Necessary preliminary tasks:

Remove front seat, refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
Remove rear panel on front seat, refer to 52 14 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ELECTRIC) or 52 16 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON FRONT LEFT OR RIGHT SEAT BACKREST (SPORTS/ELECTRIC) .
Remove guide for head restraint, refer to 52 14 ... REMOVING AND INSTALLING/REPLACING GUIDE FOR FRONT LEFT OR RIGHT HEAD RESTRAINT (NORMAL/ELECTRIC) .
Remove trim for release handle, refer to 52 13 ... REMOVING AND INSTALLING/REPLACING TRIM FOR RELEASE HANDLE ON LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .

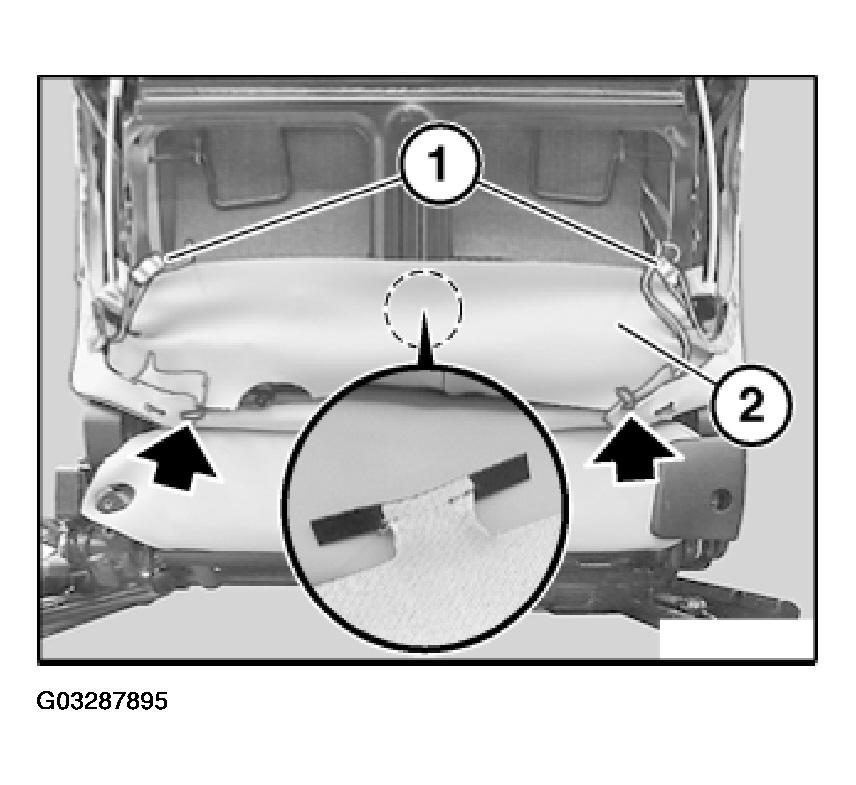

Detach tensioning cables (1) from backrest frame.

Disconnect all retainers.

Detach partial cover (2) from backrest frame.

Fig 1: Detaching Tensioning Cables From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

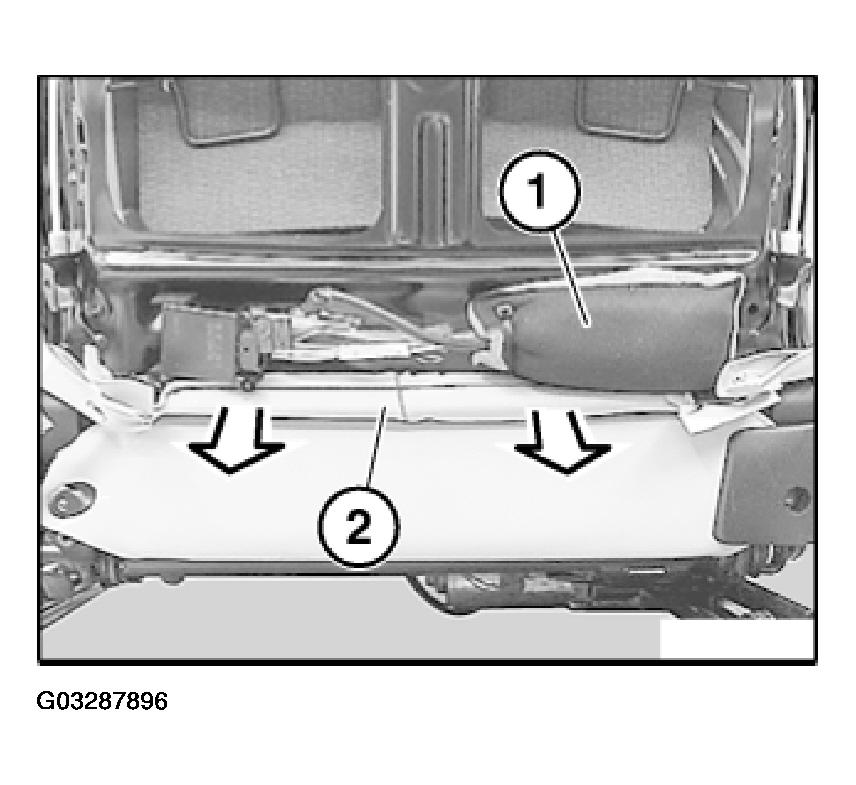

Detach drive unit (1) for lumbar cushion from backrest frame.

Installation:

If necessary, use new adhesive tape (double-sided).

Detach backrest cover (2) from backrest frame by lifting out piping.

NOTE: If necessary, use special tool 64 1 020.

Fig 2: Detaching Backrest Cover From Backrest Frame By Lifting Out Piping

Courtesy of BMW OF NORTH AMERICA, INC.

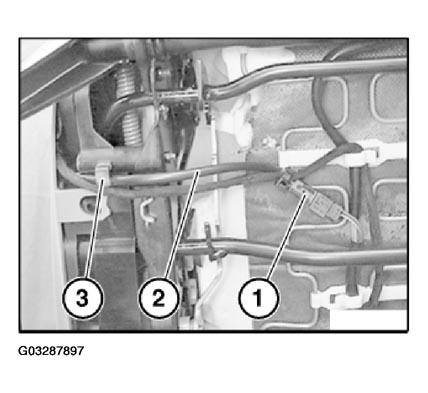

Version with seat heating:

Expose cable for seat heating.

Disconnect plug connection (1).

Feed cable (2) out of holder (3).

Fig 3: Disconnecting Plug Connection And Cable Out Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

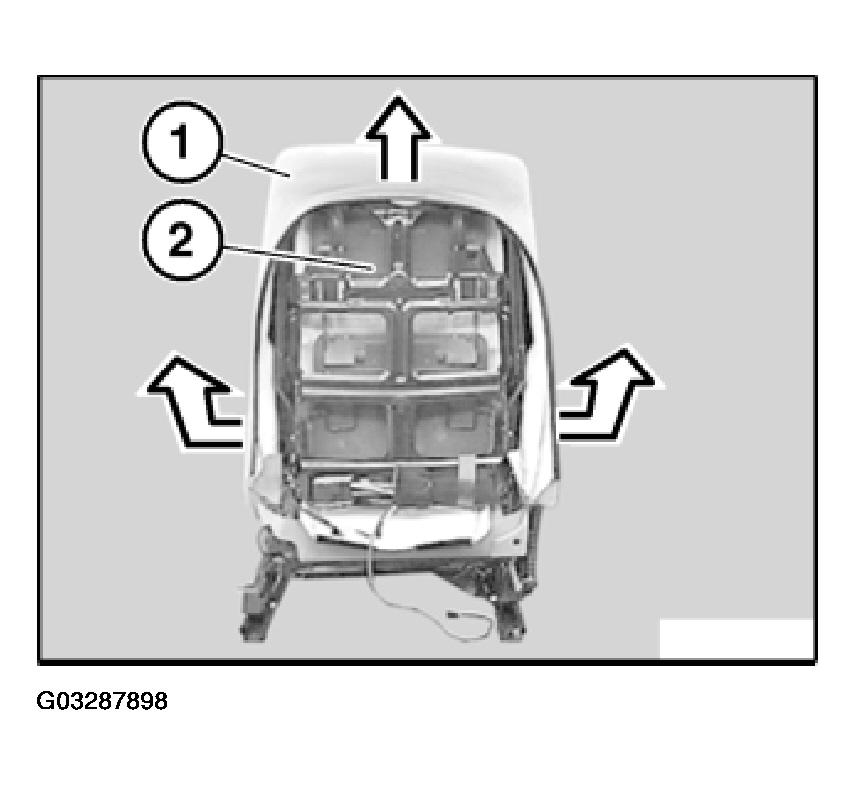

Detach backrest cover (1) at sides towards front and remove with support upwards from backrest frame (2).

Fig 4: Removing Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

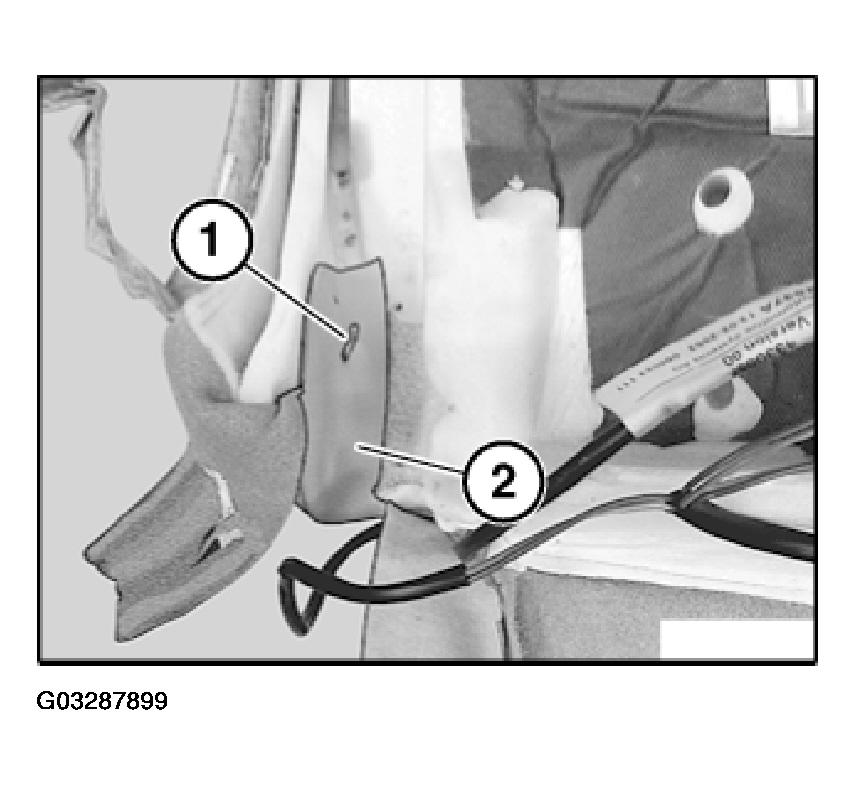

Release retainers (1) on left and right of backrest cover (2).

Fig 5: Releasing Retainers On Left And Right Of Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

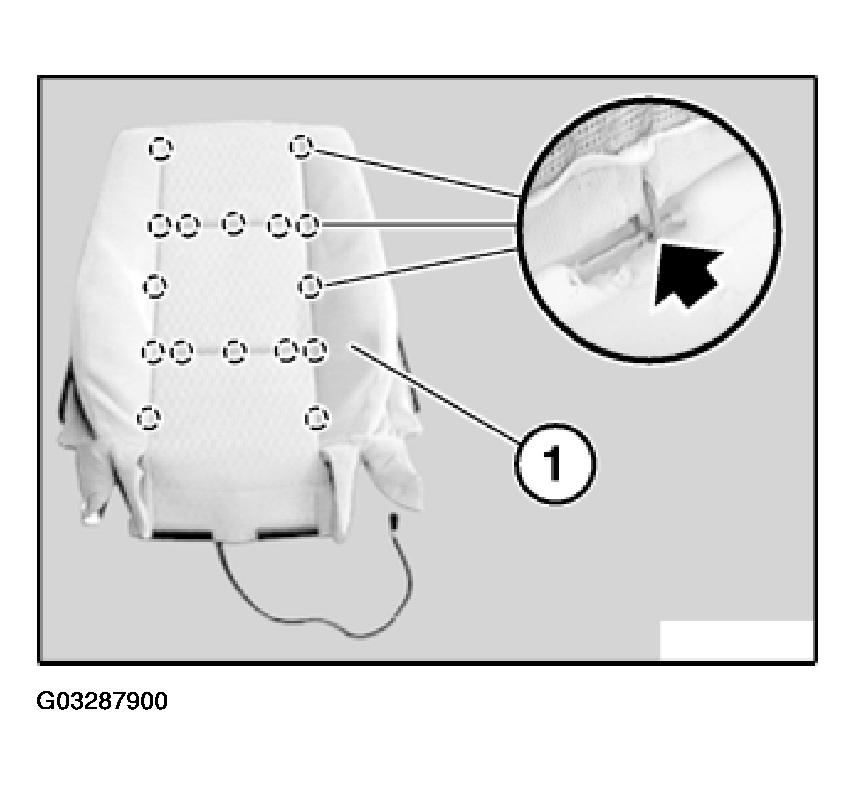

Release all retainers.

Remove backrest cover (1) from support.

NOTE: Remove all remnants of clips from backrest cover (1) and padding.

Fig 6: Removing All Remnants Of Clips From Backrest Cover And Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

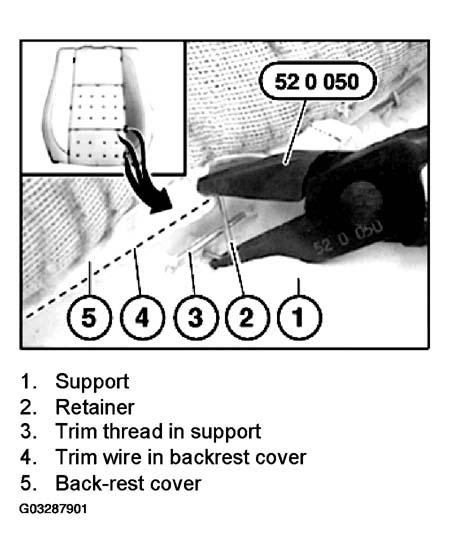

Bend new retainer (2) with special tool 52 0 050.

Fig 7: Installing Retainer With Special Tool 52 0 050

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of backrest cover:

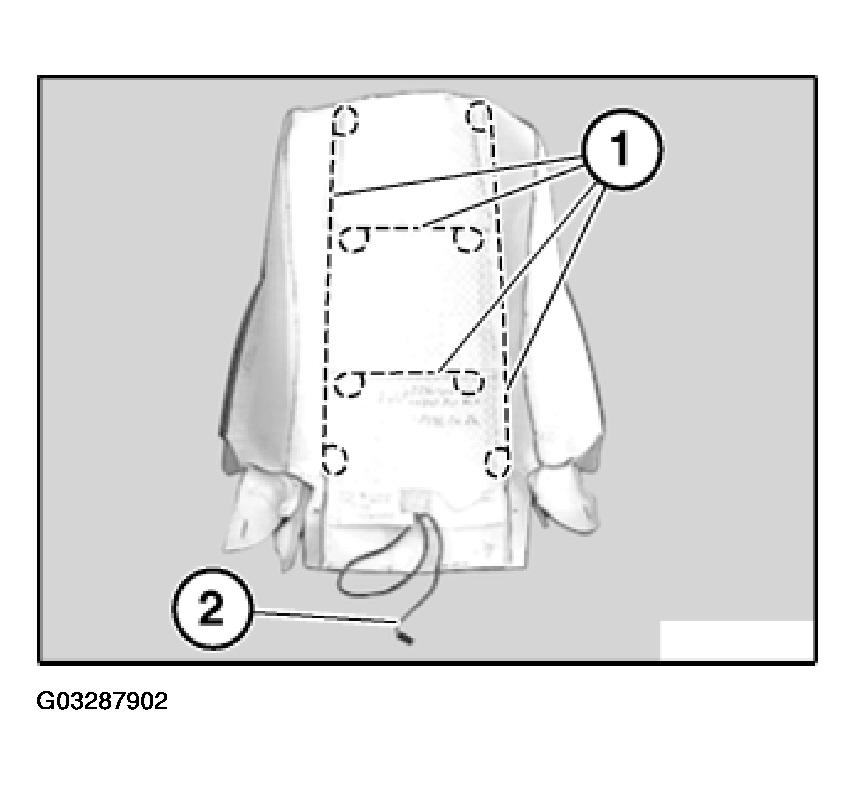

Pull trim threads (1) out of backrest cover.

Installation:

Cut new backrest cover to size and insert trim wires (1).

(2) Seat heater cable

Fig 8: Identifying Seat Heater Cable And Trim Wires

Courtesy of BMW OF NORTH AMERICA, INC.
