52 13 ... Removing and installing/replacing seat pan and flexmat (normal/manual), left or right

WARNING: This page is about a different car, the 2007 BMW M6, 2006 BMW M6, 2005 BMW 645Ci, and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove seat cover with support,

refer to 52 13 400 REPLACING SEAT COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .

Release left screw (1) and slacken right screw only.

Release left/right screws (3).

Slacken left/right screws (4) only.

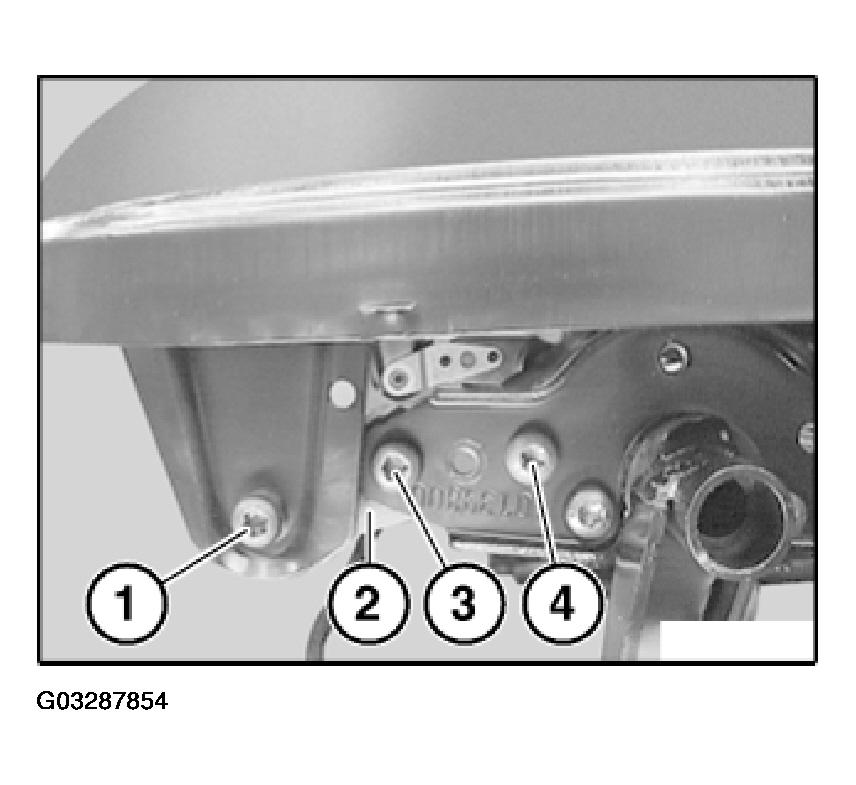

Remove left retaining plate (2) downwards.

Fig 1: Removing Left Retaining Plate

G03287854

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 52 10 9AZ in SEATS - TIGHTENING TORQUES - 645CI .

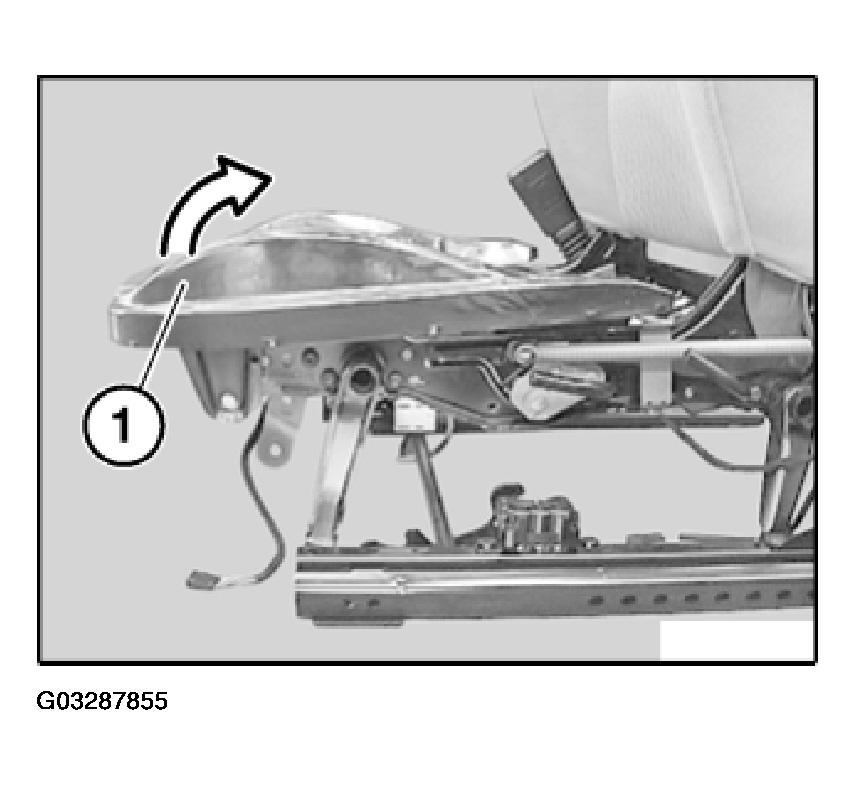

Press seat pan (1) upwards, thereby relieving tension on flexmat.

Fig 2: Pressing Seat Pan Upwards

G03287855

Courtesy of BMW OF NORTH AMERICA, INC.

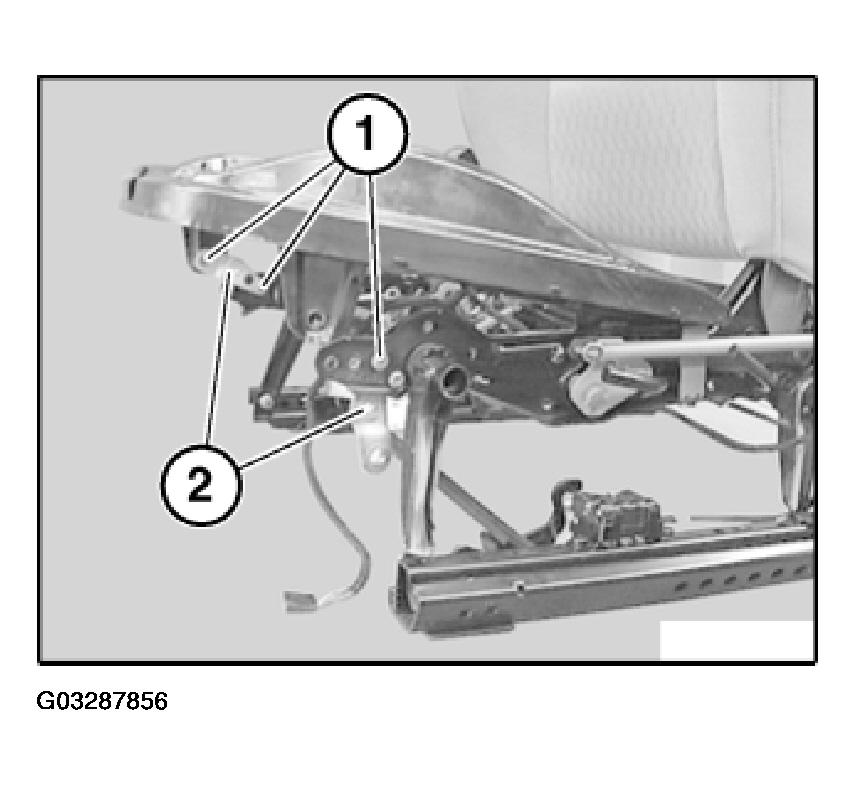

Release screws (1) and remove retaining plates (2).

Fig 3: Removing Retaining Plates

G03287856

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 52 10 9AZ in SEATS - TIGHTENING TORQUES - 645CI .

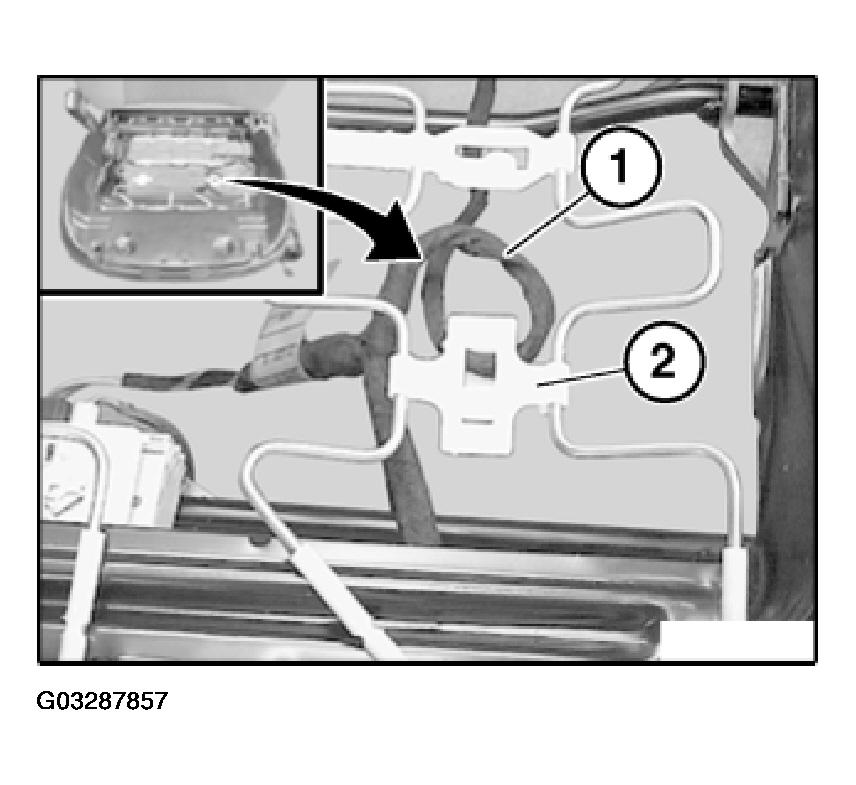

Unhook cable (1) from holder (2).

Fig 4: Unhooking Cable From Holder

G03287857

Courtesy of BMW OF NORTH AMERICA, INC.

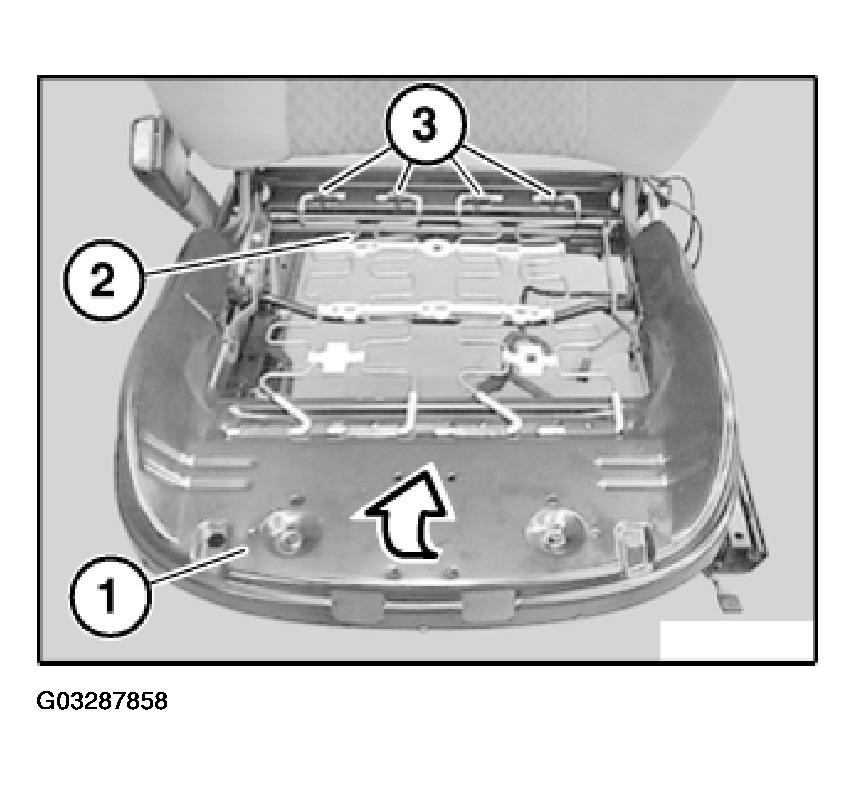

Turn seat pan (1) upwards.

Detach flexmat (2) at rear from mounts (3).

Fig 5: Detaching Flexmat At Rear From Mounts

G03287858

Courtesy of BMW OF NORTH AMERICA, INC.

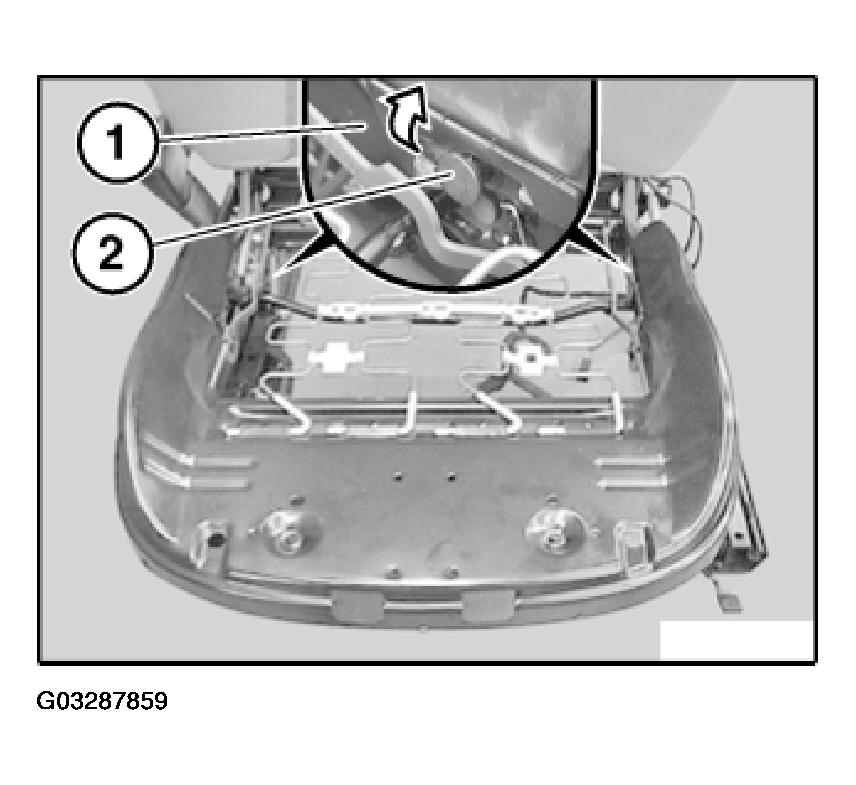

Detach seat pan (1) on left/right backwards/top from mount (2) and remove.

Fig 6: Detaching Seat Pan On Left/Right Backwards/Top From Mount

G03287859

Courtesy of BMW OF NORTH AMERICA, INC.

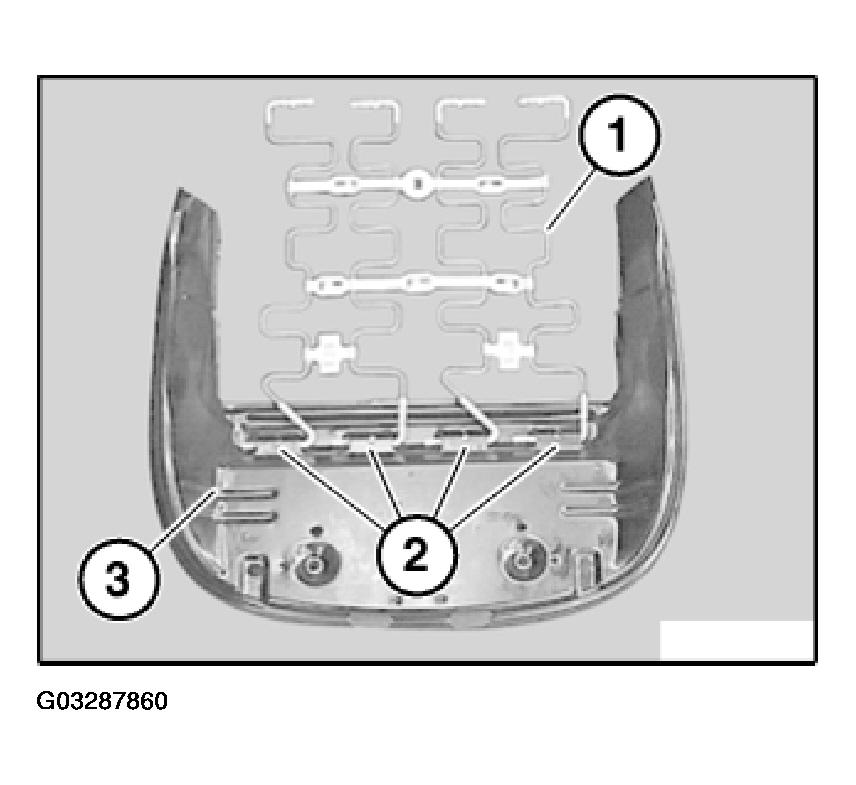

Detach flexmat (1) from mounts (2) on seat pan (3).

Fig 7: Detaching Flexmat From Mounts On Seat Pan

G03287860
