51 24 146 Removing and installing button for actuating rear lid

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for rear lid.

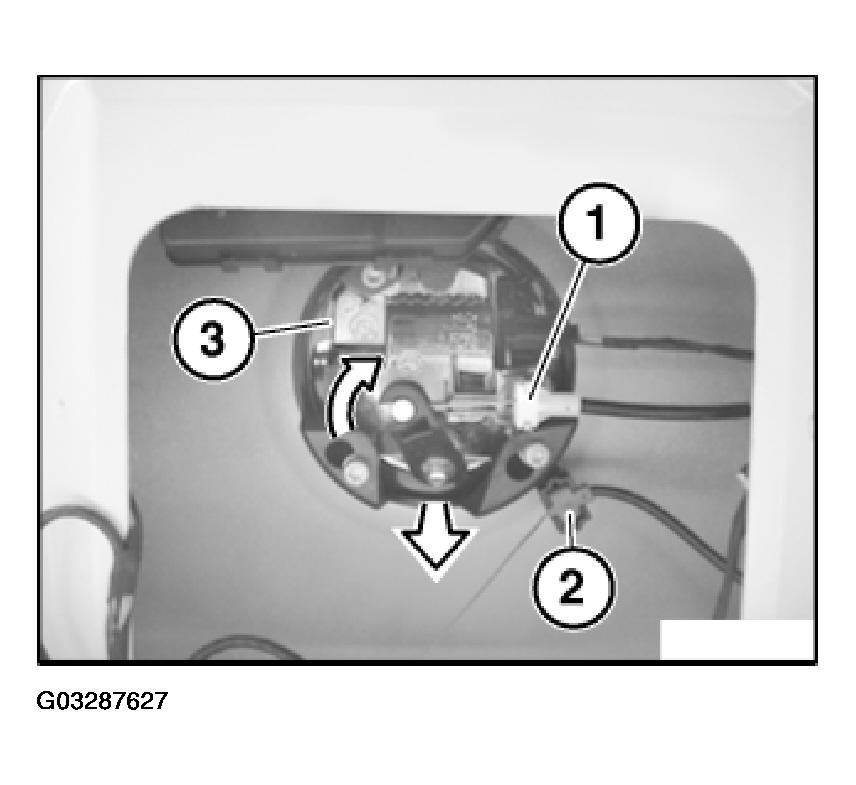

Unclip Bowden cable (1) and feed in direction of arrow out of mounting.

Version with manual rear lid unlocking:

Detach Bowden cable (2) in direction of arrow from button (3).

Fig 1: Removing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

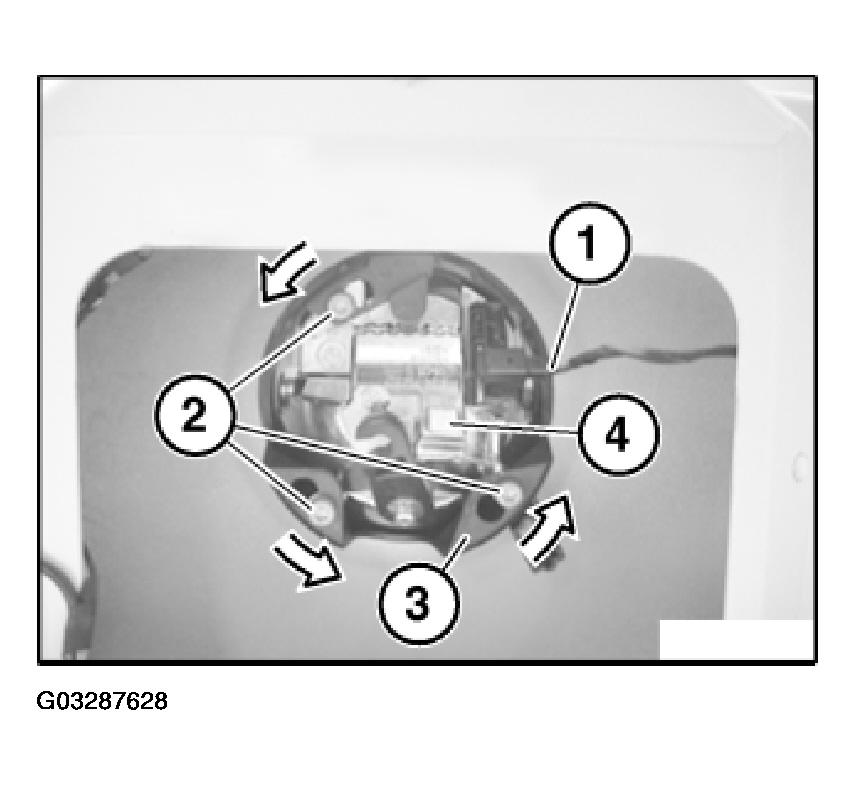

Disconnect plug connection (1) at microswitch.

Release screws (2).

Turn retaining ring (3) in direction of arrow and remove towards bottom.

Fig 2: Disconnecting Plug Connection At Microswitch

Courtesy of BMW OF NORTH AMERICA, INC.

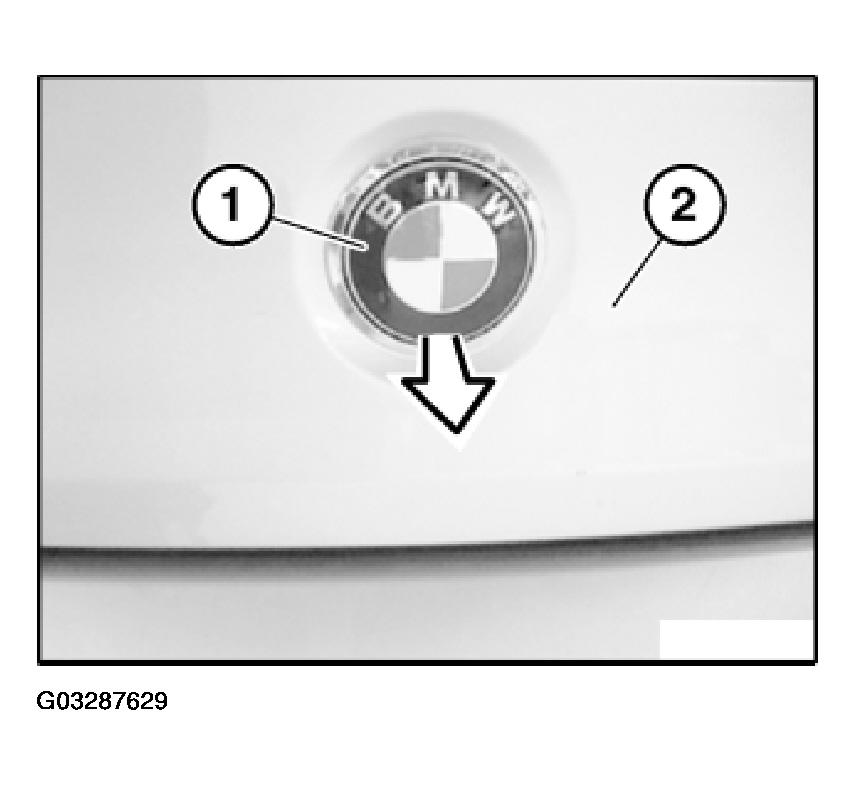

Remove button (1) in direction of arrow from rear lid (2).

Fig 3: Removing Button From Rear Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

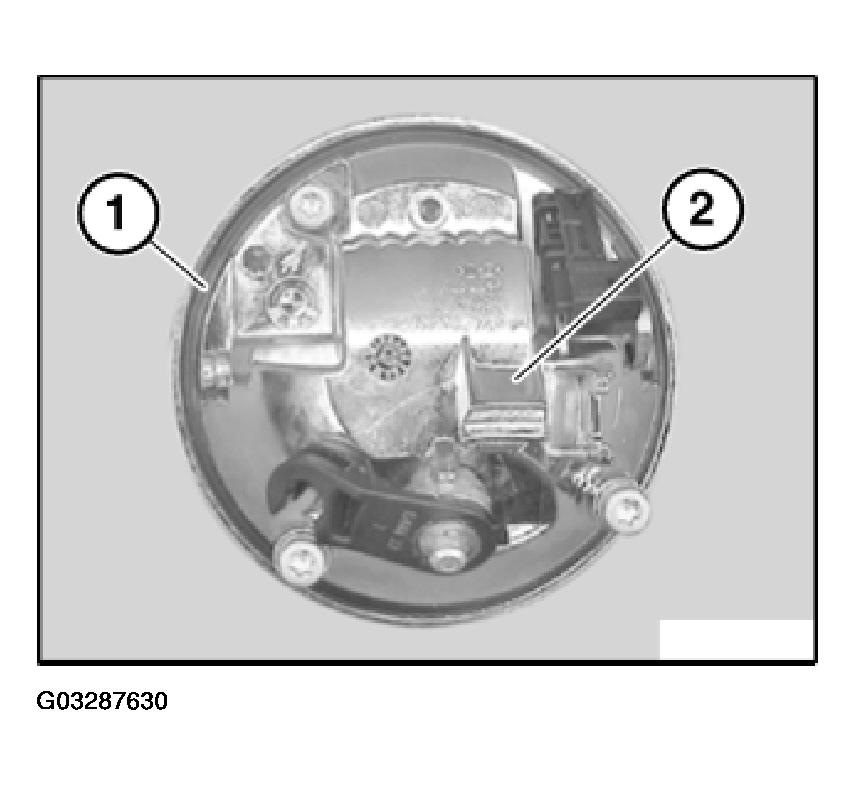

Seal (1) must not be damaged.

Perform function check with rear lid open.

Fig 4: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.
