51 24 130 Removing and installing/replacing striker for rear lid lock

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim on rear apron.

Release screws (1).

Remove striker for rear lid lock (2) (lower section of rear lid lock).

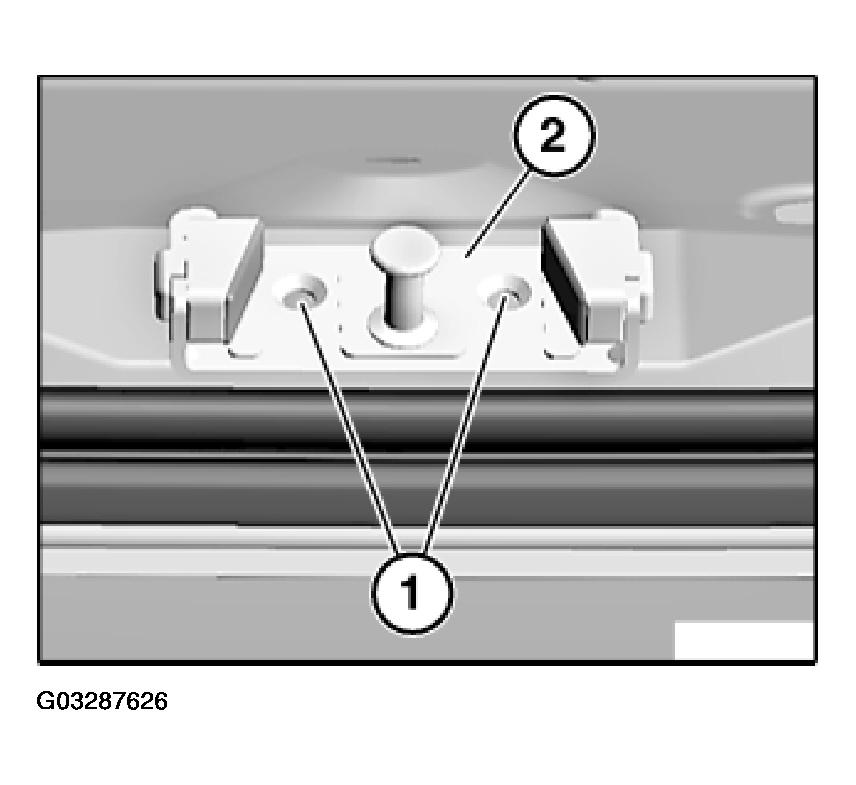

Fig 1: Removing Striker For Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust rear lid lock.

IMPORTANT: Striker and rear lid lock must not be greased.
