51 24 100 Removing and installing/replacing rear lid lock (upper section)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for rear lid.

Release screws (2) and feed out upper section of rear lid lock (3).

Disconnect plug connection (1).

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Use self-tapping screws.

Remove lock (1).

Lever out actuating rod (2) and remove upper section of rear lid lock (3).

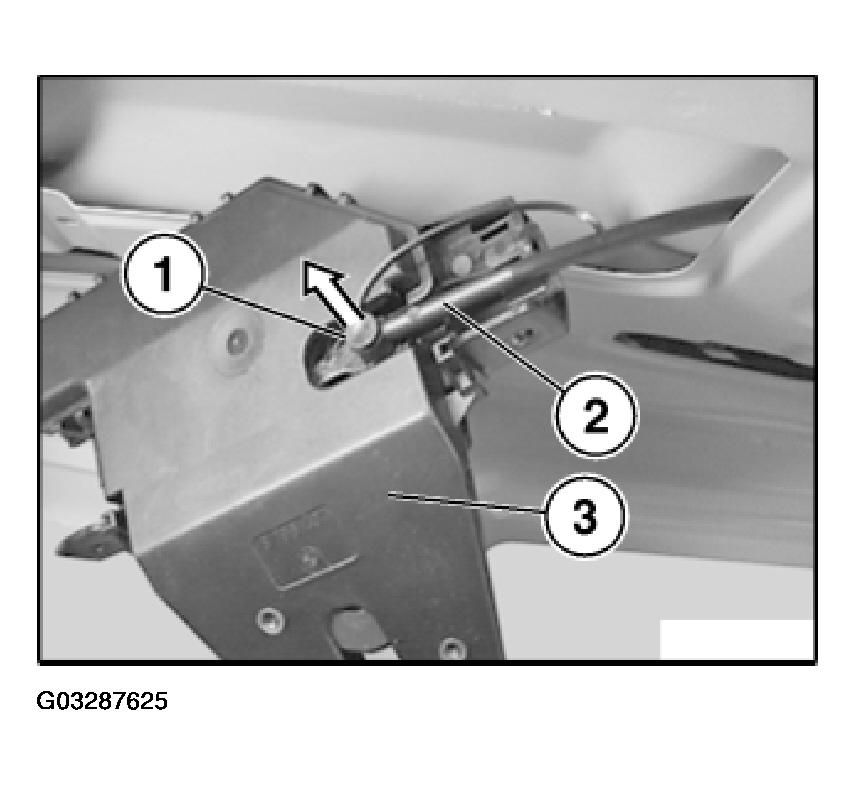

Fig 2: Levering Out Actuating Rod And Removing Upper Section Of Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Engage lock (1) correctly.

Installation:

Perform function check with trunk lid open.
