51 13 316 Removing and installing/replacing trim strip on roof gutter at left or right

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

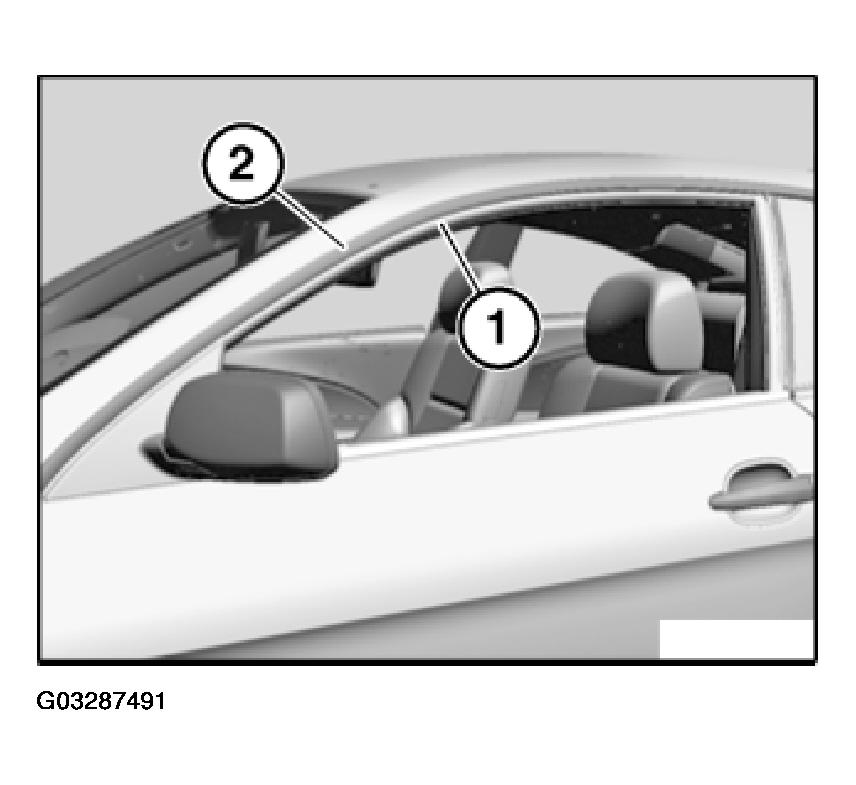

Detach mucket (1) in area of trim strip (2).

Fig 1: Detaching Mucket In Area Of Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure that body is not damaged.

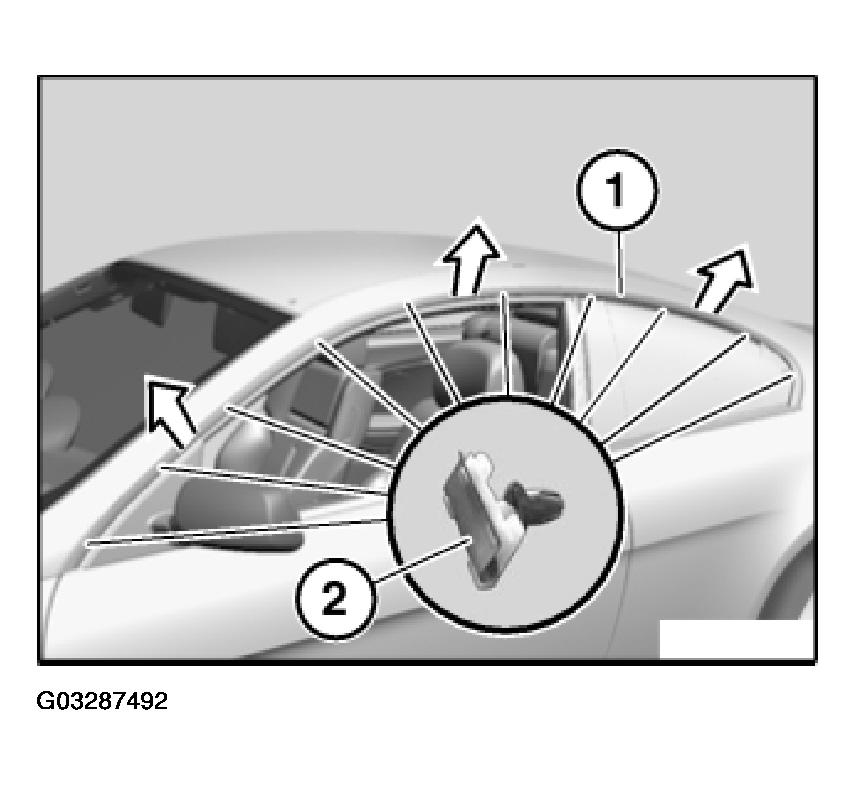

Start at front, pull off trim strip (1) in direction of arrow from clips (2).

Fig 2: Identifying Clips And Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To avoid leaks and noises, check all clips (2) for visible damage.

If necessary, replace faulty clips (2).

Installation:

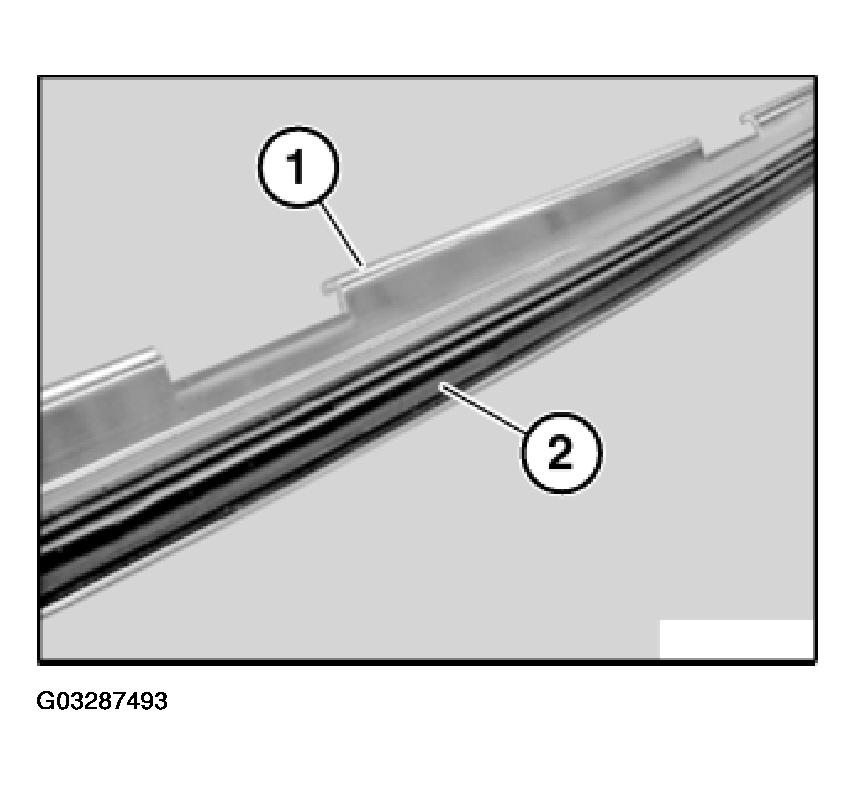

Make sure sealing strip (2) is correctly seated on trim strip (1).

Sealing strip (2) must not be damaged.

Fig 3: Identifying Correct Seating Of Sealing Strip On Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Carry trim strip by its middle section only (risk of damage)
Perform installation work with a second person helping
Prepositioning of trim strip
Ensure drip moulding runs parallel to side frame (risk of breakage)
