51 13 280 Removing and installing trim strip on roof frame at left or right

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63) .

00 9 321

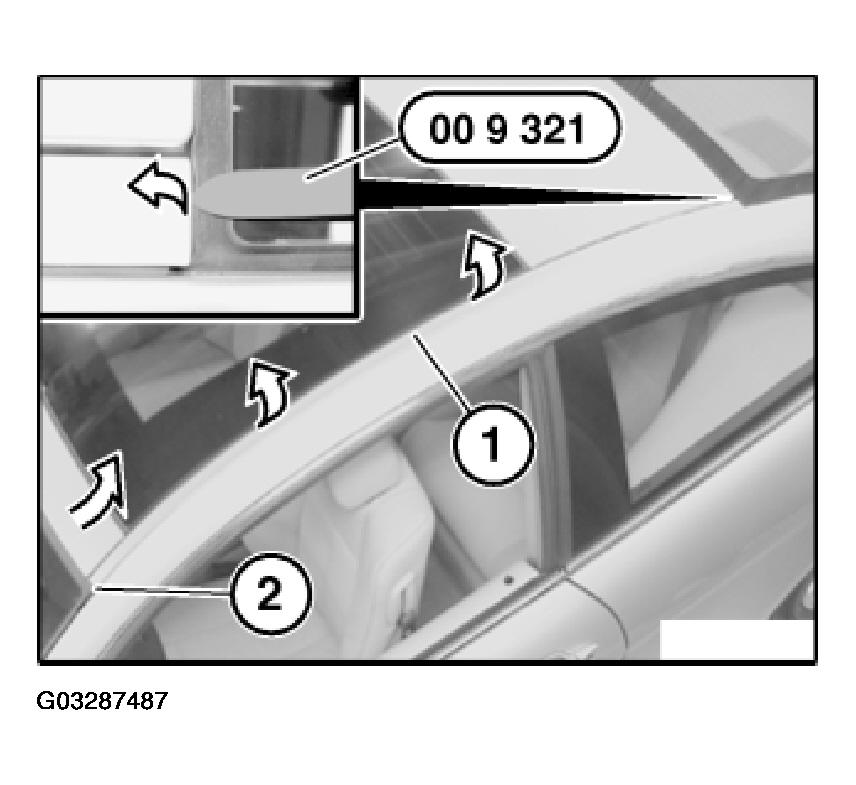

Lever out trim strip (1) with special tool 00 9 321 first at rear, unclip remainder up to front and pull out of seal (2) towards rear.

Fig 1: Levering Out Trim Strip With Special Tool 00 9 321

Courtesy of BMW OF NORTH AMERICA, INC.

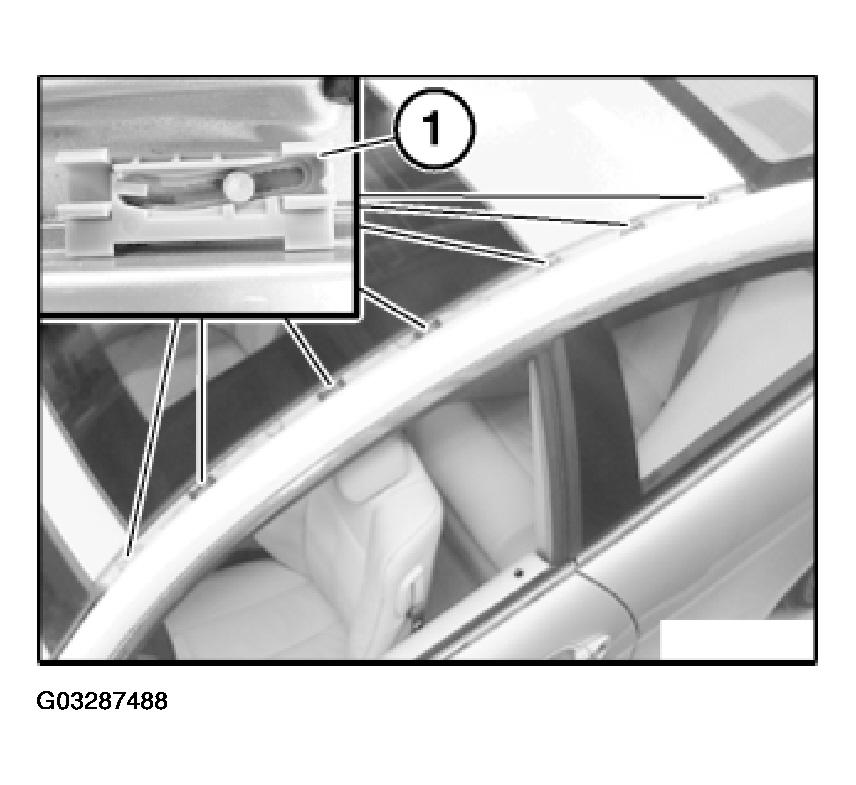

If necessary, replace defective clips (1) on roof outer skin.

Fig 2: Removing Defective Clips On Roof Outer Skin

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

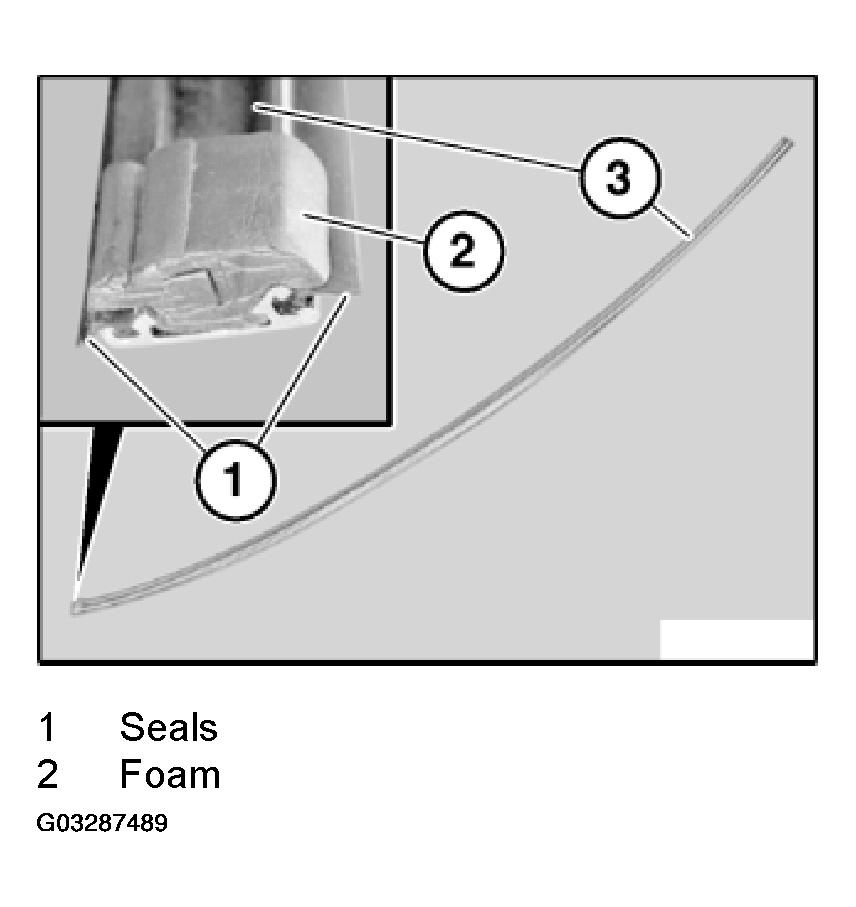

Following parts of trim strip (6) must not be damaged or missing:

Fig 3: Identifying Seals And Foam

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

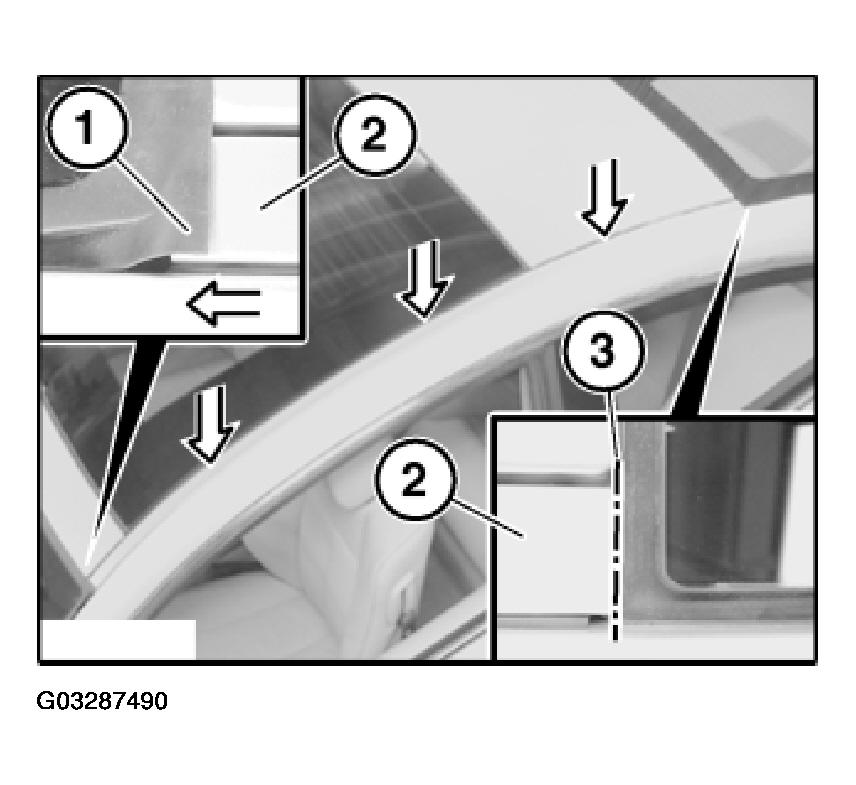

First push trim strip (2) at front into seal (1), clip in at rear flush with edge (3) and then clip in remainder.

Fig 4: Installing Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.
