51 13 001 Removing and installing/replacing front radiator grille, middle left or right

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove bumper trim

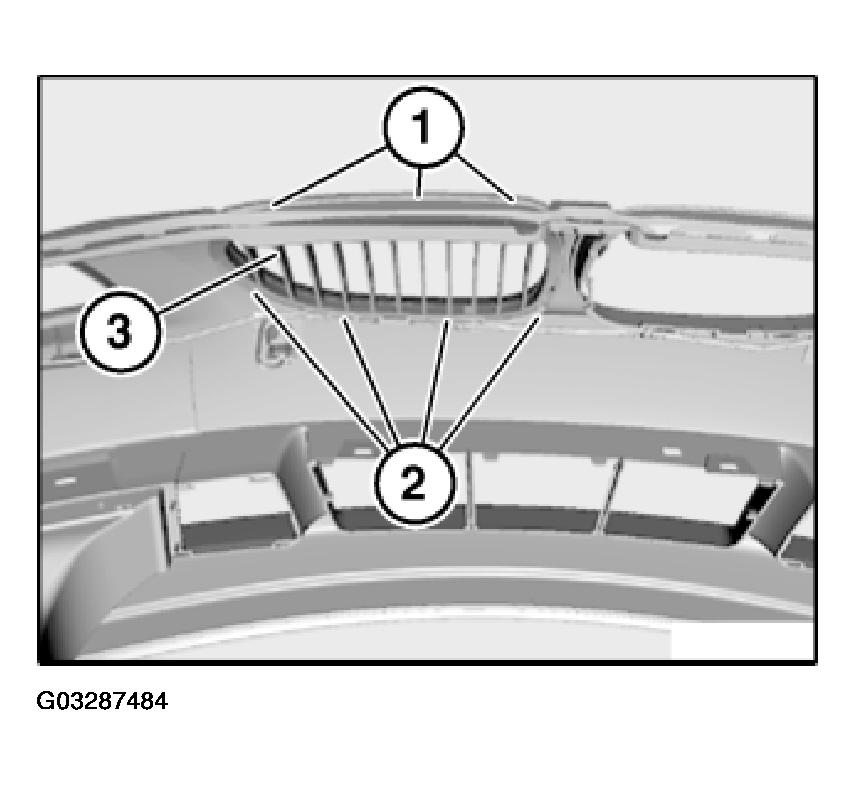

Lever out catches (1) and (2) and remove middle front grill (3) towards front.

Fig 1: Removing Middle Front Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All catches and guides on middle front grill must not be damaged.

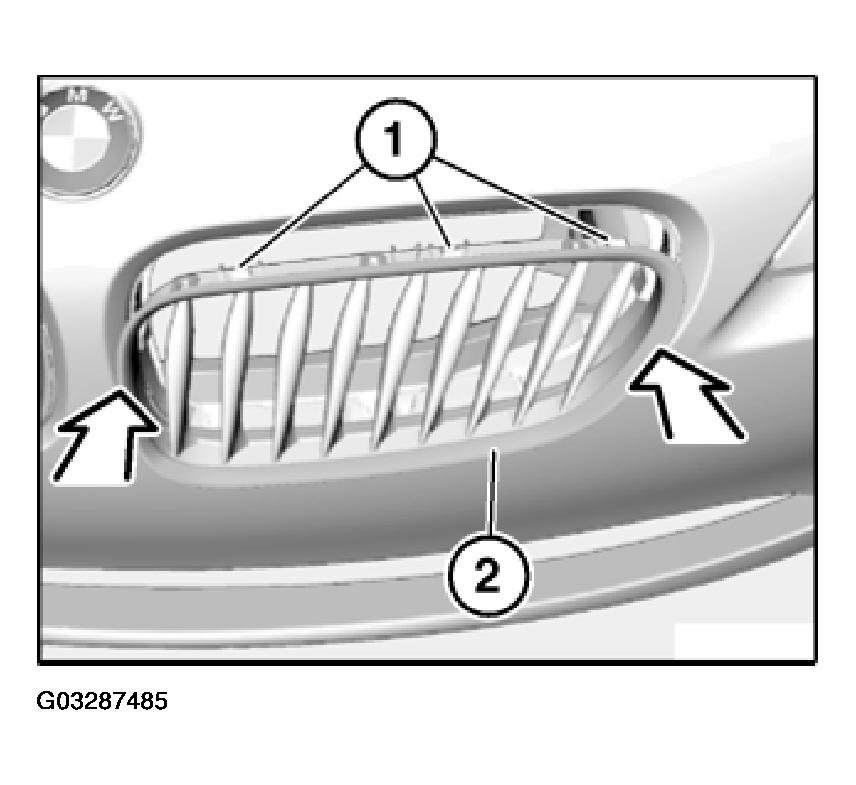

Press on chrome ring to push front radiator grill (2) into bumper trim.

Fixtures (1) must engage correctly.

Fig 2: Installing Front Radiator Grill Into Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following work step ends here: "Removing and installing middle left or right front radiator grill." Replacement:

Replace front radiator grill, middle left or right.
