51 13 ... Replacing front radiator grille, middle left or right

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Representation created using the E85 as an example. There may be differences in detail in the case of other vehicle models.

Lever out upper catches (3) and separate inner section (2) from chrome ring (1).

Fig 1: Levering Out Upper Catches And Separating Inner Section From Chrome Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

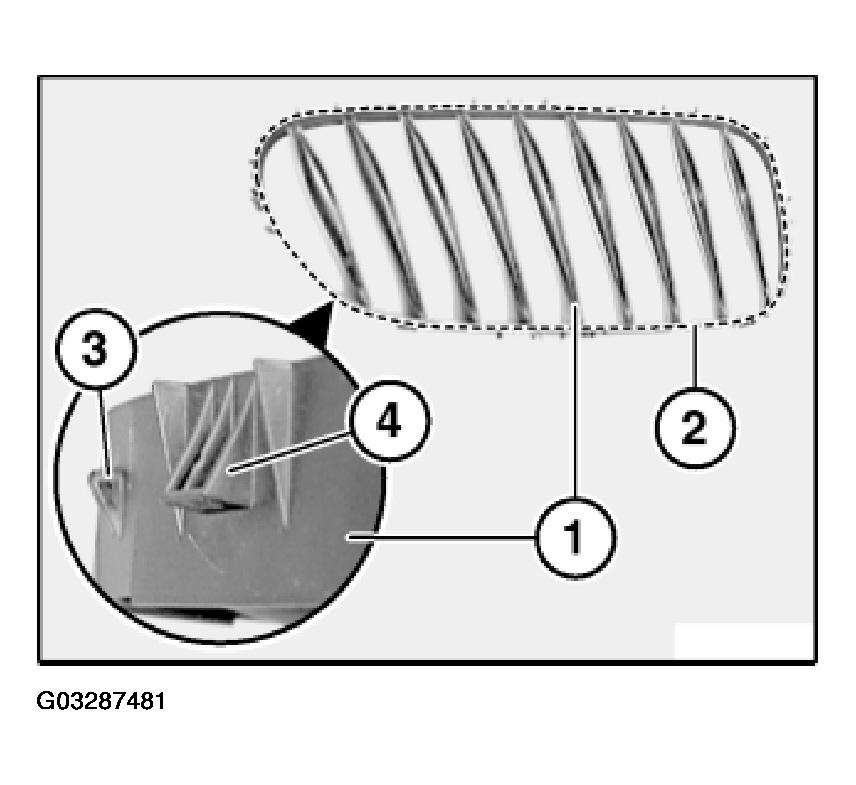

Check inner section (1) for damage.

Retaining lugs (3) and (4) along line (2) must not be damaged.

Fig 2: Checking Inner Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

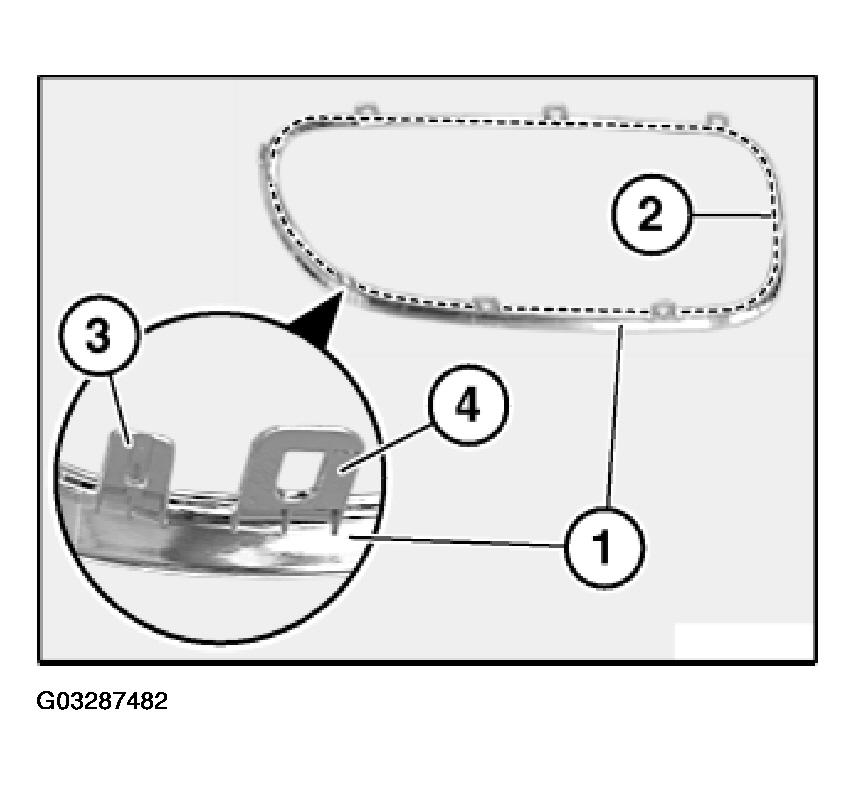

Check chrome ring (1) for damage.

Catches (4) and guides (3) along line (2) must not be damaged.

Fig 3: Checking Chrome Ring For Damage

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

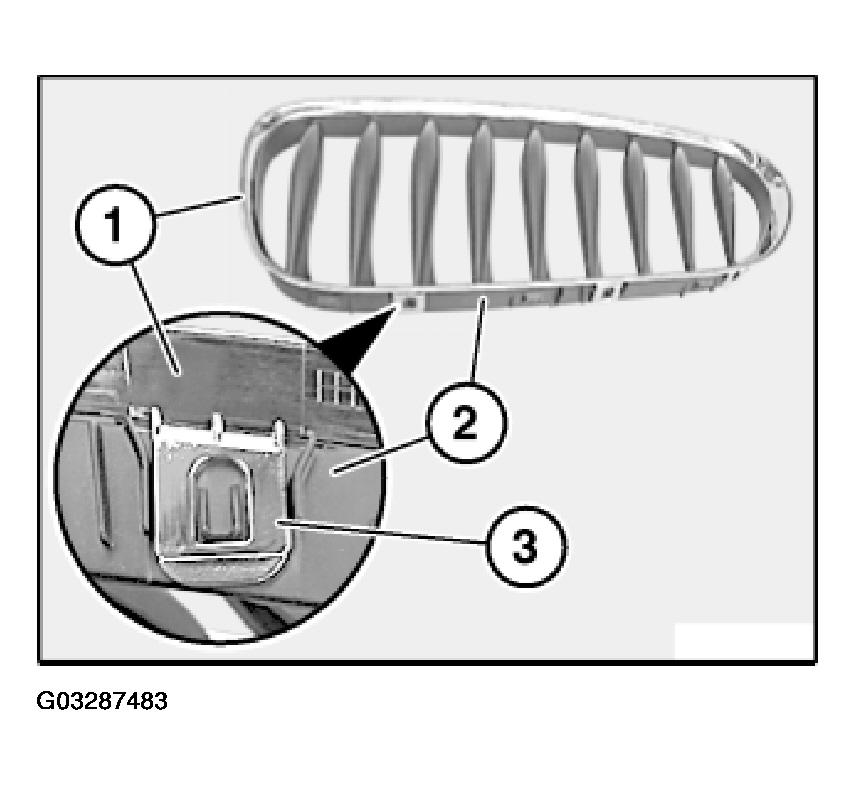

Assemble chrome ring (1) and inner section (2).

Make sure catch (3) is correctly assembled.

Fig 4: Assembling Chrome Ring And Inner Section

Courtesy of BMW OF NORTH AMERICA, INC.
