51 43 ... Removing and installing/replacing trim on armrest of left or right side trim panel

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63)

00 9 317

Lever out trim (1) on side trim panel (2) with special tool 00 9 317 in direction of arrow and remove.

IMPORTANT: Do not damage side trim panel (1) when removing.

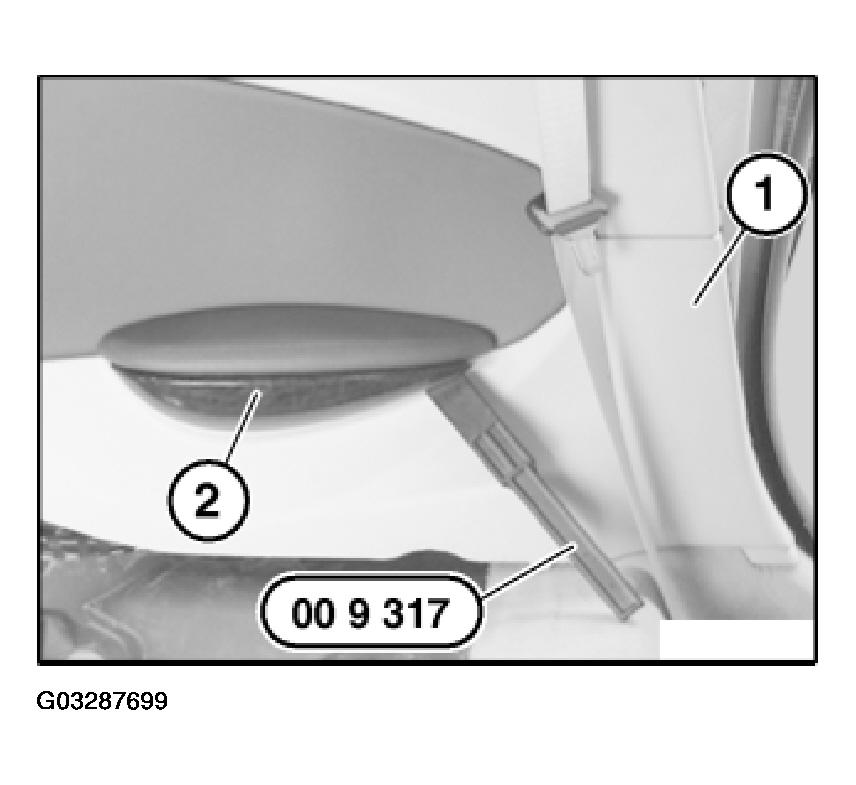

Fig 1: Removing Trim On Side Trim Panel With Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) must not be damaged.

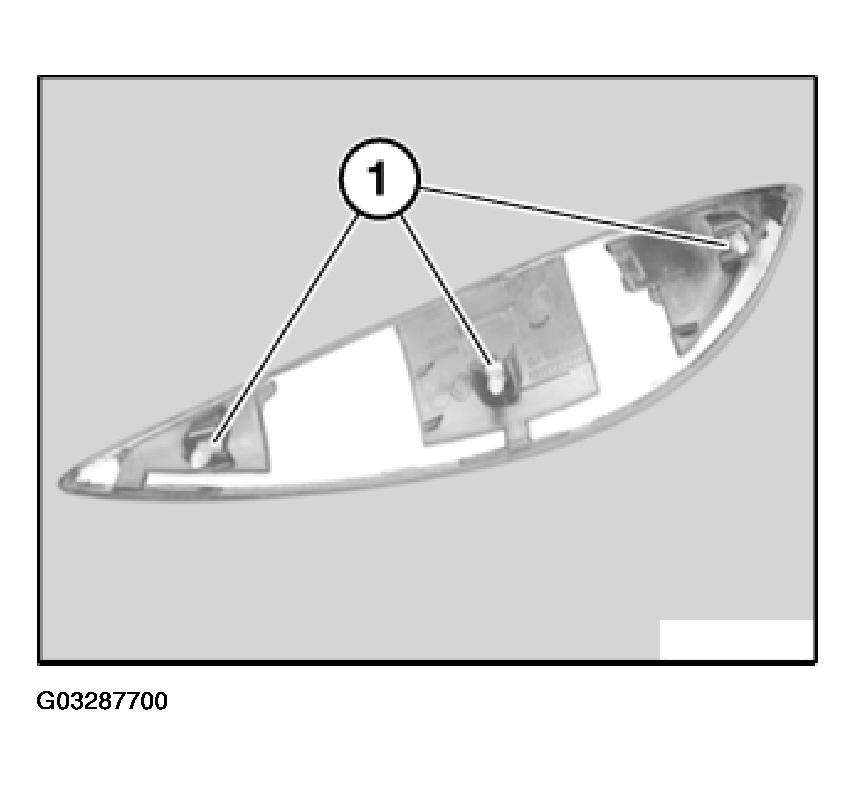

Fig 2: Identifying Guides

Courtesy of BMW OF NORTH AMERICA, INC.
