51 12 827 Removing and installing / replacing guide for bottom rear bumper

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim, refer to 51 12 050 REMOVING AND INSTALLING/REPLACING CARRIER FOR REAR BUMPER TRIM .

All models except M6:

Release nuts (1) on guide (2).

Remove guide (2).

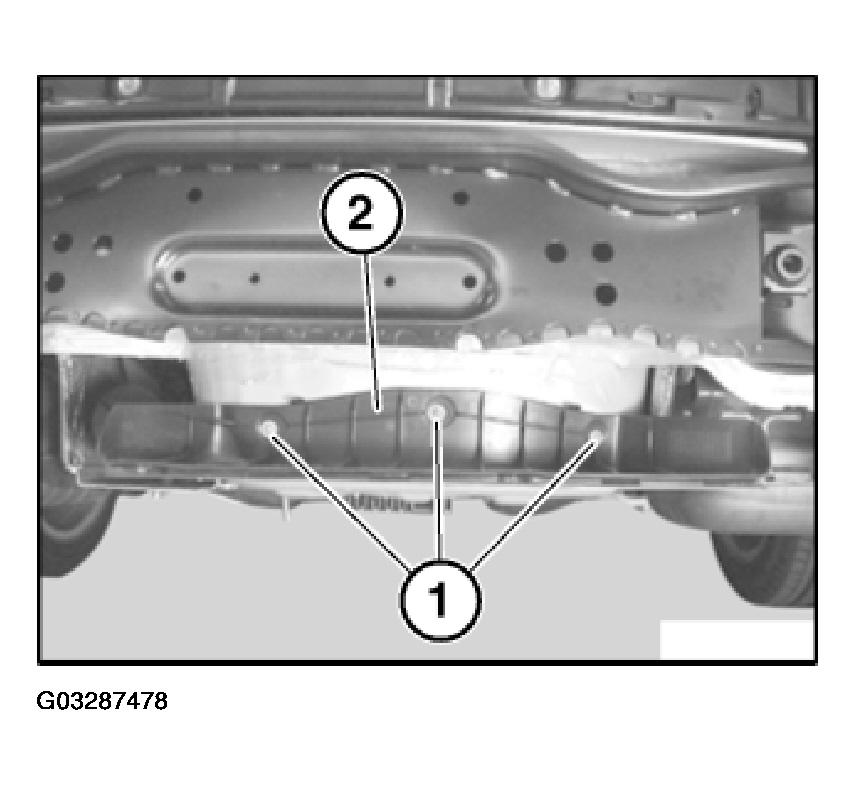

Fig 1: Removing Nuts And Guide (All Models Except M6)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty nuts (1).

M6 only:

Bend guide (1) downwards slightly and release nuts (2) behind.

Remove guide (1).

Installation:

If necessary, replace faulty nuts (2).

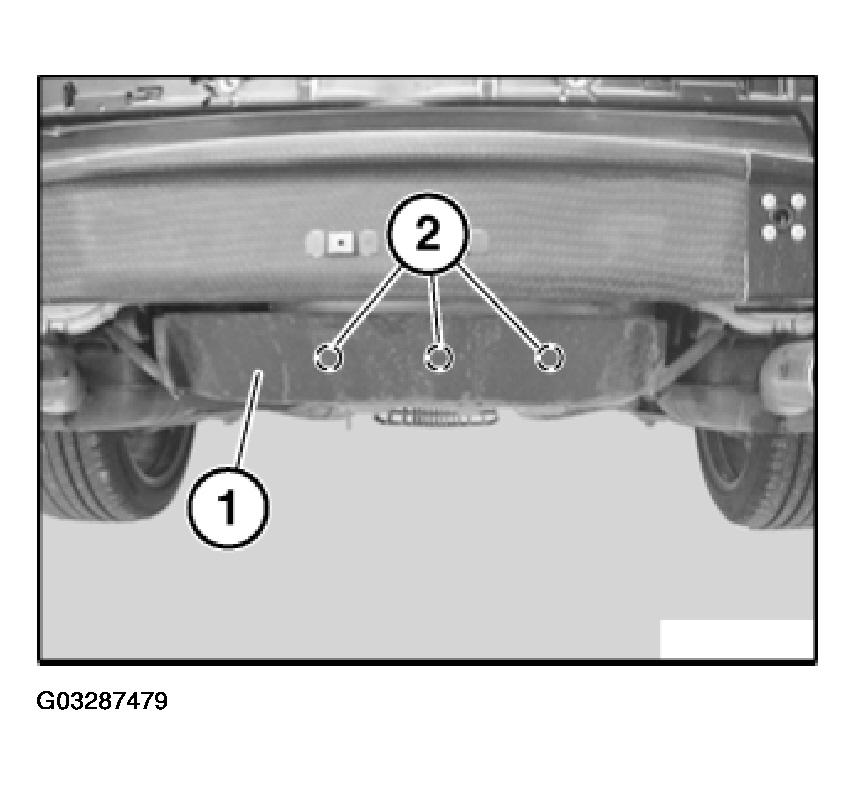

Fig 2: Removing Guide (M6 Only)

Courtesy of BMW OF NORTH AMERICA, INC.
