51 12 826 Removing and installing/replacing guide for rear bumper

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear bumper trim, refer to 51 12 050 REMOVING AND INSTALLING/REPLACING CARRIER FOR REAR BUMPER TRIM .

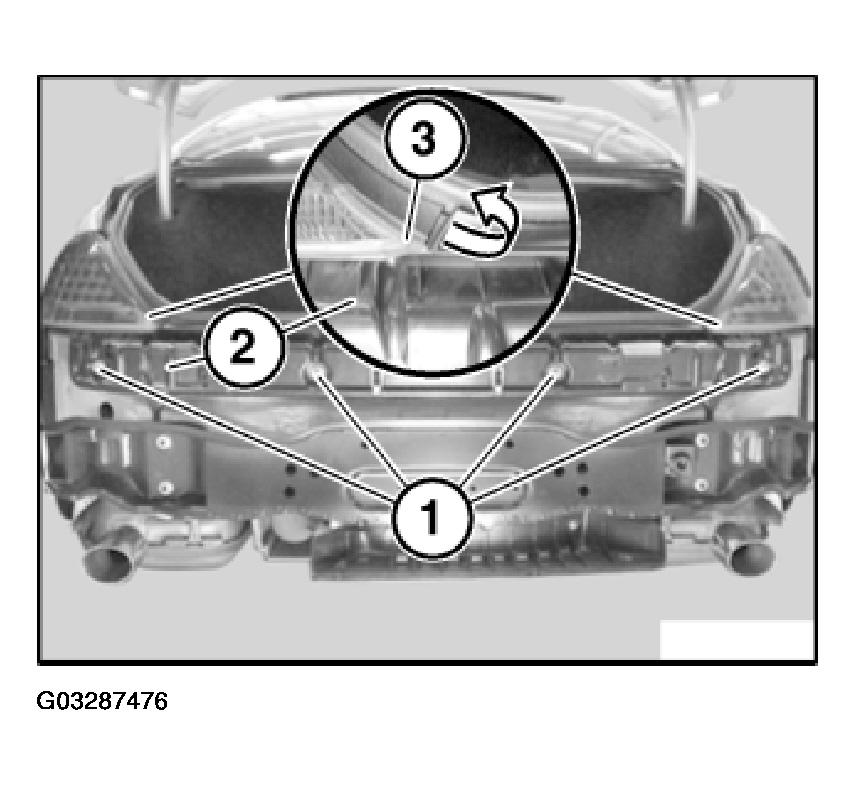

Unscrew nuts (1).

IMPORTANT: Carefully feed guide (2) out of rear lights (3) in direction of arrow (risk of damage).

Fig 1: Removing Guide Out Of Rear Lights

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

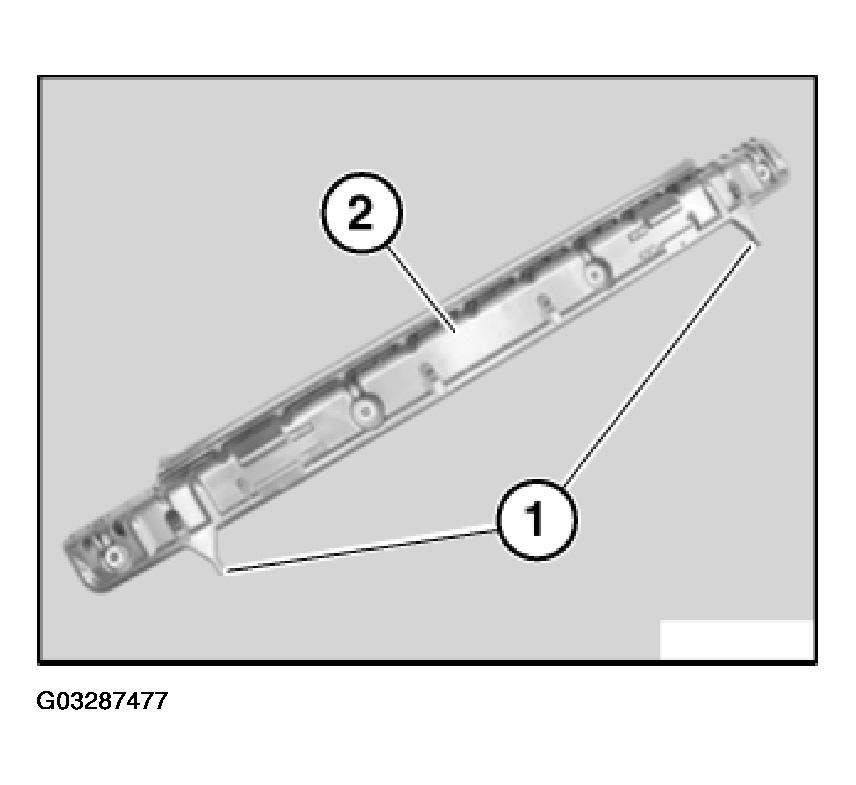

Rests (1) on guide (2) must not be damaged.

Fig 2: Identifying Rests On Guide

Courtesy of BMW OF NORTH AMERICA, INC.
