51 46 006 Removing and installing/replacing trim for rear parcel shelf

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for roof pillar at rear left/right
Partially detach seat back

Release expander rivets (1) on rear parcel shelf (2).

Installation:

If necessary, replace faulty expander rivets (1).

Raise rear parcel shelf (2) and release plug connection on left/right mid-range speakers.

Feed out rear parcel shelf (2) over guides (3) in direction of arrow.

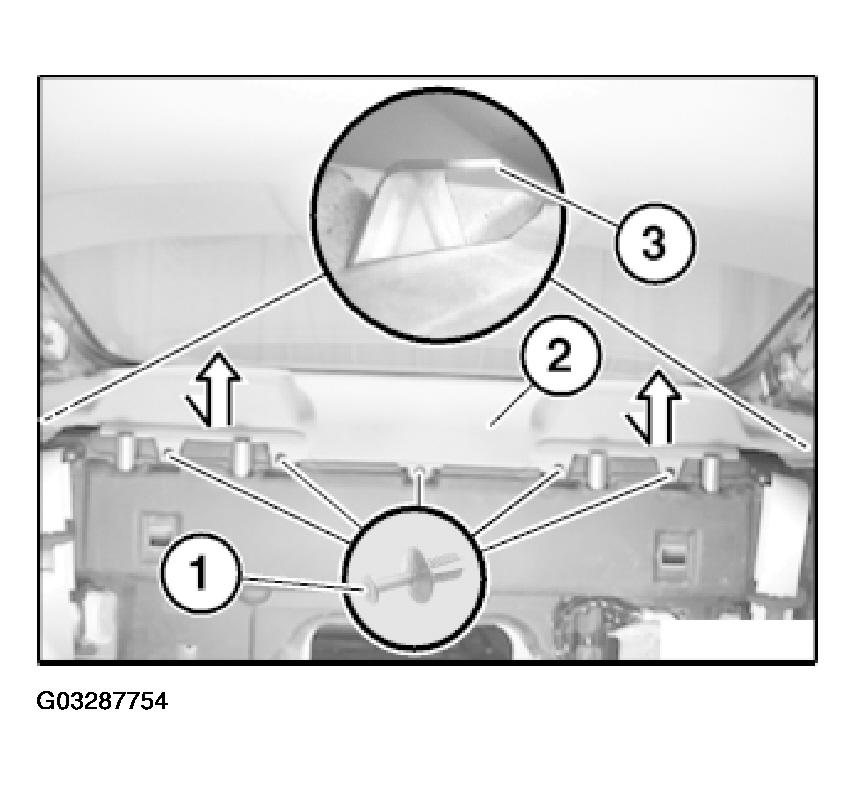

Fig 1: Removing And Installing/Replacing Trim For Rear Parcel Shelf

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Removing trim for rear parcel shelf" ends here.

Replacement:

Remove left/right mid-range speakers.
