51 16 201 Replacing storage compartment

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove storage compartment
Remove centre armrest carrier
Remove cup holder mounting
Remove controller
Remove servodrive for storage compartment
Remove button unit

Pull off trim (1) on left/right in direction of arrow.

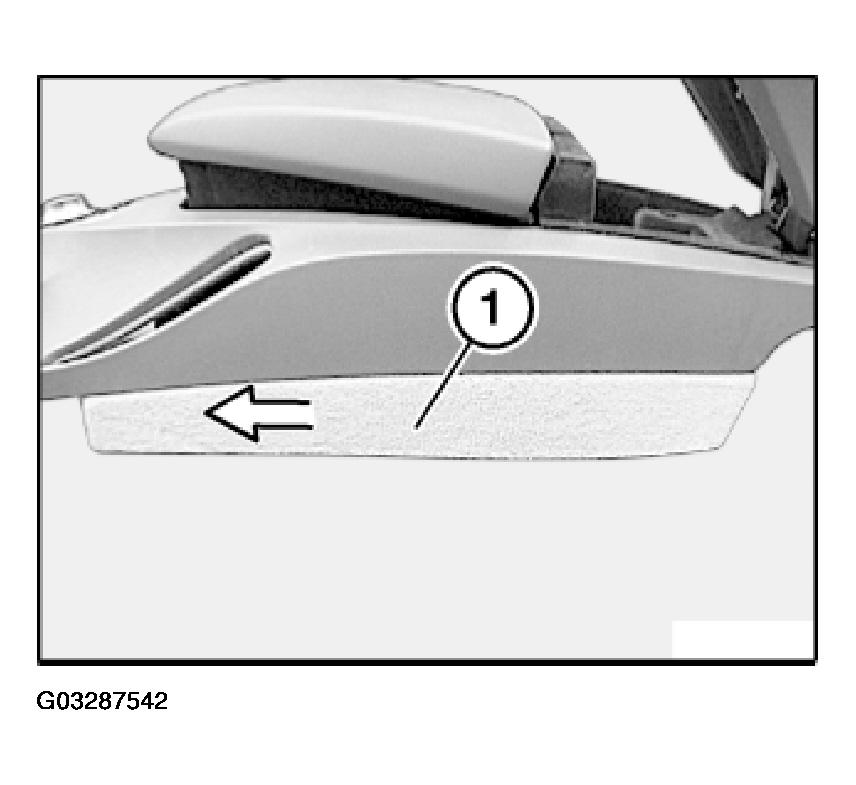

Fig 1: Removing Trim On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

Release retainers (1) and remove trim (2).

Feed cable (3) out of storage compartment.

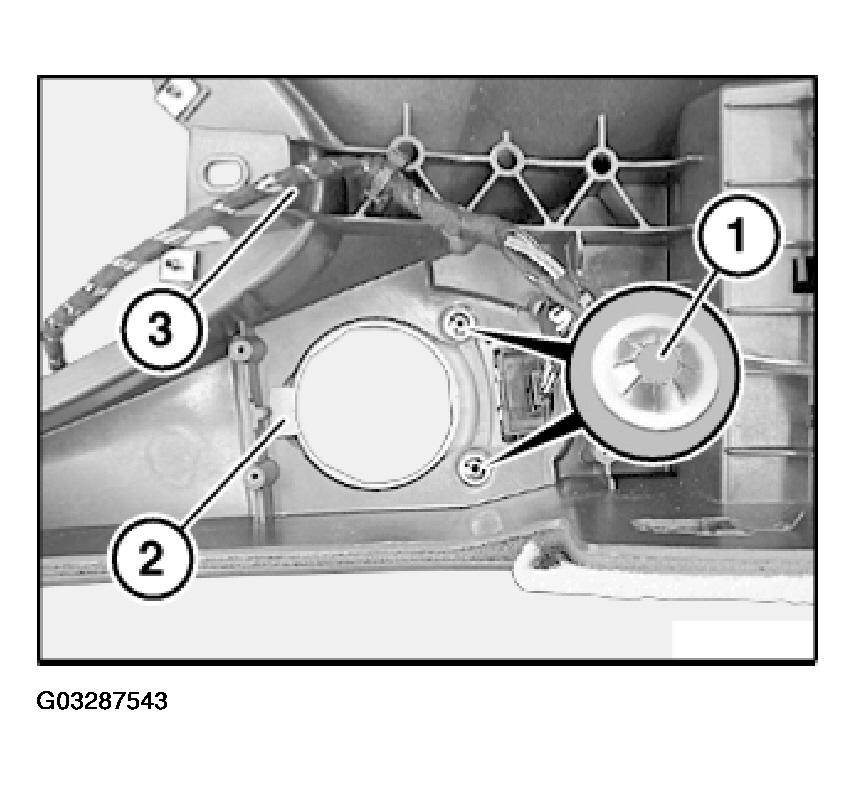

Fig 2: Removing Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
