51 16 200 Removing and installing storage compartment
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required
NOTE:
For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63)
.
- 00 9 317
Necessary preliminary tasks:
- Remove trim for preselector lever (gear lever)
- Remove trim for storage compartment
- Remove central trim for instrument panel
- Remove rear seat
- Remove rear cup holder
Specification with telephone:
- Disconnect plug for eject box
Fold rear centre armrest back.

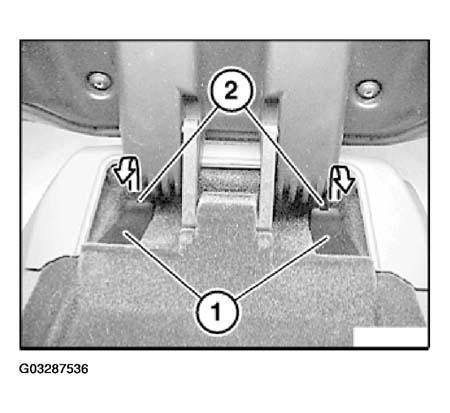

Unclip covers (1) on openings (2) in direction of arrows and release screws underneath.
Installation:

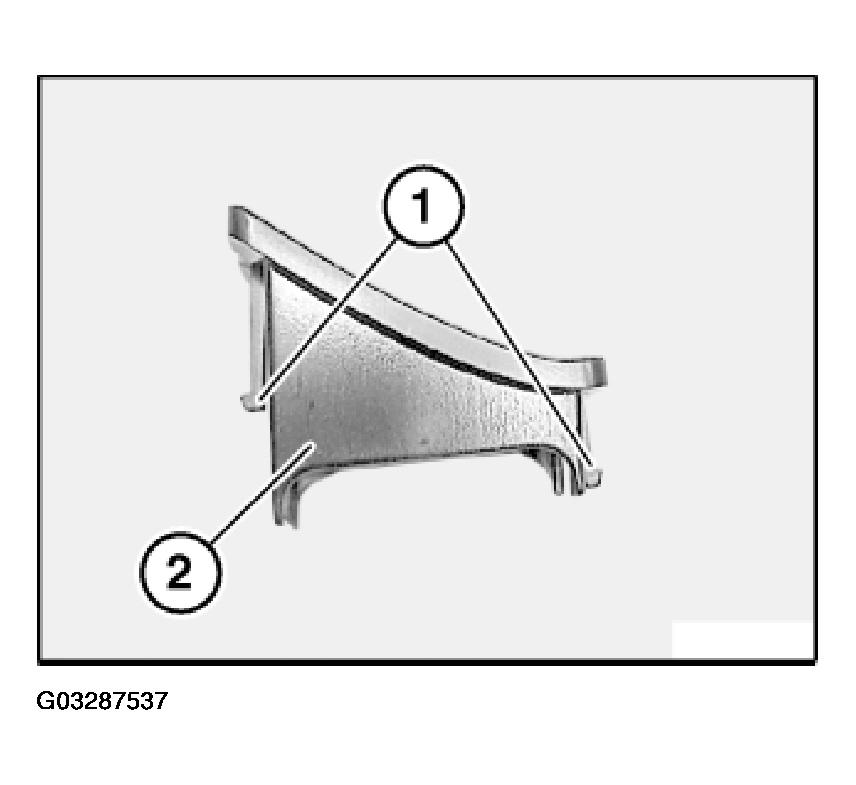

Catches (1) on cover (2) must not be damaged.

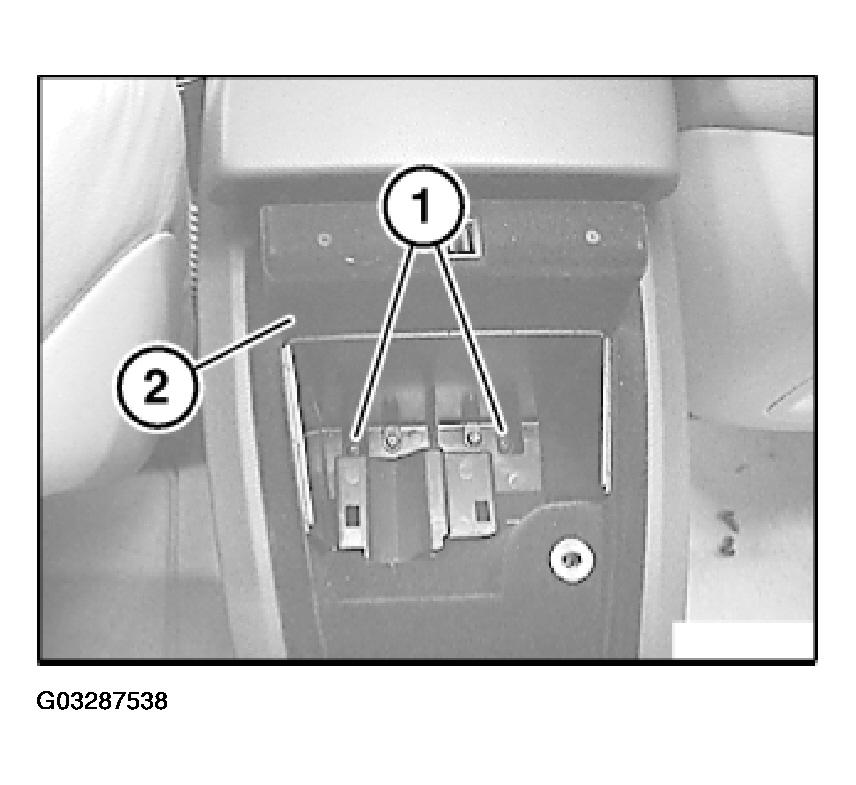

Release screws (1) on storage compartment (2).

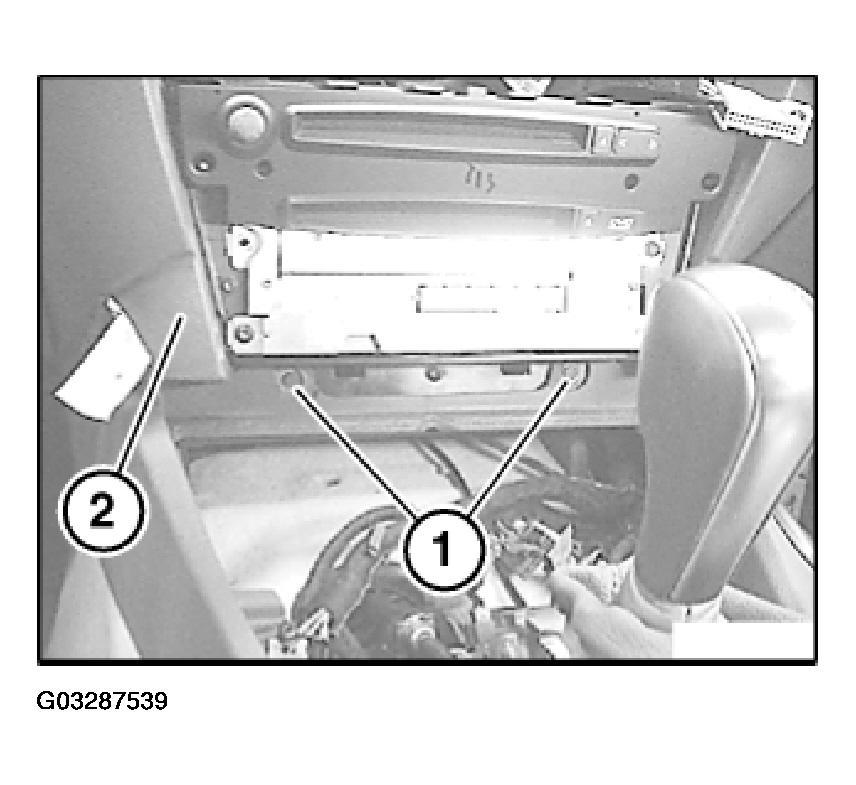

Release screws (1) on instrument panel (2).

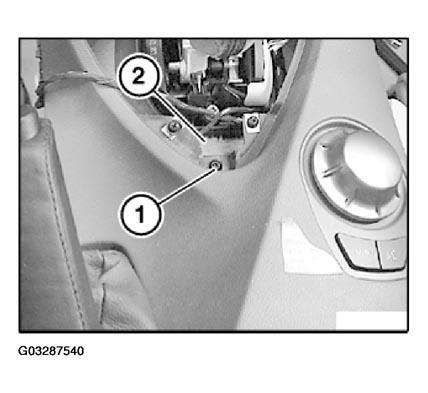

Release screw (1) on transmission tunnel (2).

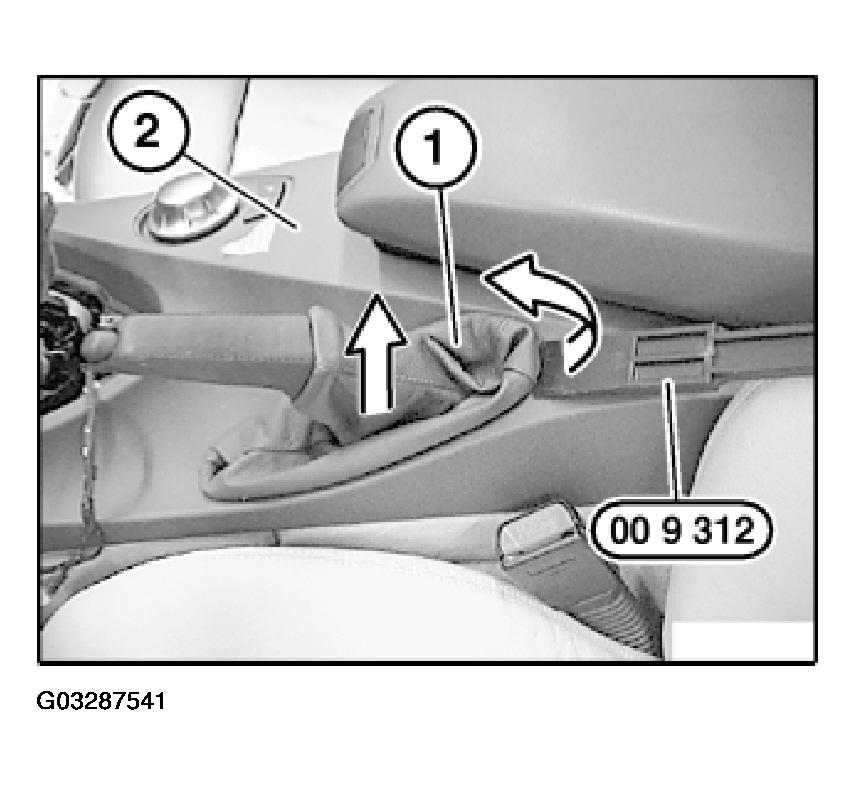

Unclip gaiter (1) upwards with special tool 00 9 317.
Raise storage compartment (2) and if necessary disconnect plug connections from below.
Feed out storage compartment (2) past gaiter (1) and remove towards top rear.
