51 16 ... Removing and installing/replacing mounting for cup holder at front

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove storage compartment

Release screws (1).

Release holder (2) from trim (3).

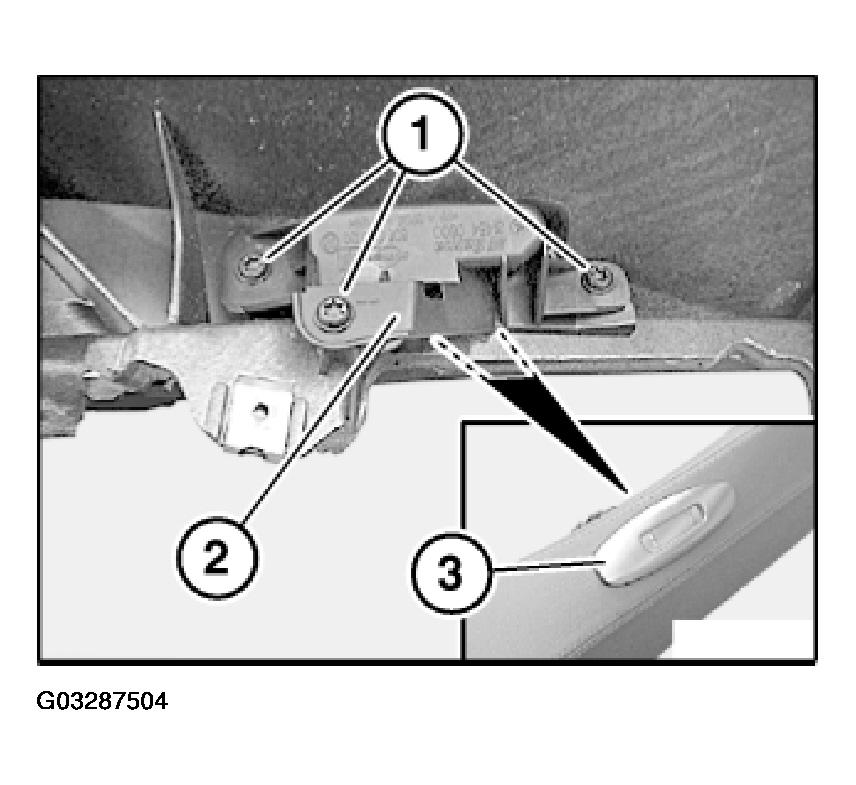

Fig 1: Releasing Holder From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts must not be damaged or missing:

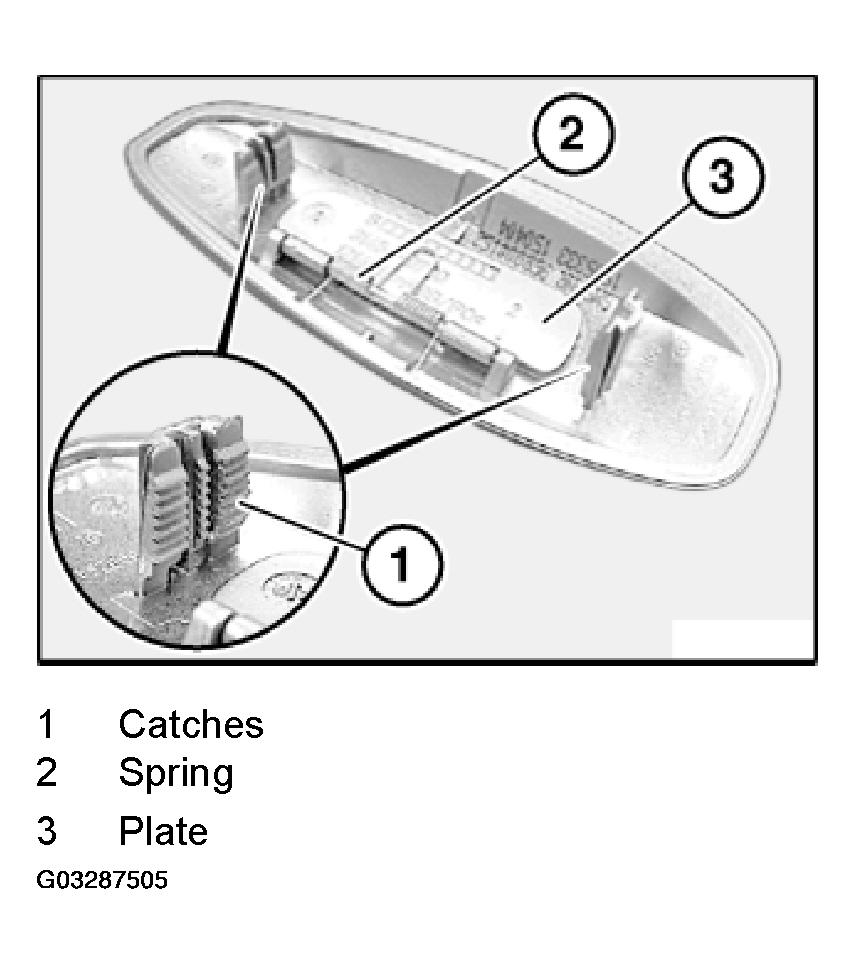

Fig 2: Identifying Catches, Spring And Plates

Courtesy of BMW OF NORTH AMERICA, INC.
