51 16 ... Removing and installing/replacing centre armrest carrier

Necessary preliminary tasks:

• Remove storage compartment

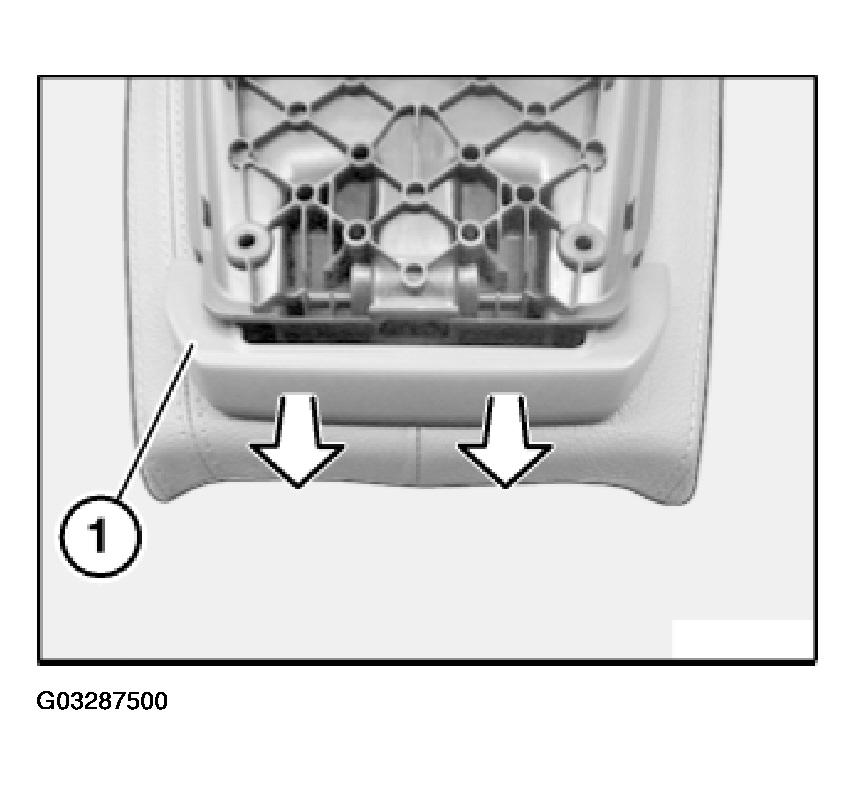

Detach hinge cover (1) in direction of arrow.

Fig 1: Detaching Hinge Cover

Courtesy of BMW OF NORTH AMERICA, INC.

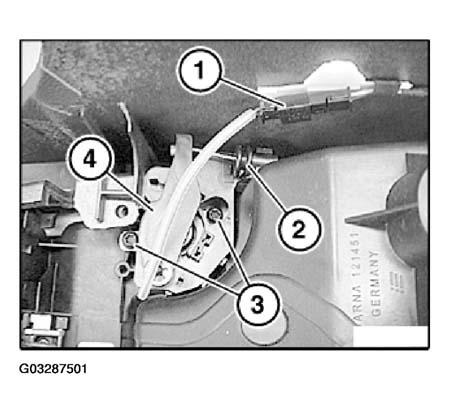

Disconnect connector (1).

Disconnect Bowden cable (2).

Release screws (3) and remove lock mechanism (4).

Fig 2: Removing Lock Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

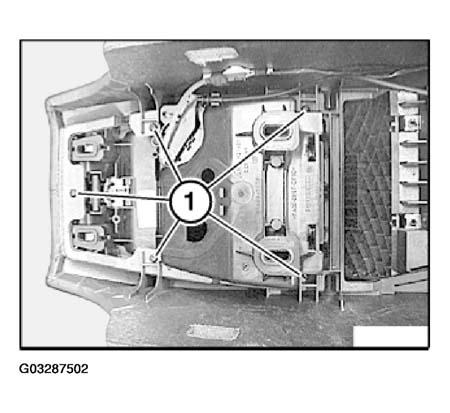

Release screws (1).

Fig 3: Releasing Screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

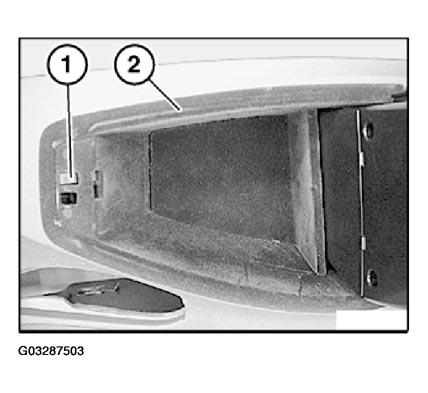

Depress actuator (1) for centre armrest and remove centre armrest carrier in upwards direction.

Fig 4: Depressing Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• Remove cover for centre armrest
• Remove lock cylinder for storage box
• If necessary, remove eject box.
