51 23 110 Removing and installing/replacing left hood/bonnet lock

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Unclip coupling (1) from side panel.

Open cover (2).

Lever cable (3) out of coupling (1).

NOTE: The operation "Disconnect cable for hood/bonnet locks" ends here.

Fig 1: Removing Cable Out Of Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screws (1).

Feed out hood/bonnet lock (2) with cable (3) in direction of arrow.

Fig 2: Removing Hood/Bonnet Lock With Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cable (1) from hood/bonnet lock (2).

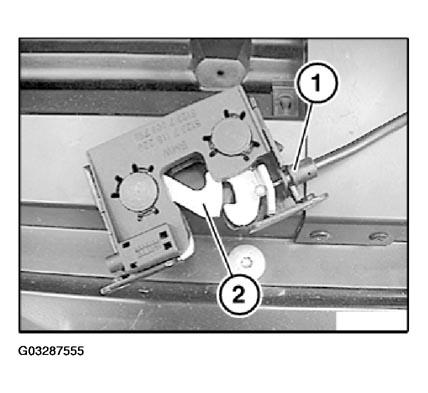

Fig 3: Disengaging Cable From Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.
