51 11 701 Replacing left or right bracket for front bumper

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim, refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

Release screws (1).

Remove holder (2) towards bottom.

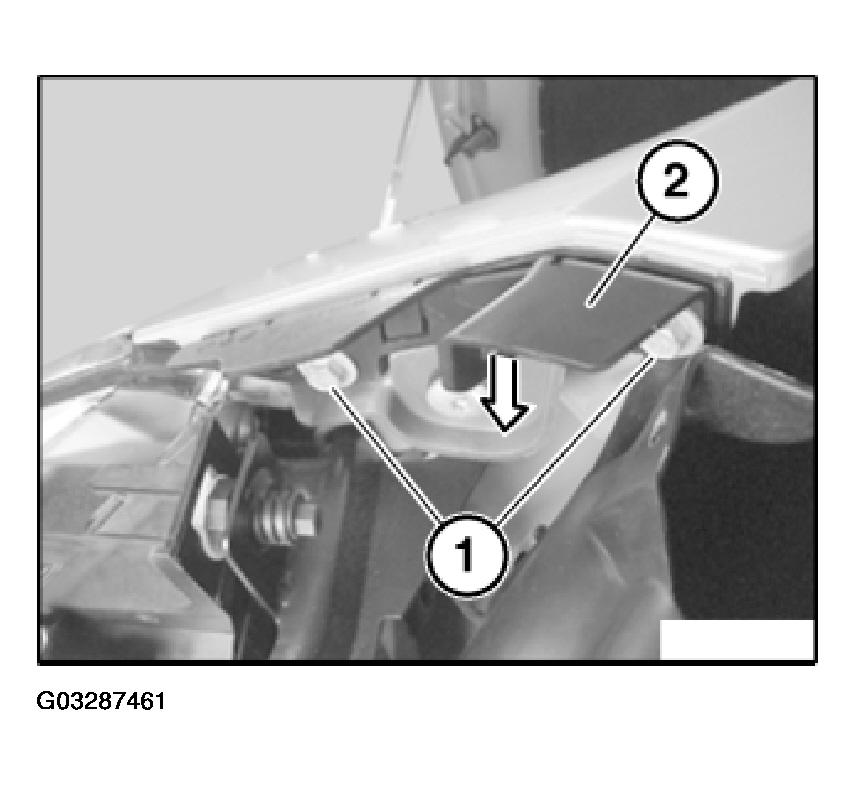

Fig 1: Removing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on holder (2) must not be damaged.

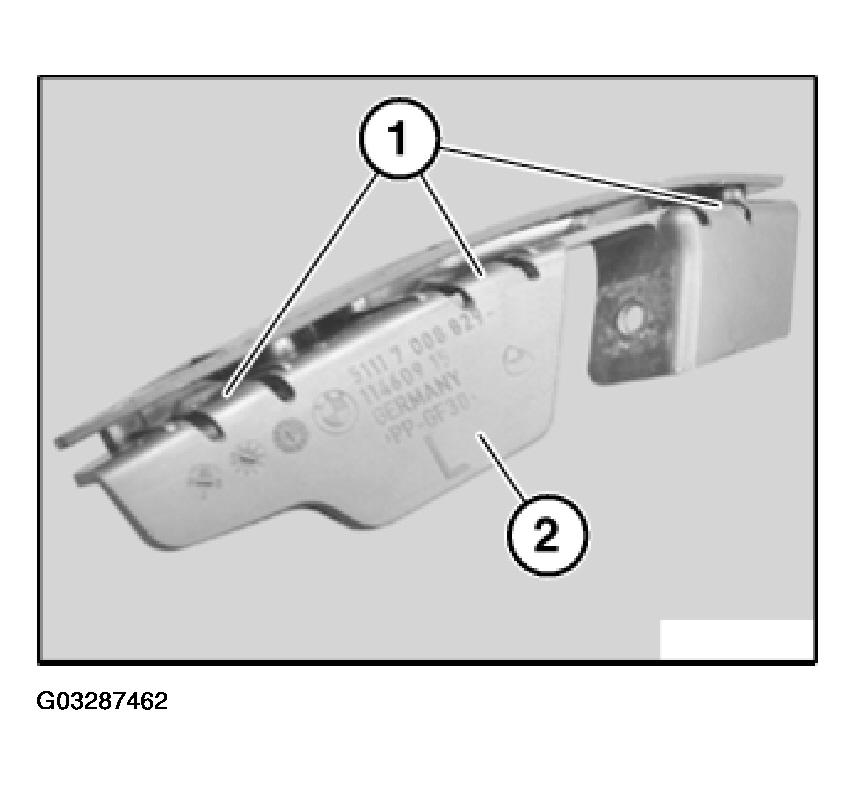

Fig 2: Identifying Catches On Holder

Courtesy of BMW OF NORTH AMERICA, INC.
