51 32 211 Replacing front left or right rubber guide for left or right door window

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear-view mirror on front door
Remove door window glass

Release clip (1).

Pull rubber guide (2) out of window guide rail.

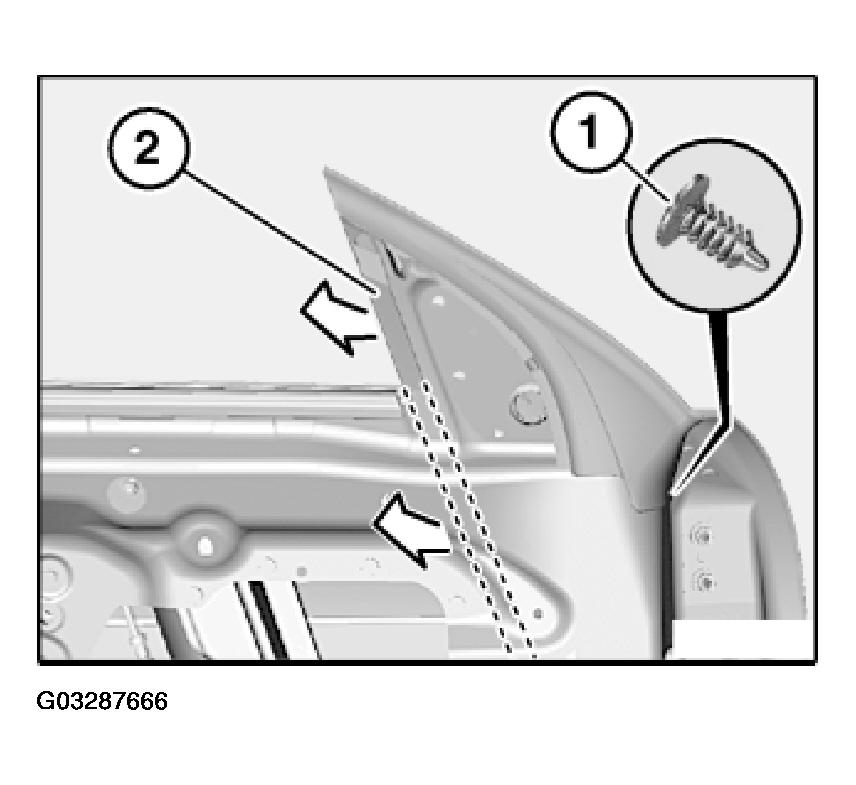

Fig 1: Pulling Rubber Guide Out Of Window Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Moisten rubber guide (2) with water before fitting.

Insert rubber guide (2) at front/bottom into window guide rail.

Remove rubber guide (1) in direction of arrow from front door.

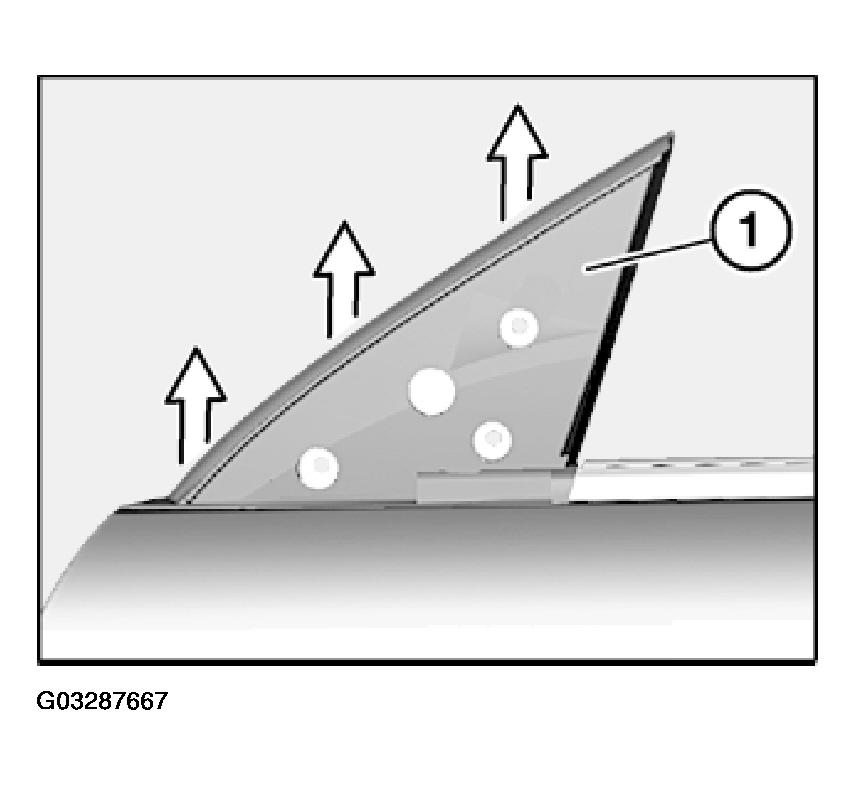

Fig 2: Removing Rubber Guide From Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber guide (1) must not be damaged in corners (2).

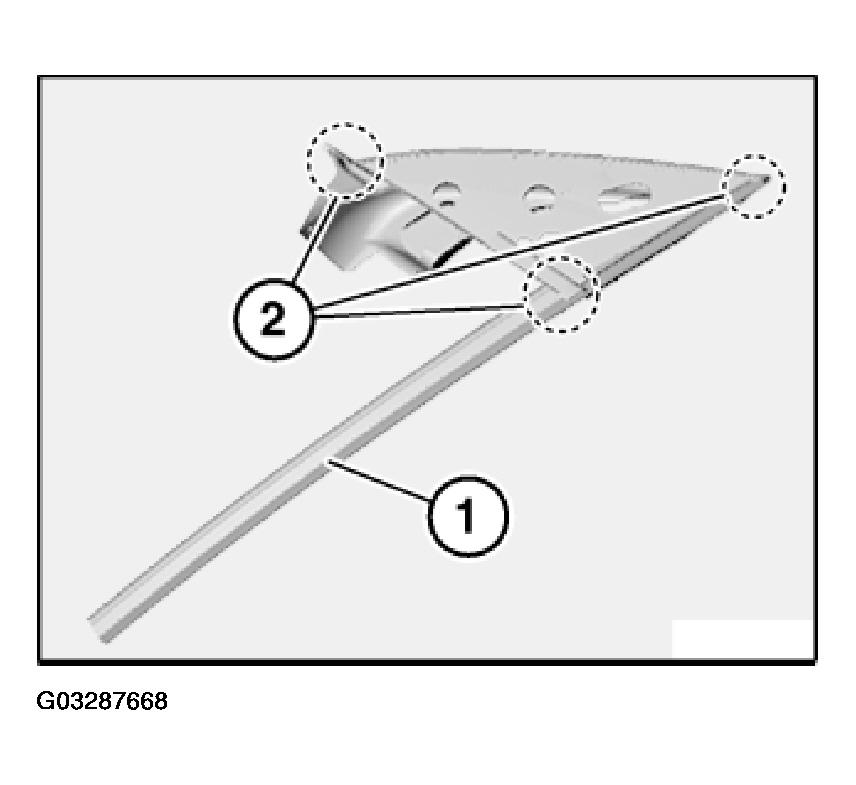

Fig 3: Checking Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.
