51 48 001 Removing and installing/replacing insulation lining on hood/bonnet

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Illustration created using the E87 as an example. There may be differences in detail in the case of other vehicle models.

Release threaded rivets (1) on insulation lining (2).

Remove insulation lining (2).

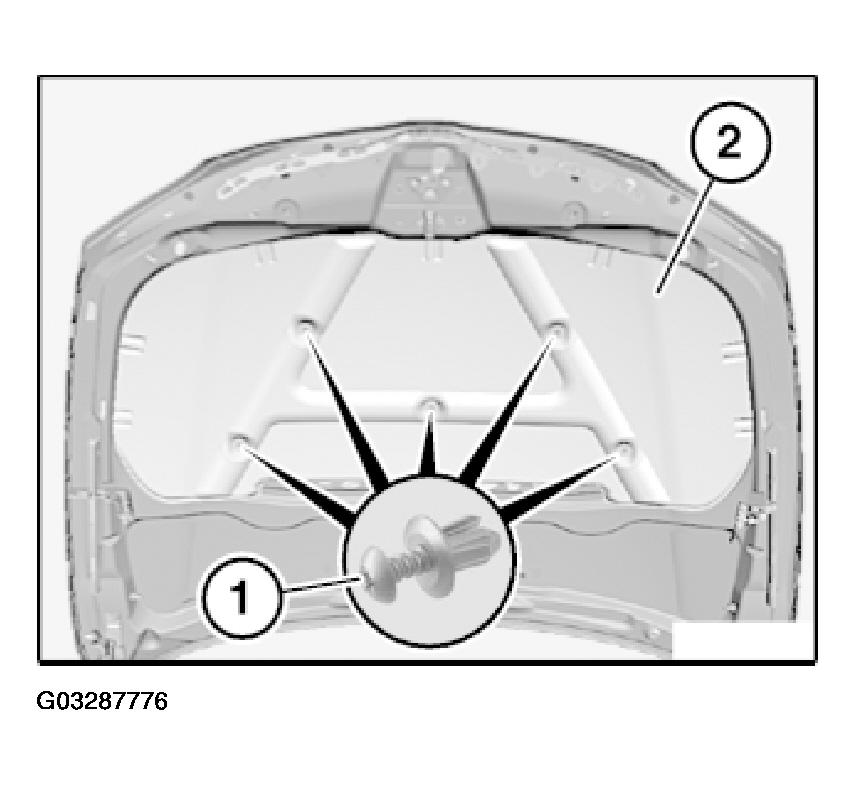

Fig 1: Removing And Installing/Replacing Insulation Lining On Hood/Bonnet

Courtesy of BMW OF NORTH AMERICA, INC.
