51 14 110 Removing and installing/replacing rear model designation

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The "Instructions for number/letter combination cementing" serve as the basis for these repair instructions and must be followed without fail.

Fitting dimensions (E63, E64):

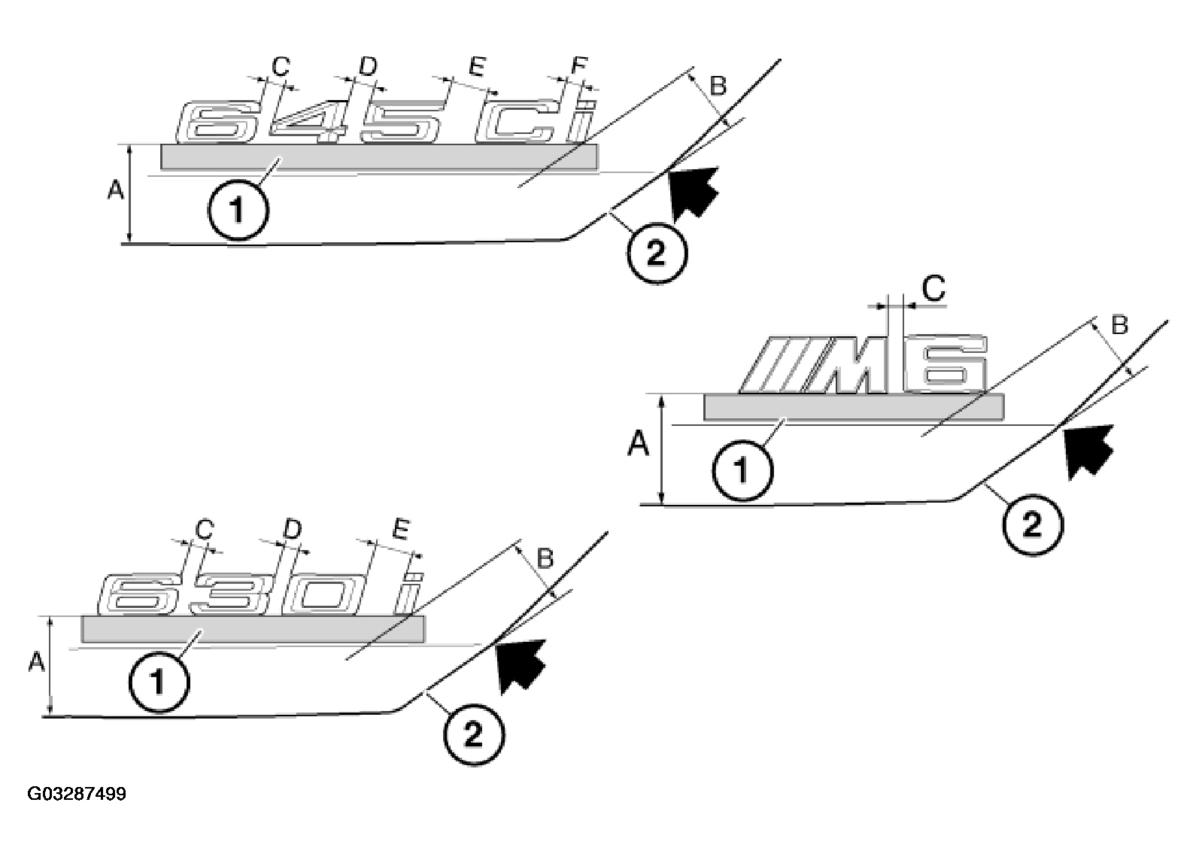

Fig 1: Identifying Fitting Dimensions Of Rear Model Designations

Courtesy of BMW OF NORTH AMERICA, INC.

Stick on adhesive tape (1) up to top edge "A". Mark measurement "B" from edge of rear lid (2) on adhesive tape (1).

Dimensions:

NOTE: E63, E64 (without M6) A = 50 mm B = 36 mm

M6 A = 45 mm B = 54 mm

NOTE: Measurements C, D, E and F are for information purposes only, as determined by carrier film. 630 i: C = 6 mm, D = 7.0 mm, E = 22 mm, 645 Ci: C = 7.5 mm, D = 11 mm, E = 20 mm, F = 7.5 mm, M6: C = 7.5 mm
