51 14 000 Removing and installing/replacing front BMW badge

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

NOTE: For special tools, refer to BODY EQUIPMENT - SPECIAL TOOLS - 645CI (E63) .

00 9 318

Lever out badge with special tool 00 9 318 and remove towards top.

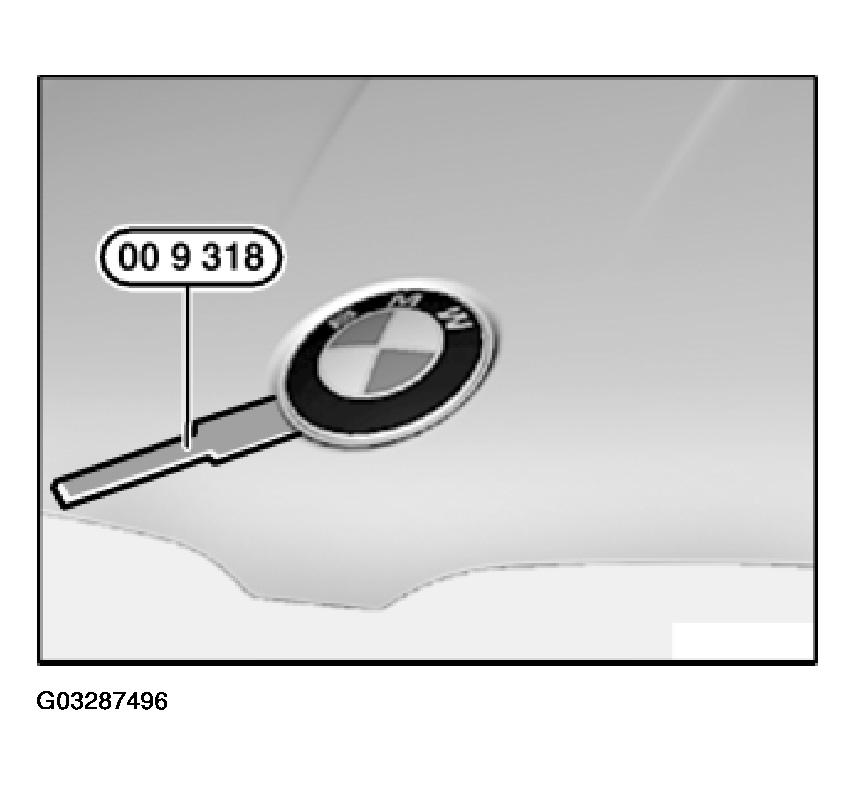

Fig 1: Removing Badge With Special Tool 00 9 318

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of badge (1) must not be damaged or missing:

(2) Guide pins

(3) Grommets

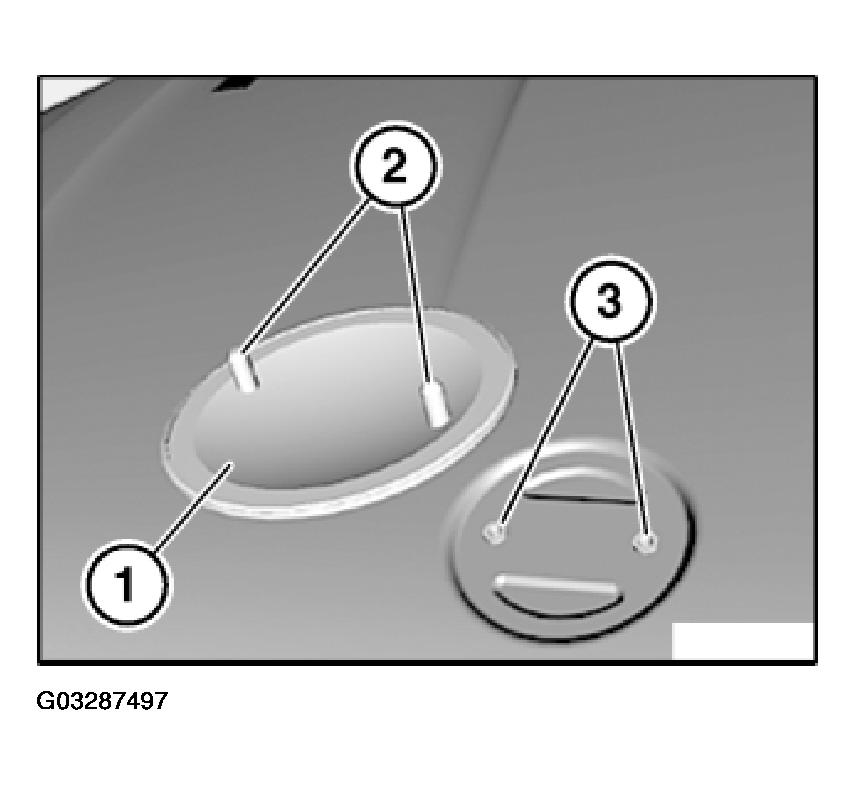

Fig 2: Identifying Guide Pins And Grommet

Courtesy of BMW OF NORTH AMERICA, INC.
