37 14 610 Removing and installing/replacing transversal-acceleration sensor

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

IMPORTANT: Do not kink floor panelling under any circumstances!

After installation:

Carry out following steps with BMW diagnosis system.
- Learn sensor parameters
- Learn sensor zero point

Necessary preliminary tasks:

Remove right front seat
Lift floor panelling and fold back to one side

Release screws (1).

Tightening torque 8 N.m.

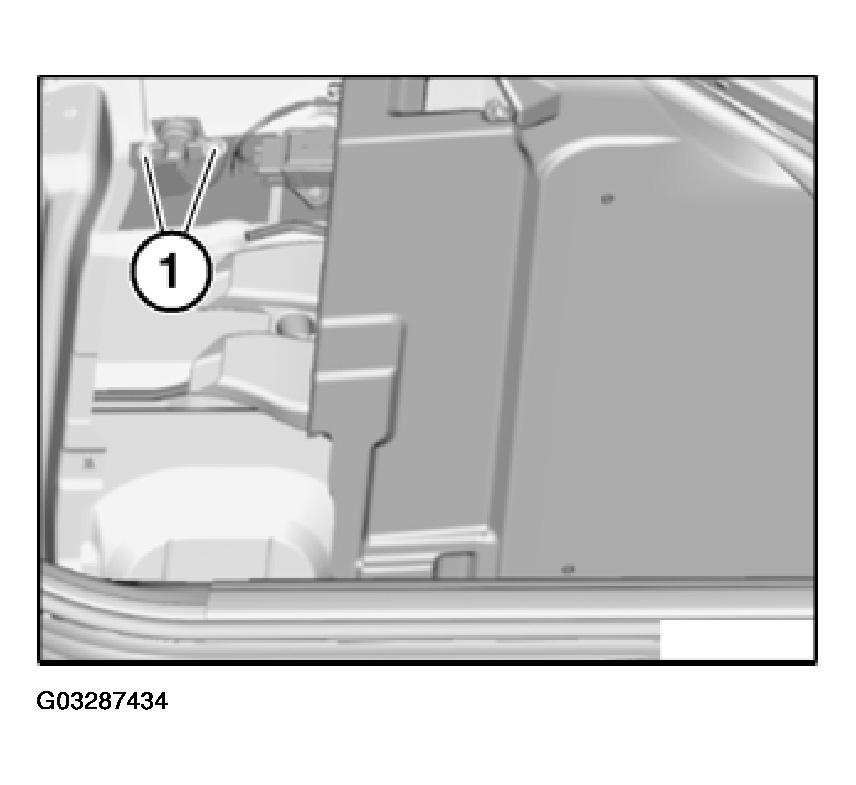

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.
