37 14 512 Replacing rear ride-height sensor

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

After installation:

E61: Carry out ride-height calibration
Check headlight adjustment, correct if necessary

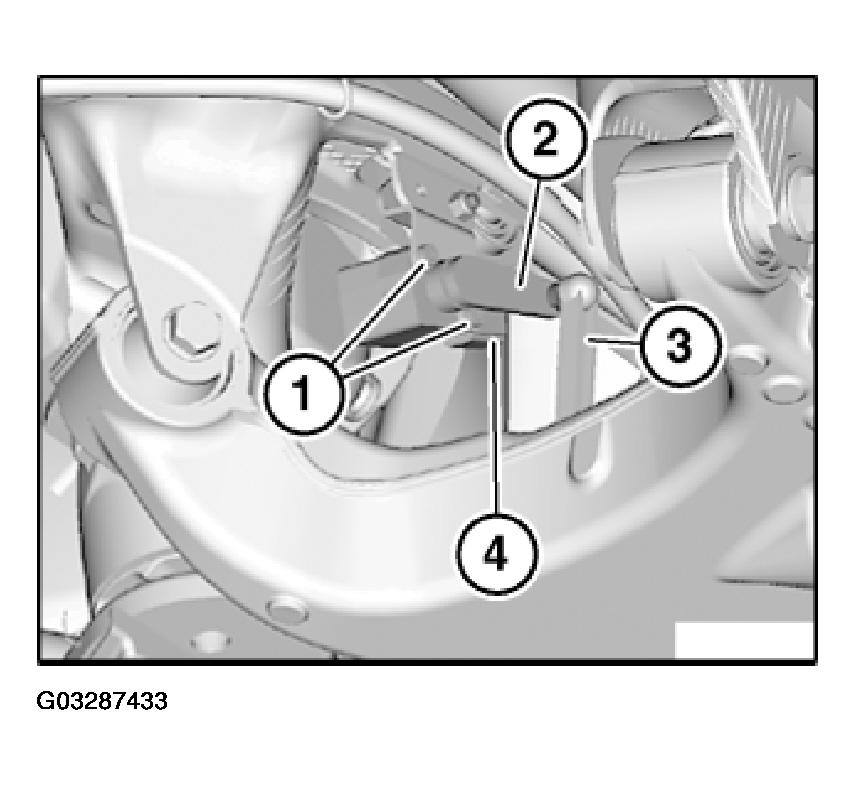

Fig 1: Removing Control Rod From Jointed Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut and remove control rod (3) from jointed rod (2).

Installation:

Replace self-locking nut.

Tightening torque 8 N.m.

Release screws (1).

Tightening torque 5 N.m.

Disconnect plug connection (4) and remove ride-height sensor.

Installation:

Jointed rod (2) must point from ride-height sensor to rear wheel.
