37 .. .. Overview of integrated suspension systems (rear axle)
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

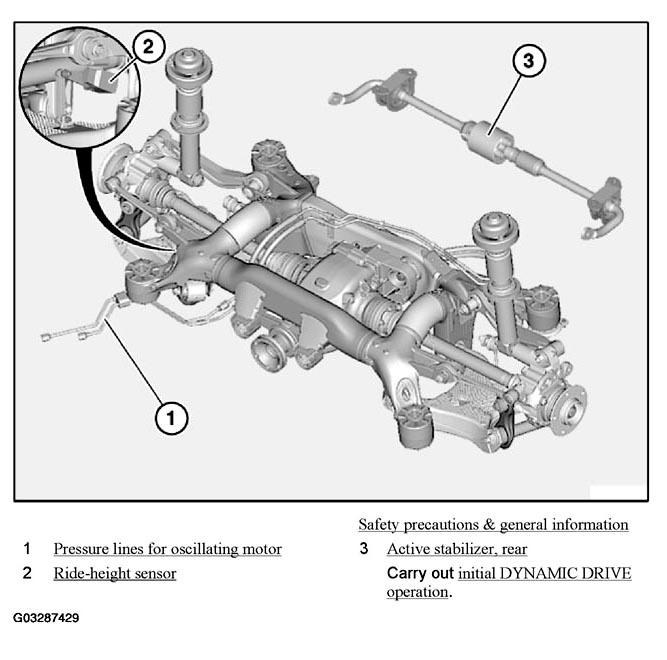

Fig 1: Locating Integrated Suspension Systems Components (Rear Axle)
