35 40 001 Removing and installing/replacing accelerator pedal module

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew screw.

Pull accelerator pedal module upwards out of fixture.

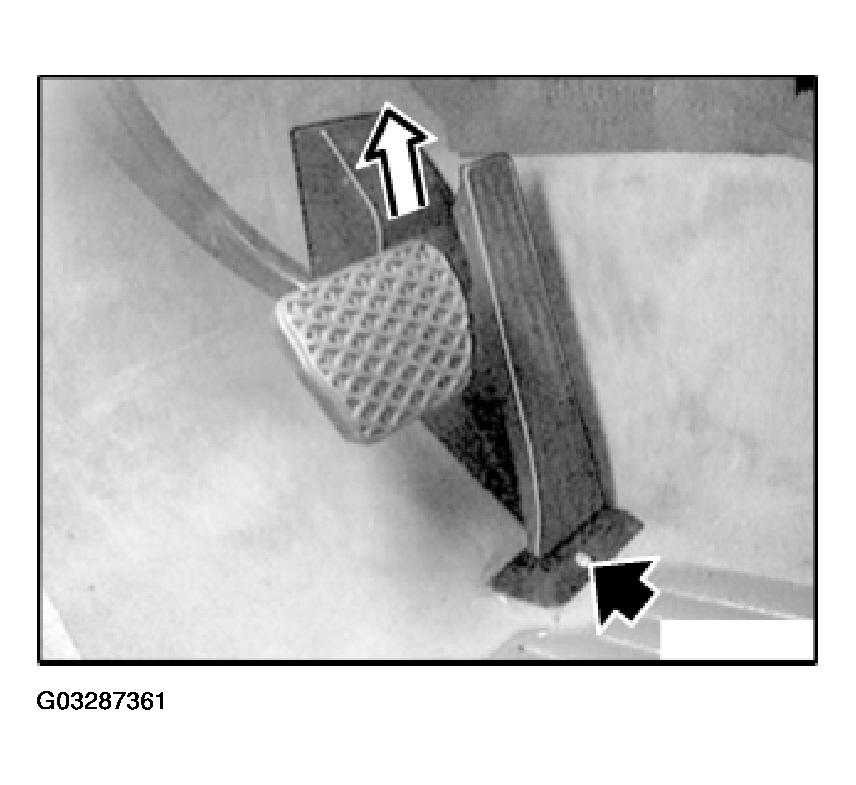

Fig 1: Removing Accelerator From Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 35 40 1AZ in , refer to 35 11 1AZ in PEDAL ASSEMBLY - TIGHTENING TORQUES - 645CI .

Pull off plug (1).

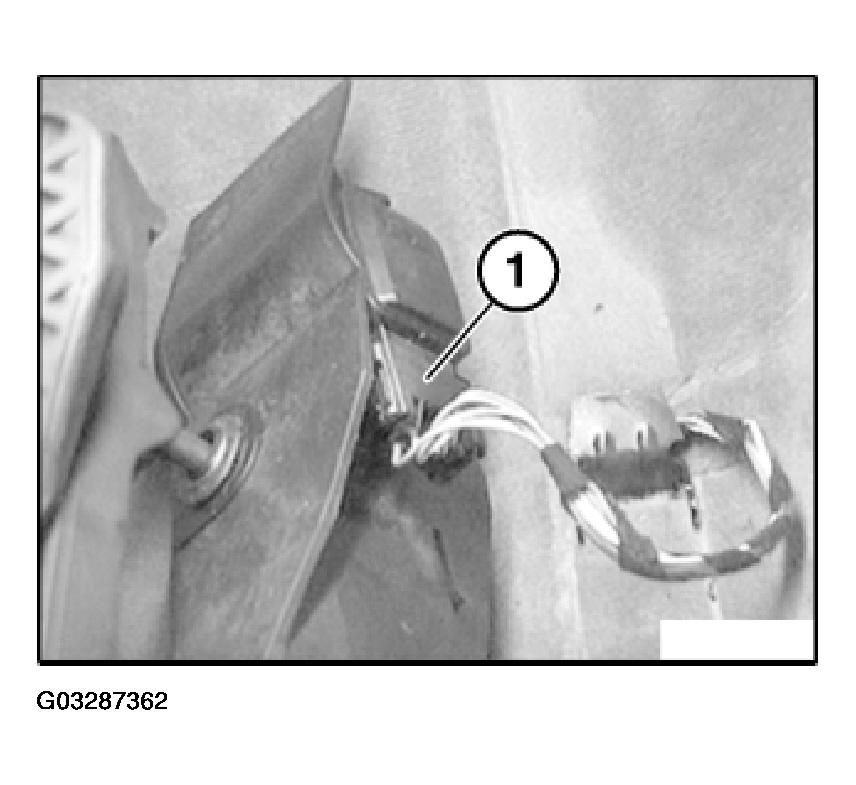

Fig 2: Removing Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Remove accelerator pedal module.

IMPORTANT: Accelerator pedal module can only be replaced completely with adapter plate.
