34 31 ... Overview of brake master cylinder / brake booster

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

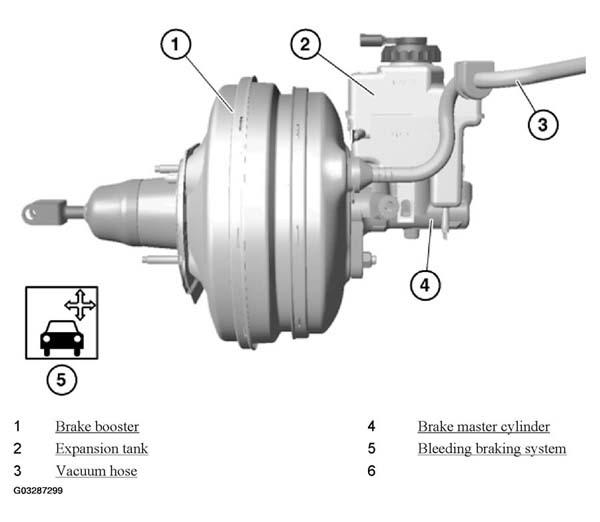

Fig 1: Locating Brake Master Cylinder/Brake Booster Components

Courtesy of BMW OF NORTH AMERICA, INC.
