Bleeding Rear-Axle Brake Circuit

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Connect bleeder hose with collecting tray to bleeder valve on rear right brake caliper.

Close bleeder valve.

Run through bleeding routine with BMW Diagnosis and Information System (DIS) with bleeder valve open.

After completing routine, press brake pedal 5 times to floor, clear and bubble-free brake fluid must flow out.

Close bleed valve.

Repeat procedure at rear left.

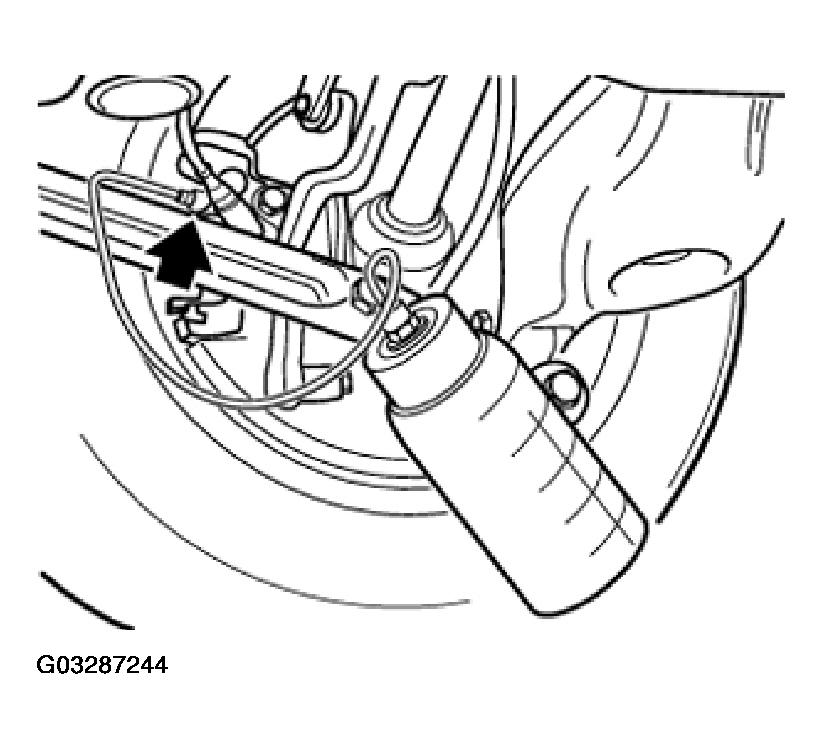

Fig 1: Connecting Bleeder Hose To Bleeder Valve On Rear Right Brake Caliper (DSC) (2 Of 2)
G03287244Courtesy of BMW OF NORTH AMERICA, INC.
