Bleeding Front-Axle Brake Circuit

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Connect bleeder hose with collecting tray to bleeder valve on front right brake caliper.

Close bleeder valve.

Run through bleeding routine with BMW Diagnosis and

Information System (DIS) with bleeder valve open.

After completing routine, press brake pedal 5 times to floor, clear and bubble-free brake fluid must flow out.

Close bleed valve.

Repeat procedure at front left.

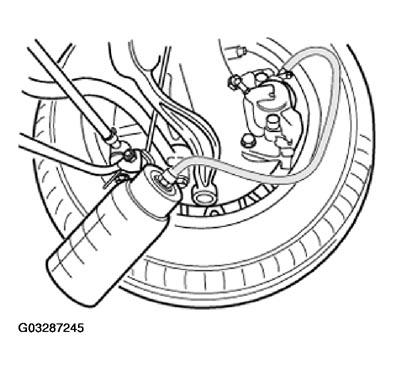

Fig 1: Connecting Bleeder Hose To Bleeder Valve On Front Right Brake caliper (DSC)

Courtesy of BMW OF NORTH AMERICA, INC.

Switch off brake fluid changer and remove from expansion tank. Check brake fluid level.

Close expansion tank.

NOTE: Pay attention to rubber seal (1) in sealing cap.

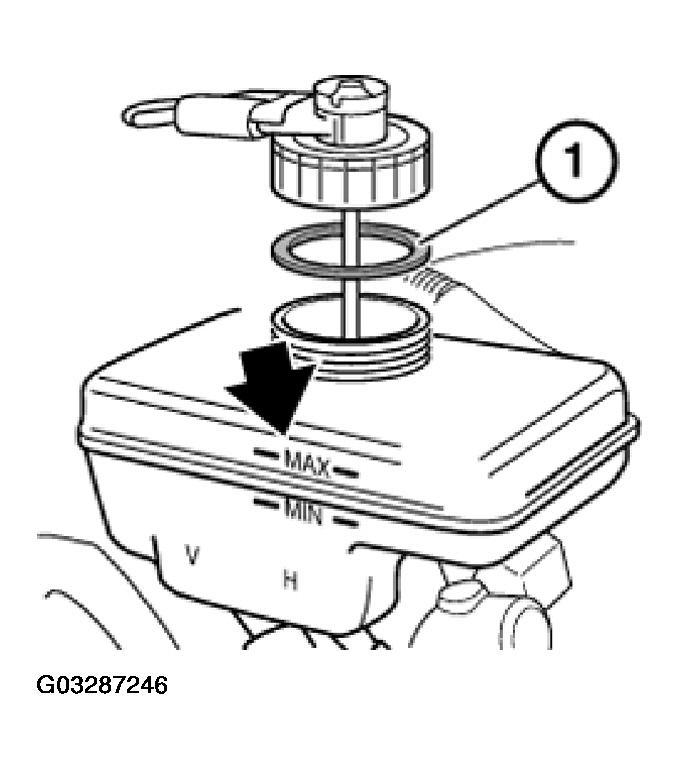

Fig 2: Locating Rubber Seal In Sealing Cap (DSC)

Courtesy of BMW OF NORTH AMERICA, INC.
