32 32 170 Removing and installing / replacing interlock cable (vehicles up to 09/2005)

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for storage tray
Remove front insert for ashtray

After installation:

Adjusting interlock cable.

Release screw (1) and remove bracket (2).

Move interlock cable (3) to left and then remove towards front.

If necessary, secure cord/cable to interlock cable (3).

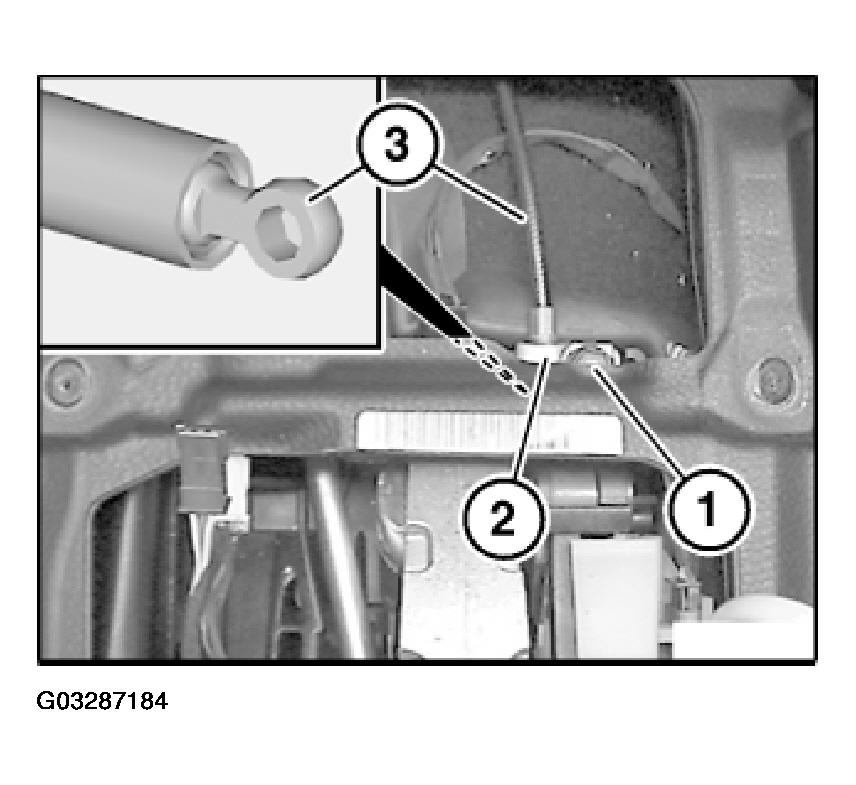

Fig 1: Releasing Screw Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not kink interlock cable.

Turn guide sleeve (1) through approx. 45°.

Remove interlock cable (2) from steering column and pull out.

If necessary, remove cord/wire from interlock cable (2).

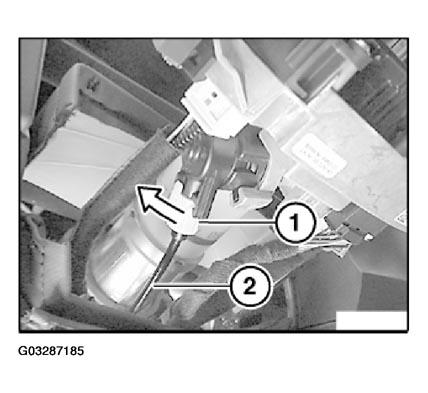

Fig 2: Removing Interlock Cable From Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Tie cord/wire to end of new interlock cable.
