32 41 ... Replacing level switch for Dynamic Drive fluid reservoir
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off pipe connections with plugs.
After installation:
- Fill and bleed hydraulic system, refer to 32 13 006 BLEEDING POWER STEERING UNIT .
- Check pipe connections for leaks
- If necessary, carry out initial operation for Dynamic Drive, refer to 37 10 001 INITIAL OPERATION WITH TEST RUN OF DYNAMIC DRIVE .
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid
Observe country-specific waste-disposal regulations
- Detach fluid reservoir from holder, raise and if necessary remove sideways

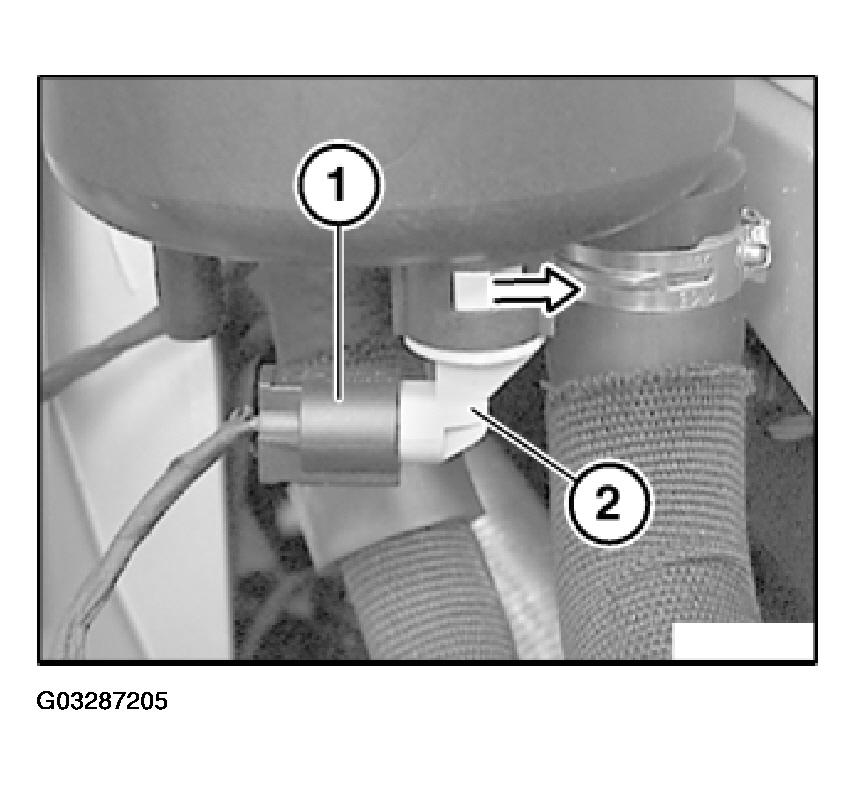

Disconnect connector (1).
Turn level switch (2) through approx. 45° and remove towards bottom.
