32 41 ... Instructions for using special tool 32 4 000

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 4 000
32 4 004
32 4 005
32 4 006
32 4 011
32 4 012

Depending on the pressure hose connection on the pump, the special tool 32 4 000 must be assembled.

1 = Connection, pump

2 = Connection, steering gear

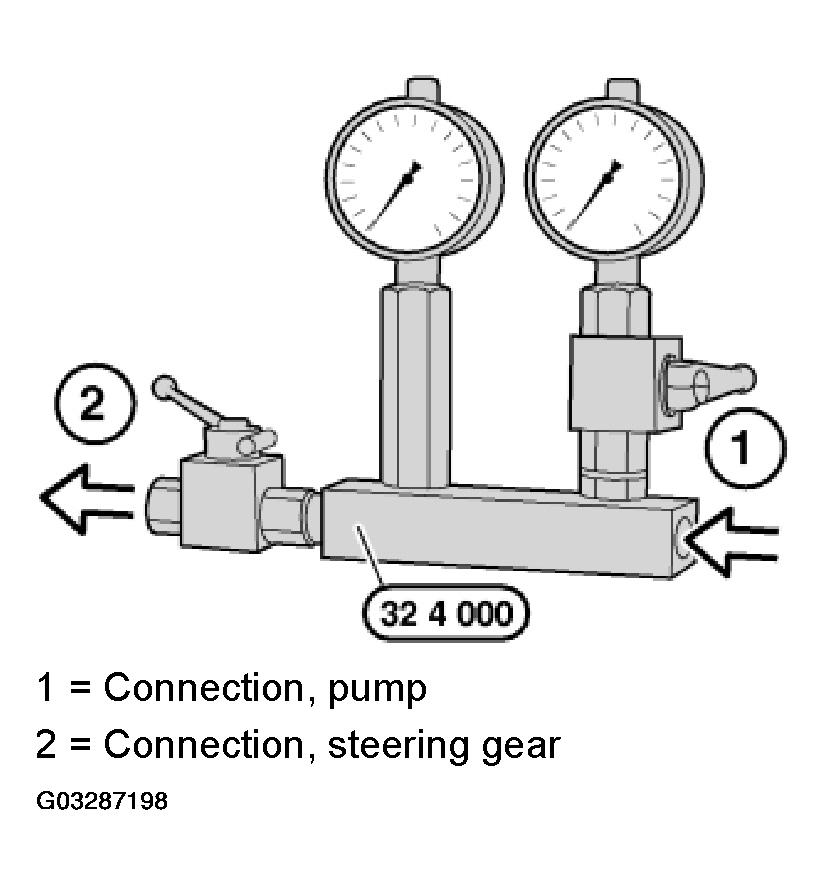

Fig 1: Identifying Special Tool (1 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M14 x 1.5 banjo bolt:

Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.

Screw special tool 32 4 011 onto pump and connect special tool 32 4 004.

Screw special tools 32 4 006 / 32 4 012 onto special tool 32 4 000 and connect pressure hose with M14 x 1.5 banjo bolts and 2 sealing rings.

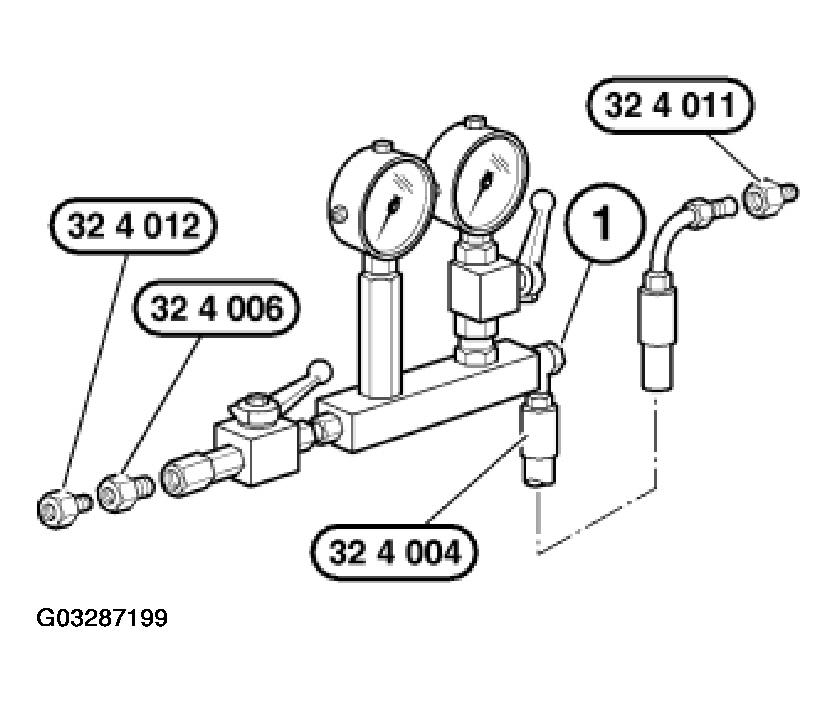

Fig 2: Identifying Special Tool (2 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M16 x 1.5 banjo bolt:

Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.

Screw special tool 32 4 005 onto pump and connect special tool 32 4 004.

Screw special tool 32 4 006 onto special tool 32 4 000 and connect pressure hose with M16 x 1.5 banjo bolt and 2 sealing rings.

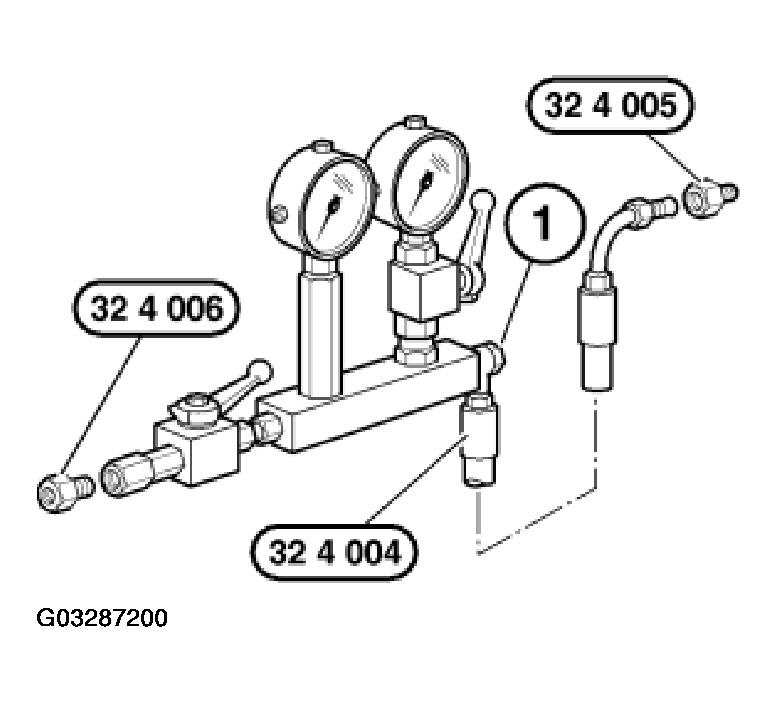

Fig 3: Identifying Special Tool (3 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure hose connection to pump with M16 x 1.5 union screw:

Screw special tool 32 4 004 with M14 x 1.5 banjo bolt (1) and 2 sealing rings to special tool 32 4 000.

Connect special tool 32 4 004 to pump.

Screw special tools 32 4 006 / 32 4 005 onto special tool 32 4 000 and connect pressure hose.

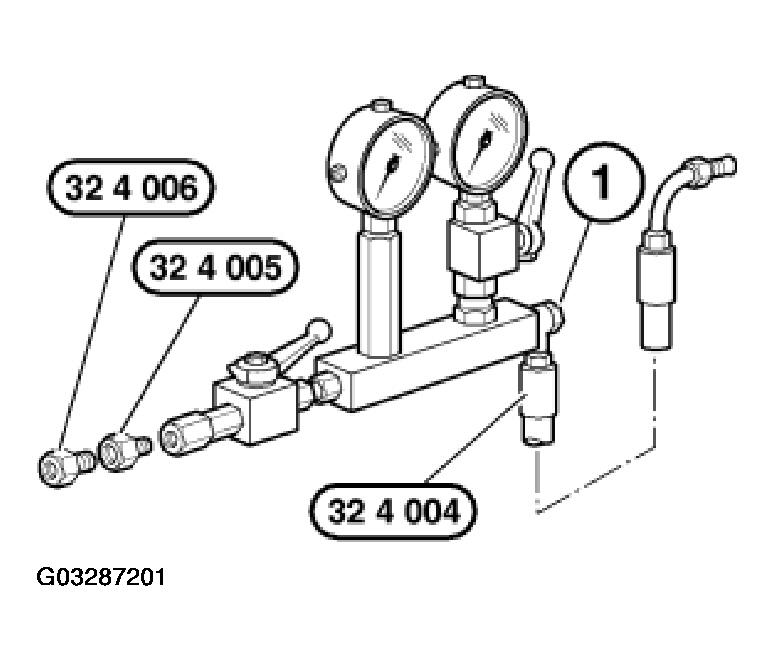

Fig 4: Identifying Special Tool (4 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.
