32 41 ... Instructions for removing and installing ear clips

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 1 260

NOTE: The work steps are show on assorted components. Ear clip must always be replaced.

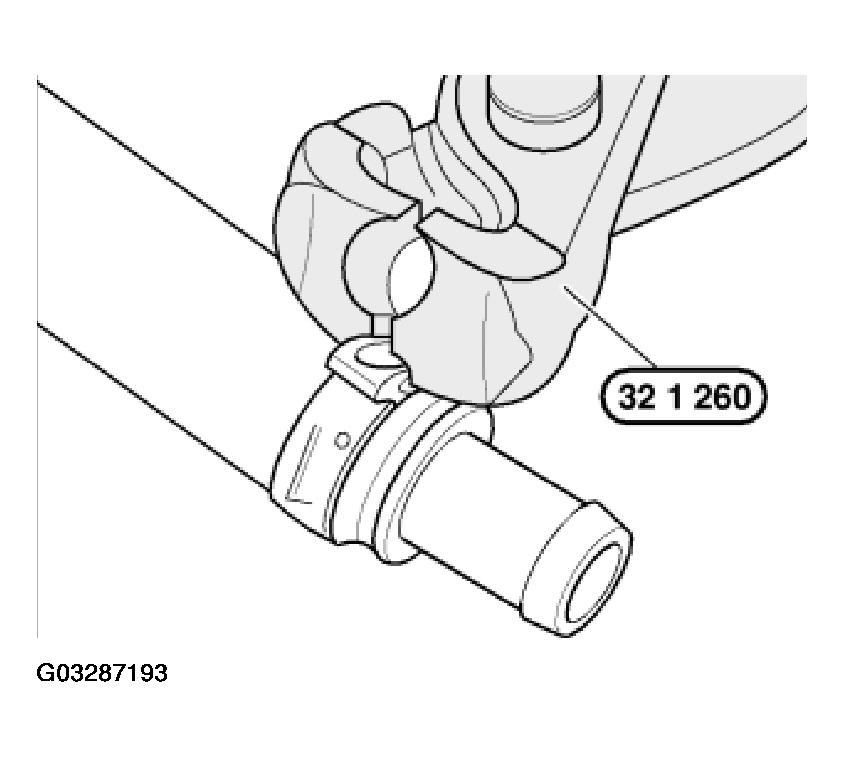

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

Fig 1: Removing An Ear Clip

G03287193

Courtesy of BMW OF NORTH AMERICA, INC.

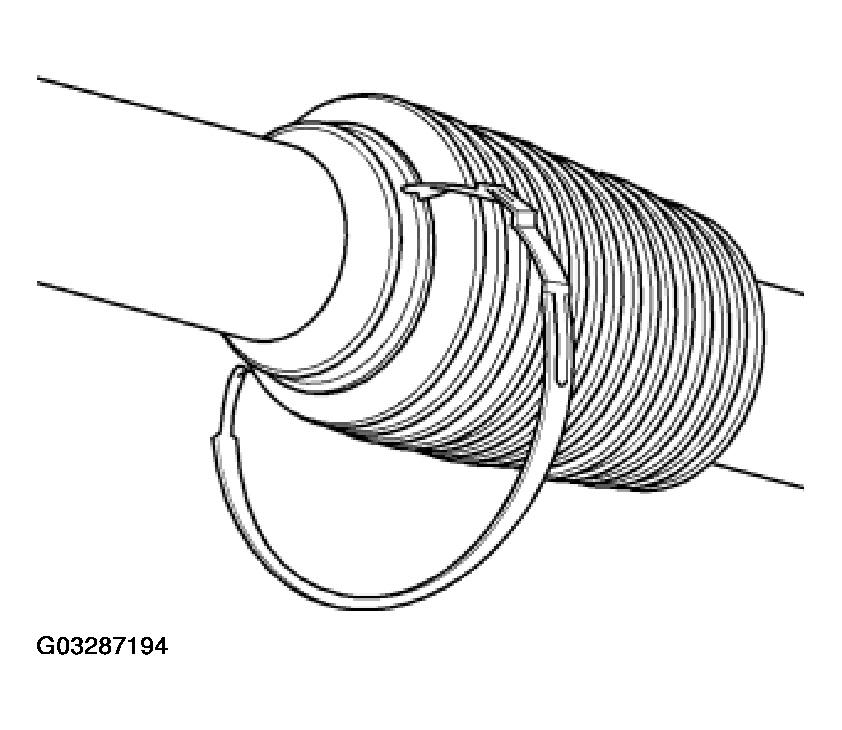

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

Fig 2: Identifying Earclip

G03287194

Courtesy of BMW OF NORTH AMERICA, INC.

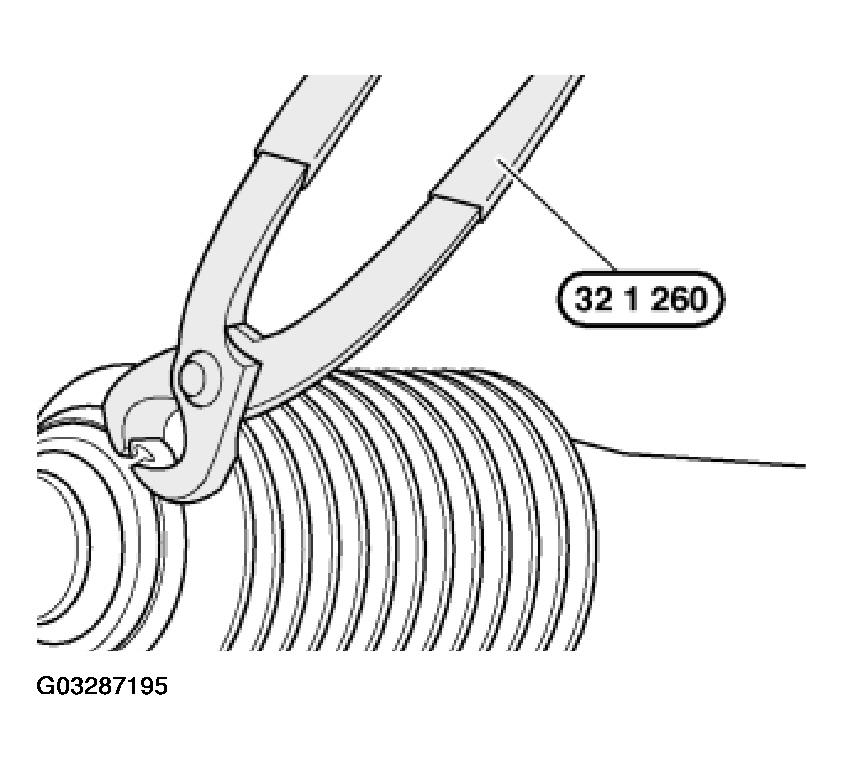

Attach hook fastener and press ear together with special tool 32 1 260.

Fig 3: Attaching Hook Fastener And Press Ear With Special Tool 32 1 260

G03287195

Courtesy of BMW OF NORTH AMERICA, INC.

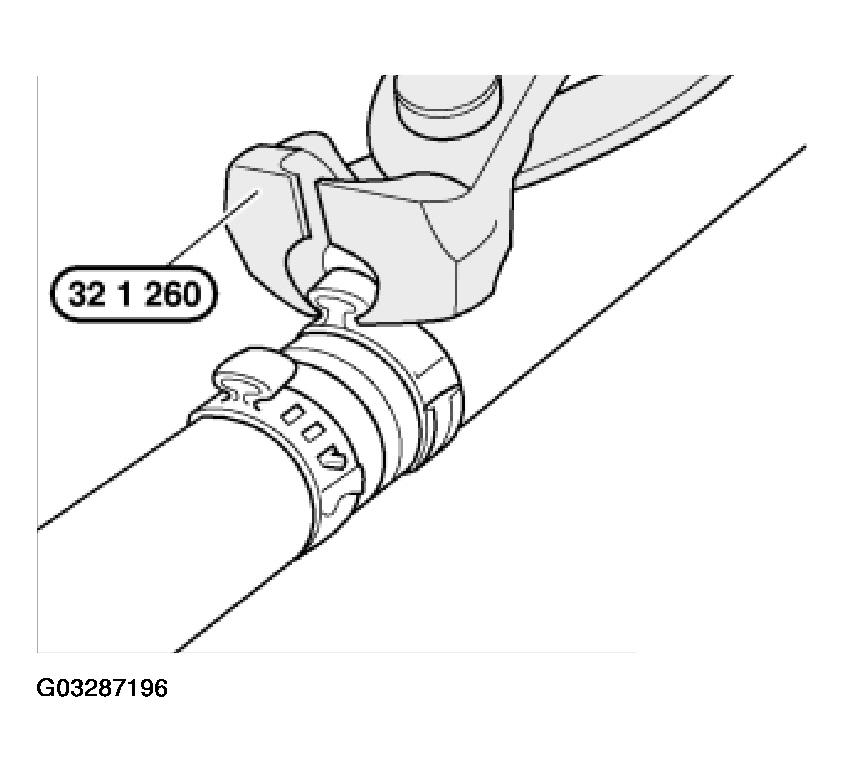

Side cutter of special tool 32 1 260 can be used in areas which are difficult to access.

Fig 4: Identifying Side Cutter Of Special Tool 32 1 260

G03287196

Courtesy of BMW OF NORTH AMERICA, INC.

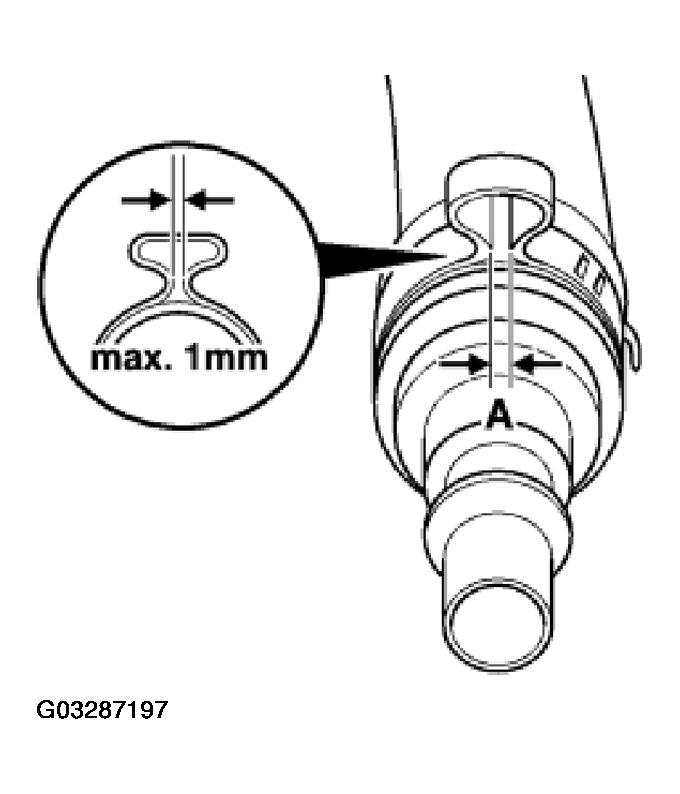

IMPORTANT: Gap (A) max. 1 mm!
